Best selling Lab power supply from Voltcraft
On this page you'll find a ranking of the best Voltcraft products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Voltcraft Power supply unit
The powerful power supply is primarily switched and therefore very compact. The output voltage can be tapped at the front up to 5 A and at the back up to 60 A.
2. Voltcraft Linear laboratory power supply unit
Electronically stabilized laboratory power supply unit with separate voltage and current regulators. The current limitation can be preset without a short-circuit bridge at the output. The LPS series is actively ventilated.

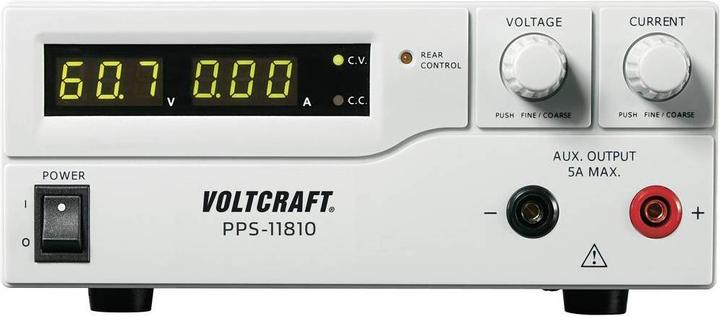

3. Voltcraft Laboratory power supply, adjustable PP
The PPS series laboratory power supply serves as a potential-free DC voltage source for operating low-voltage consumers. The adjustable output can be accessed from the front up to a maximum of 5 A and from the rear up to the full rated current (1 - 18 V/DC / 0 - 10 A). Connections are made at the front via 4 mm safety sockets and at the rear via high-current screw terminal sockets. Voltage and current settings are made continuously using digital rotary controls with coarse and fine adjustments to allow for quick and precise value settings. The values are displayed on a clear display. The current limit for constant current operation can be preset without a short-circuit bridge. Three freely programmable memory slots can be assigned different fixed voltages and current limits. Additionally, the power supply can be controlled via the included software and USB connection for operating cyclical processes through a PC. Up to 20 programmable voltage and current sets with varying durations can be programmed for operation. The cyclical processes can be repeated up to 999 times. Special feature: programmable.
4. Voltcraft VLPUSB Laboratory power supply
The linear regulated laboratory power supply provides distortion-free voltage across all load ranges and additionally features USB outputs for development, quality assurance, and charging processes. It is suitable for all laboratory applications where switch-mode power supplies reach their physical limits. The device is robust, short-circuit proof, overvoltage protected, and has a temperature shutdown feature.
USB Test and Development Socket: With the VOLTCRAFT VLP-1405 USB, a connected USB device can be stressed. More and more devices with USB host connections are being developed. Devices to be tested should be able to handle USB ports that do not always comply with USB specifications. The VLP-1405 USB has this test and development socket built-in.
USB Current Limiter: A freely adjustable current limiter in the USB test socket simulates a USB connection that provides less than 500 mA. This allows testing of USB sticks to see if they can operate with lower power.
USB Under and Overvoltage: The USB voltage at the test socket can be continuously adjusted from 3.9 V to 6.2 V. At 5.1 V, the potentiometer clicks into place. For safety, the overvoltage mode must be activated separately. An undervoltage can be set at any time.
Precise Laboratory Voltage Adjustment: The 10-position potentiometer facilitates the exact adjustment of the output voltage from 0 to 40 V.
Silent Cooling: Unlike switch-mode power supplies, linear regulated power supplies need to be properly cooled. The VLP-1405 USB features oversized passive heat sinks. Fans are not necessary, and there is sufficient thermal reserve to fully load the laboratory power supply.
QuickCharge 2.0 Charging Socket: In addition to the USB test and development socket, another USB charging socket is built-in. Mobile devices or laboratory devices with USB power supply can be easily powered in everyday laboratory use. Special feature: OVP.
5. Voltcraft High-Power Laboratory Power Supply HPS-16010
The powerful power supply is primarily switched and therefore very compact. The output voltage can be accessed at the front via 4 mm safety sockets up to 5 A and at the rear high-current output up to the maximum current.

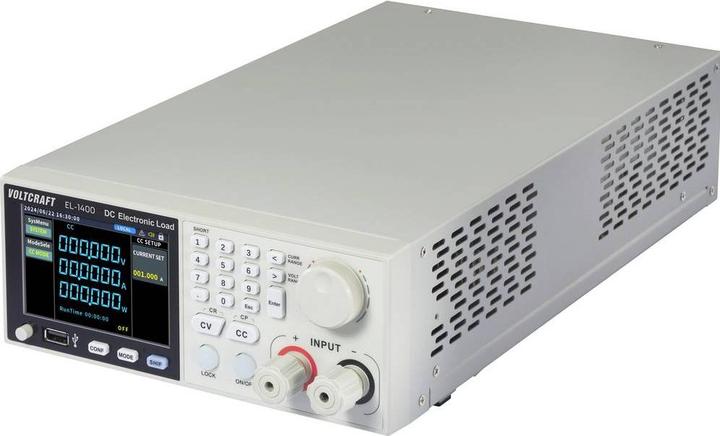

6. Voltcraft EL-1400 Elektronische Last 150 V/DC 40 A 400 W
High-precision load simulation for power sources. The Voltcraft EL-1400 DC is suitable for a variety of applications such as testing power supplies, batteries, or chargers. It offers load regulation in Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP) modes. Additionally, features like dynamic current testing up to 10 kHz and remote compensation are integrated. There is 1 output available, with load values adjustable up to a maximum of 150 V, 40 A, and 400 W.
Safe operation. To ensure safe operation, the Voltcraft EL-1400 DC is protected against overvoltage, overload, overperformance, and overheating. The parallel control supports up to 10 devices and is also suitable for potentially high-power applications.
Convenient evaluation. All data is displayed on a clearly readable 10 cm (3.9 inch) TFT LCD color display. Furthermore, a USB port and an RS232 standard interface for SCPI protocols are available.
Mounting and accessories. For stand-alone operation, the Voltcraft EL-1400 DC is equipped with foldable stand feet. For rack mounting, the power supply requires two height units at half rack width. Along with the device, a power cable, a user manual, and a safety data sheet are included.

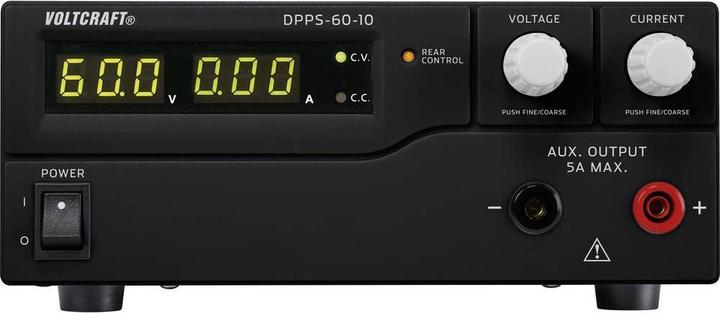

7. Voltcraft Laboratory power supply, adjustable DP
The powerful power supply is primarily switched and therefore very compact. The output voltage can be accessed on the front via 4 mm safety sockets up to 5 A, and at the rear high-current output up to the maximum current. Special feature: programmable.
8. Voltcraft Stabilisiertes Netzgerät
This stabilised, linear power supply unit offers you an adjustable output voltage range of 3 to 15 V/DC. It can also handle continuous loads of up to 15 or 25 A. The device is therefore particularly suitable for supplying radio stations and high-power consumers. Maximum safety: The integrated electronic current limitation and temperature monitoring protect the power supply unit against overload and short circuits in critical operating states. Output voltage and output current are displayed via the built-in analogue instruments. An LED indicates when the device is overloaded.
9. Voltcraft LSP-2165 19 inch laboratory power supply, adjustable 0.1 - 36 V/DC 0.01 - 5A 80W slim design
Power supply with adjustable current limitation. In development, training, and service areas, reliable power supplies are essential for providing adjustable voltages for system tests, for example. The compact Voltcraft LSP-2156 laboratory power supply can also be used in space-restricted situations due to its slim design. It features an LED function indicator and a rotary switch for current and voltage adjustment. The maximum output power is 80 watts. In addition to the power supply, a power cable and the manual are included in the delivery.
Lab power supply
−13%
EUR143,69 was EUR164,29
Voltcraft LSP-2165 19 inch laboratory power supply, adjustable 0.1 - 36 V/DC 0.01 - 5A 80W slim design
10. Voltcraft Laboratory power supply, adjustable

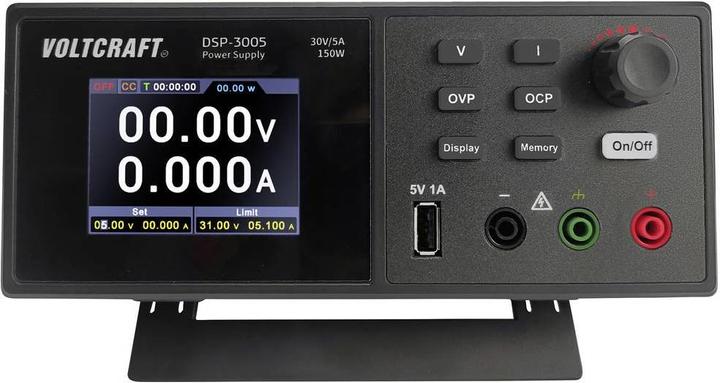

The VOLTCRAFT DSP-3005 laboratory power supply is a versatile and powerful device designed for various applications in laboratories and technical environments. With an adjustable output voltage ranging from 0 to 30 volts and a maximum output current of 5 amperes, this power supply provides up to 150 watts of power. It is ideal for powering electronic circuits, testing, and experiments. The device features a USB 2.0 interface that allows for remote control, making operation and integration into automated systems easier. Its compact design and robust construction make it a reliable choice for professionals and technology enthusiasts.
- Adjustable output voltage from 0 to 30 V
- Maximum output current of 5 A
- USB 2.0 interface for remote control
- Robust construction for use in laboratory environments.
