Best Wago products in the Electronics modules category
On this page you'll find a ranking of the best Wago products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

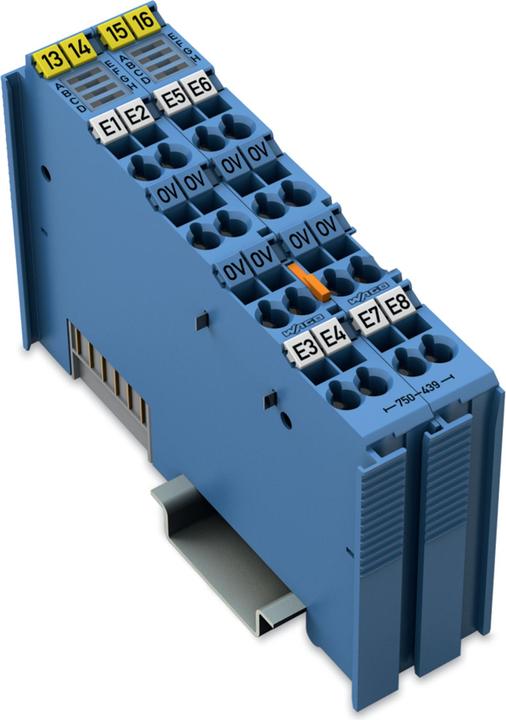

1. Wago Digital input terminal
8-channel digital input NAMUR intrinsically safe. The digital input module captures binary signals from sensors used in the explosion-hazardous areas of Zone 0+1 and allows for channel-specific short circuit and wire break diagnostics.
NAMUR sensors, optocouplers, mechanical contacts, or other actuating elements can be connected in an intrinsically safe manner. The process image allows for the specification of the sensor type (normally open or normally closed) and the disabling of diagnostics (e.g., for contact monitoring, to suppress LED diagnostics).
The installation of the WAGO I/O System 750/753 must take place either in Zone 2 or in a non-explosion-hazardous area.
The power supply for the sensor is provided by a short-circuit-proof 8.2V power source.
Indicators: Green LED (Signal state On). Red LED (Short circuit). Red LED, blinking (Wire break).
Field and system levels are galvanically isolated.
2. Wago 750-489 4-channel 750-489 analogue input for RTD sensors and
4-channel analog input for resistance sensors/thermocouples/resistance bridges (strain gauges) 16 Bit diagnostic intrinsically safe. The analog input module allows for the direct connection of resistance thermometers, thermocouples, millivolt transmitters, resistors, resistance bridges (strain gauges), potentiometers, and NTC thermistors from hazardous areas of zones 0 and 1. The cold junction compensation for each channel is located within the module. The installation of the WAGO I/O System 750 must take place either in zone 2 or in a non-hazardous area. The supply voltage of 24 V is fed through the power contacts. The shield connection is directly routed to the mounting rail. Parameterization is done via GSD file, e!COCKPIT, or WAGO-I/O-CHECK.
Indicators: Green LED (operational readiness on/off). Red LED (underflow, overflow, exceeding/falling below the measurement range).
Field and system levels are galvanically isolated. The channels are functionally galvanically isolated from each other.
Electronics modules
EUR1059,–
Wago 750-489 4-channel 750-489 analogue input for RTD sensors and
Electronics kit

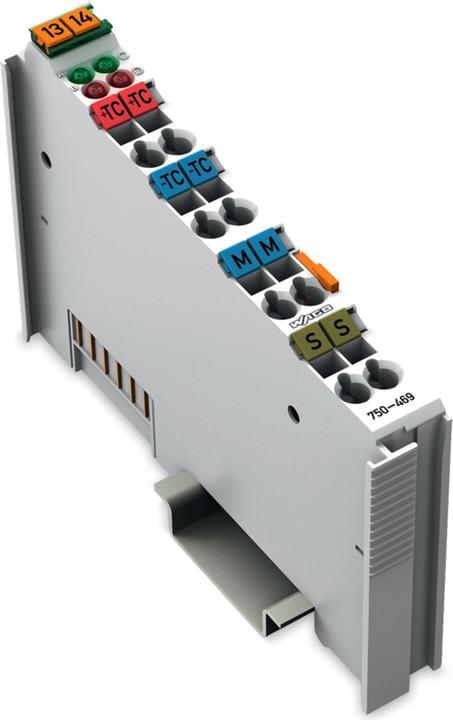

3. Wago Analogue I/O module DC Series 750 24V 750-469
2-Channel Analog Input Thermocouple K Diagnosis The analog input module allows for the direct connection of two thermocouples. The operation of grounded sensors is possible due to the internal galvanic isolation. The module handles linearization across the entire temperature range. To compensate for the error voltage at the terminal in the range of 0 to 55 °C, cold junction compensation is performed using comparative measurement. A broken wire is indicated by a red error LED. The green LED indicates operational readiness and trouble-free communication with the bus coupler. The shield connection is directly routed to the mounting rail.

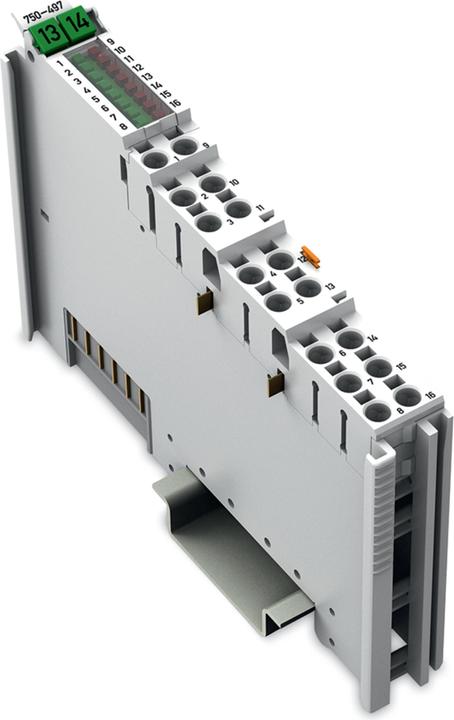

4. Wago Analogue input terminal
8-channel analog input DC 0 10 V/±10 V single-ended. The analog input module processes signals of the standardized ranges DC 0 10 V and DC ±10 V. The input signal is transmitted galvanically isolated to the system level with a resolution of 12 bits. An over/under range condition is indicated by a red error LED. Unused channels can be disabled. The module is freely configurable via WAGO-I/O-CHECK and GSD files. It is characterized by high compactness and low measurement error.

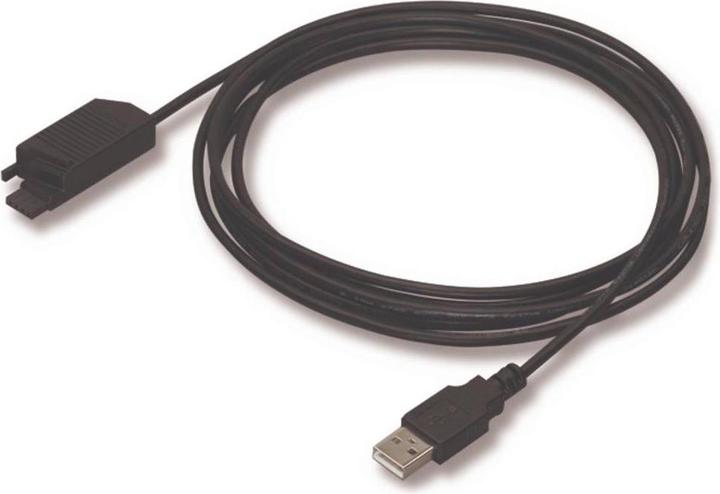

5. Wago USB communication cable
The Wago USB communication cable is a specialized configuration cable designed for automation technology. With a length of 5 meters, it enables a reliable connection between various automation devices and systems. This cable is particularly useful for programming and configuring PLC systems, as it ensures simple and efficient data transfer. The USB connection provides user-friendly handling and compatibility with common devices. Made in Germany, the product stands for high quality and durability, making it a valuable addition to any automation application.
- Transmission type: USB for fast data transfer
- Compatible with WAGO PLC systems
- Made in Germany for high quality.

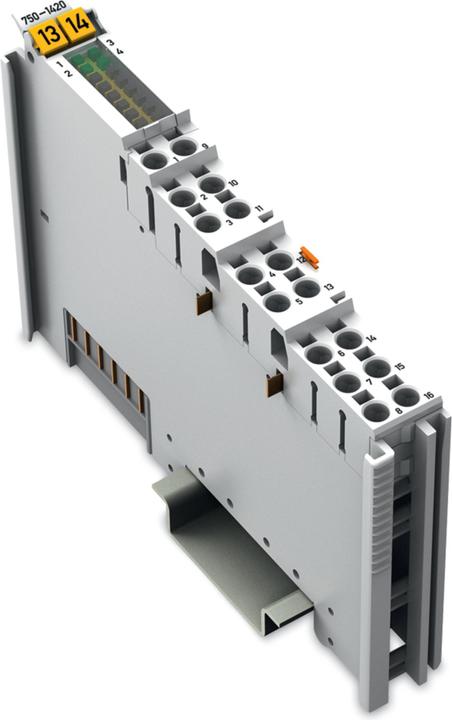

6. Wago I/O input terminal
4-Channel Digital Input
DC 24 V
3 ms
3-Wire Connection
The digital input module features 4 channels in a 3-wire connection technology with a compact width of only 12 mm. It captures binary control signals from the field, such as those from sensors, transmitters, switches, or proximity switches. The module is equipped with Push-in CAGE CLAMP connections, allowing for the direct insertion of single-core conductors. Each input channel is equipped with an RC filter for noise suppression, featuring a time constant of 3.0 ms. The signal state of each channel is indicated by a green status LED. The field and system levels are galvanically isolated from each other. A tool with a 2.5 mm blade is required to open the Push-in CAGE CLAMP connections.
7. Wago Honeycomb
WAGO GmbH & Co. KG Honeycomb 80-pole 726-721
Manufacturer: WAGO GmbH & Co. KG
Designation: Honeycomb 80-pole (3X1.5/3X1.5) G/W1-80
Type: 726-721
Supported protocols:
- TCP/IP: No
- PROFIBUS: No
- CAN: No
- INTERBUS: No
- ASI: No
- KNX: No
- MODBUS: No
- Data-Highway: No
- DeviceNet: No
- SUCONET: No
- LON: No
- SERCOS: No
- PROFINET IO: No
- PROFINET CBA: No
- Foundation Fieldbus: No
- EtherNet/IP: No
- AS-Interface Safety at Work: No
- DeviceNet Safety: No
- INTERBUS-Safety: No
- PROFIsafe: No
- SafetyBUS p: No
- Other bus systems: No
Bluetooth radio standard: No
WLAN 802.11: No
Radio standard GPRS: No
Radio standard GSM: No
Radio standard UMTS: No
IO-Link master: No
System component: No
With electrical isolation: No
Fieldbus connection via separate bus coupler possible: No
Mounting rail installation possible: No
Wall/direct installation possible: No
Front installation possible: No
Rack mounting possible: No
Suitable for safety functions: No
Associated equipment (Ex ia): No
Associated equipment (Ex ib): No
Explosion protection category for gas: None
Explosion protection category for dust: None
Dimensions:
Width: 107.9 mm
Height: 132 mm
Depth: 36.5 mm
Further details:
Jumper honeycomb 80-pole imprint 1-80 chamber colors grey/white chamber marking side 1 and 2 vertical 1.50 mm² dark grey.
EAN: 4044918455626.

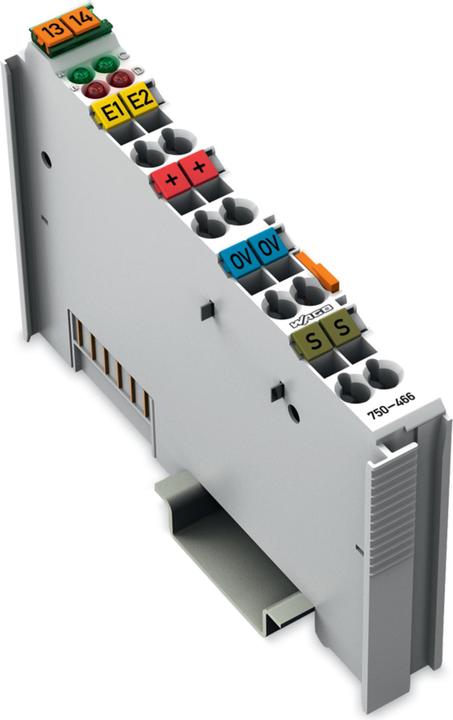

8. Wago Analogue I/O module DC Series 750 24V 750-466
The analog I/O module DC Series 750 24V 750-466 from Wago is a highly advanced electronic module designed for precise analog signal processing. With two channels, it enables the capture and processing of analog input signals with a resolution of 12 bits. The module is suitable for use in industrial applications and offers a high isolation of 0.5 kV, enhancing safety and reliability in demanding environments. The operating voltage ranges from 24 VDC, making it a flexible solution for various systems. The module is designed for mounting on DIN rails and complies with relevant standards, including CE and UL. With an operating temperature range of 0 °C to 55 °C, it is suitable for a variety of environments and provides robust performance.
- Two analog inputs with a resolution of 12 bits
- Isolation of 0.5 kV for increased safety
- Operating temperature range of 0 °C to 55 °C
- DIN rail mounting for easy installation
- Compliance with CE and UL standards.

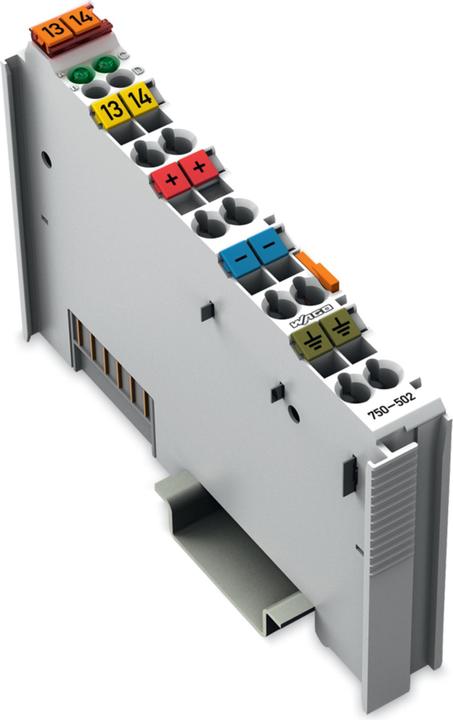

9. Wago Digital I/O module DC Series 750 18-31.2V 750-502
This digital output module transmits control signals from the automation device to the connected actuators. All outputs are short-circuit protected. Field and system levels are electrically isolated.
10. Wago Analogue I/O module DC Series 750 24V 750-478
WAGO 750-478 Input terminal 2-channel.
