Electronics modules
EUR552,66
Aaeon PER-TAIX4-A10-PCIE - AI Core PCIx4 with 2x 2280 M.2 module (4MYDX), fan
Best Aaeon products in the Electronics modules category
On this page you'll find a ranking of the best Aaeon products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Aaeon PER-TAIX4-A10-PCIE - AI Core PCIx4 with 2x 2280 M.2 module (4MYDX), fan
The AAEON PER-TAIX4-A10-PCIE is a highly advanced electronic module specifically designed for applications in the field of artificial intelligence. This PCIe (x4) card accommodates up to four AI Core XM 2280 plug-in modules, allowing for flexible adaptation to the specific requirements of your project. With the option to choose between 4x or 8x Intel(R) Movidius(TM) Myriad(TM) X VPUs, users can scale performance accordingly. The module supports popular frameworks such as TensorFlow and Caffe, facilitating integration into existing systems. The minimum system requirements include an x86_64 operating system, Ubuntu 16.04, an mPCI-E slot, and sufficient RAM and storage space. This product is ideal for developers looking to implement powerful AI applications.
- Enables the use of up to 4 or 8 Myriad X VPUs for scalable AI applications
- Compatible with popular AI frameworks such as TensorFlow and Caffe
- Designed for use in x86_64 systems with Ubuntu 16.04
- Offers flexible expansion through 2x 2280 M.2 slots.
2. Aaeon EP-CBUSB10PFL01 - USB 2.0 Pin Header Cable
AAEON EP-CBUSB10PFL01 - USB 2.0 Pin Header Cable
With this cable, you can connect USB devices internally to the motherboard.
3. Aaeon EP-UPSUSVUPSHAT - UPS and Wide Range DC-in HAT
AAEON EP-UPSUSVUPSHAT - UPS and Wide Range DC-in HAT
The ideal UPS for all UP boards, featuring an integrated and adjustable charger. It includes useful and innovative additional functions, making it perfectly suited for complex work in an extended voltage range.
The S.USV UPS is a fully functional plug-and-play solution. Power is supplied directly through GPIO on the UP board, utilizing a common voltage source, which eliminates the need for additional cabling or power supplies. Additionally, the module is equipped with a LiPo battery. An integrated boost switching power converter covers the necessary voltage range, ensuring the UP board shuts down safely in case of malfunction to prevent data loss.
The S.USV UPS also provides a power input for an extended voltage range of 7 to 24 volts, suitable for solar cells, automotive applications, and more.
To ensure uninterrupted power supply to the UP board, the S.USV UPS features a fully integrated monitoring system with a wide range of operating options. All possible operating states of the UP board are monitored internally, allowing the module to respond appropriately to malfunctions.
All these features operate automatically. Additionally, users can check and control all operating states or switch operations using software, including mobile applications via smartphone or tablet.
Included:
- S.USV UPS (UPS module)
- LiPo battery with 300 mAh
- PicoBlade cable (power on button)
- Mounting kit
- Plug and play: yes
- Power supply: 5 volts / 2500 mA
- Extended voltage range: 7-24 volts / 5000 mA
- Interfaces: IC
- ID EEPROM: yes
- Monitoring system: yes
- LiPo battery: yes
- Battery management: yes
- Battery monitoring: yes
- Real-time clock: yes
- Supply switch: yes
- Compatibility: all UP boards
- Dimensions: 65 x 56.5 mm.

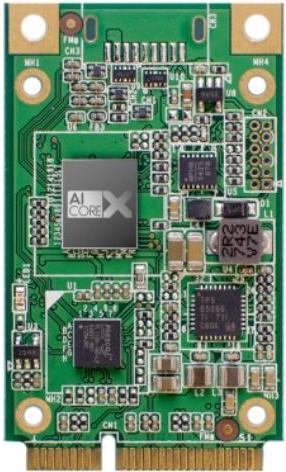

4. Aaeon PER-TAICX-A10-001 - UP AI Core X mPCIe, 30 mm Heatsink
AAEON - UP AI Core X mPCIe, 30 mm Heat Sink
The UP AI Core X is a complete product line of neural network accelerator units for edge devices. Whether the automation you create is meant to identify and evaluate items in a shopping cart, alert airport security personnel to unattended luggage, or monitor traffic jams for an autonomous vehicle - with AI Core X, you can integrate the real-time computing power you need right where you need it.
Cloud computing is suitable for many things, but not for real-time edge applications with strict latency, bandwidth, security, and reliability constraints. Sometimes, the only solution is to accommodate data processing alongside data collection. This means cloud computing is not feasible. Fortunately, there is another option. With up to four trillion operations per second (TOPS) and a Neural Compute Engine that can deliver up to one TOPS with only a few watts of power, AI Core X is perfect for heavy tasks in any edge application.
The AI Core X is based on the recently introduced Intel Movidius Myriad X, a third-generation Vision Processing Unit (VPU) that is the first of its kind to include a Neural Compute Engine - a dedicated hardware accelerator for neural networks, trainable with industry-standard tools.
AI Core X is available in various form factors. You can choose between MiniCard/mPCIe, M.2 2230, M.2 2242, or M.2 2280.
It is compatible with UP Squared Boards and all SBCs with a miniPCIe interface.
Model: UP AI Core X
VPU: Intel Movidius Myriad X 2485
Number of VPUs: 1
Form Factor: mPCIe
Dimensions: 30 x 51 mm
Supported Frameworks: Caffe, TensorFlow
Memory: 4 GB LPDDR4
Cooling: Fanless Heat Sink
System Requirements: x86_64...
5. Aaeon RE-WFKIT-9260NVP - UP Squared Wi-Fi Kit
RE-WFKIT-9260NVP - UP Squared Wi-Fi Kit
New M.2 2230 Wi-Fi kit for UP Squared metal chassis with Intel(R) Wireless-AC 9260 module, 802.11AC, 2x2 AC+BT, M.2 2230, no vPro plus 2x external antennas, 2x RF cables and integrated 2,4/5 GHz antennas.
6. Aaeon EP-FNDCACTCLUPS - Active Cooler (Fan) for the UP Squared
AAEON UPS-APL01-COOLER-A01 - Active cooler (fan) for the UP Squared
Get the best performance from the UP Squared by using the active cooler.
Are you running heavy graphic programs? The active cooler is a solution for you to achieve optimum thermal performance.
- Rated voltage: 5 VDC
- Operating voltage: 4.5 - 5.5 VDC
- Starting voltage: 4.5 V
- Rated current: 0.25 A max, 0.32 A
- Power input: 1.25 W max, 1.6 W
- Fan speed: 4500 +/- 10% RPM
- Air flow: 9.58 CFM
- Noise: 28 dB-A
- Bearing type: EBR
- Fan dimension: diameter 46.4 x 11
- Heatsink dimension: 70 x 63.3 x 14.5
- Heatsink material: Aluminum
- Weight: 88 g.
7. Aaeon EP-FMWFKITUPC01 - External Wi-Fi Kit, 2.4/5 GHz, 2 dBi, UP Core
AAEON EP-FMWFKITUPC01 - External Wi-Fi Kit, 2.4/5 GHz, 2 dBi, UP Core
This Wi-Fi kit includes an antenna for the 2.4 GHz and 5 GHz bands and a matching 10 cm long pigtail with a 1.13 mm coaxial cable, as well as SMA and U.FL/IPEX connectors. The kit can be used, among other things, with the UP Core Board.
Frequency range: 2400 MHz - 2500 MHz, 5150 MHz - 5875 MHz
Gain: 2 dBi
VSWR: 2.0:1 max.
Polarization: Linear, vertical
Power consumption: 2 W (cw)
Impedance: 50 Ohm
Connector: RP-SMA plug
Temperature: -10 °C to +55 °C
Humidity: 95% at 25 °C
Color: Black.
