Zotac ZBOX CI669 nano
Intel Core i7-1355UPrice in EUR including VAT
free shipping
The Zotac ZBOX C Series CI669 nano delivers even more performance with a 13th generation Intel Core i7-1355U 10-core 12-multi-thread processor, Intel Iris Xe graphics and Thunderbolt 4. The compact 1.79-litre chassis and modern design with two-tone colour scheme provide a timeless feel to conquer offices and workspaces with a quiet and powerful computing experience. With the included VESA mount, the system can be easily mounted behind a compatible display or on the wall for more versatile placement.
The ZBOX C-Series nano can be powered with up to 64GB of fast 5200/4800MHz DDR5 memory, a 2.5" HDD/SSD drive and an M.2 NVMe PCIe 4.0 x4 SSD with little effort.
Number of processor cores | 10 -Core |
Graphics card model | Iris Xe Graphics |
Internal connection options | M.2 PCIe (1x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt 4 (1x) |
Memory type | DDR5 RAM |
USB ports | Thunderbolt 4, USB-A |
Documents | |
Item number | 37208359 |
Manufacturer | Zotac |
Category | Barebones |
Manufacturer no. | ZBOX-CI669NANO-BE |
Release date | 18/8/2023 |
Design | Small Form |
Processor type | Intel Core i7-1355U |
Clock frequency | 1.70 GHz |
Number of processors | 1 x |
Number of processor cores | 10 -Core |
Number of threads | 12 |
Socket | BGA 1744 |
Max. turbo clock rate | 5 GHz |
Max. TDP | 55 W |
Processor properties | 64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x), Onboard processor |
Memory type | DDR5 RAM |
Memory form factor | SO-DIMM |
Number of pins | 262 x |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Graphics card model | Iris Xe Graphics |
Hardware application range | Workstations |
Max. connected monitors | 3 x |
Internal connection options | M.2 PCIe (1x) |
Data storage controller | Intel SoC |
"Number of 5.25"" drive slots" | 1 x |
Number of 3.5" drive slots (internal) | 1 x |
Number of 3.5" drive slots (external) | 1 x |
"Number of 2.5"" drive slots" | 1 x |
USB ports | Thunderbolt 4, USB-A |
Exact USB ports | Thunderbolt 4 (1x), USB-A 2.0 (1x), USB-A 3.2 Gen 2 (4x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Max. port speed | 1000 Mbit/s |
Network features | Wake on LAN |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Bluetooth version | 5.2 |
Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt 4 (1x) |
Audio outputs | Audio Jack, Headphone jack 3.5mm (1x) |
Memory card type | SD, SDHC, SDXC |
Power | 65 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

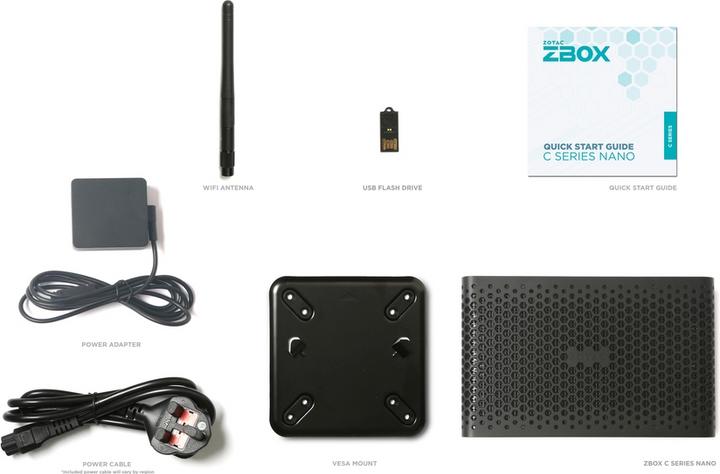

Scope of delivery | Charger with power supply unit, Driver USB Stick, VESA mounting kit, 4 screws, Wi-Fi antenna |
Weight | 500 g |
Width | 129 mm |
Length | 204 mm |
Height | 68 mm |
Length | 24.40 cm |
Width | 24.30 cm |
Height | 9.90 cm |
Weight | 2.08 kg |
