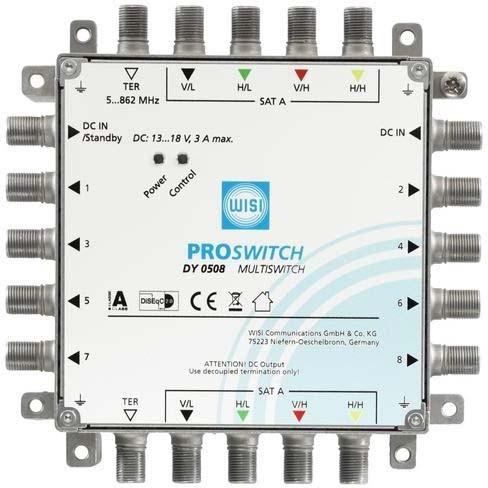

Wisi Multiswitch DY 0508

Manufacturer: Wisi
Description: Multiswitch 5in8 terrestrial passive or NT
Type: DY 0508
Subscriber connections: 8
Number of inputs: 5
Terrestrial input: passive
Cascadable: yes
Number of trunk outputs: 8
Max. current consumption: 2.5 mA
Power supply: none
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB power supply: 12 V
22 kHz generator: no

Wisi Multiswitch DY 0508: additional details
The DY 0508 is a cascading multiswitch with 5 inputs for distributing satellite and terrestrial signals. When using the optionally available power supply DY 70, which ensures LNB voltage supply, the multiswitch can also be used as a stand-alone device. The levels are available at 5 cascade outputs for subsequent multiswitches. At the 8 subscriber outputs, standard DVB-S/S2 receivers or TVs with integrated receivers can be operated. Supplied terrestrial signals such as DVB-T/T2, DAB, or FM are also available at each subscriber output. The standby function minimizes power consumption by activating the multiswitch only when receivers are turned on.
EAN: 4010056740221.
