Wago Shield conductor terminal

Currently out of stock
Free shipping starting at 39,–

Product details

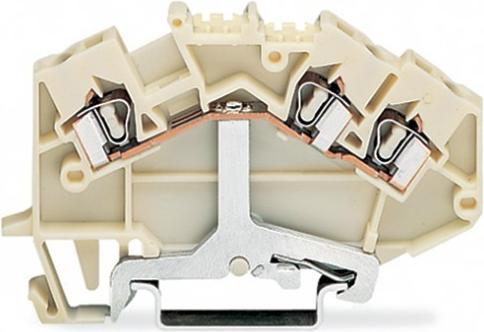

WAGO GmbH & Co. KG shield conductor terminal 780-640

Manufacturer: WAGO GmbH & Co. KG
Designation: Shield conductor terminal TS 35: topJob
Type: 780-640
PEN function possible: Yes
Connectable conductor cross-section fine stranded without ferrule: 0.08 to 2.5 mm²
Connectable conductor cross-section solid: 0.08 to 2.5 mm²
Connectable conductor cross-section stranded: 0.08 to 2.5 mm²
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminal points per level: 3
Mounting type: Top-hat rail TH35
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 5 mm
Height: 77 mm
Depth: 43.5 mm
End plate required: Yes
Colour: White

WAGO GmbH & Co. KG shield conductor clamp 780-640: more details
3-wire shield conductor clamp 2.5 mm²
Centre marking for mounting rail 35 x 15 and 35 x 7.5
CAGE CLAMP® 2.50 mm² white
EAN: 4045454084684.

Key specifications

Item number
34363704

General information

Manufacturer
Wago
Category
Electronics supplies + Casing
Manufacturer no.
780-640
Release date
17/5/2023

Colour

Colour
White

Compatibility

Compatible hardware
Various

Electronics accessory properties

Manufacturer Type
780-640

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 x

Product dimensions

Length
43.50 mm
Width
5 mm
Height
77 mm
