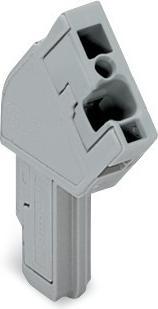

WAGO GmbH & Co. KG Female connector 769-104/022-000 Manufacturer :WAGO GmbH & Co. KG Designation :Female connector 3-pole gr Type :769-104/022-000 Explosion-tested version "Ex e" :no Connectable conductor cross-section fine stranded without ferrule :0.08..4 mm² Connectable conductor cross-section finely stranded with ferrule :0.25..2.5 mm² Connectable conductor cross-section solid :0.08..4 mm² Connectable conductor cross-section stranded :0.08..4 mm² Rated current In :32 A Rated voltage :500 V Electrical connection version 1 :Spring-cage connection Electrical connection version 2 :Spring-cage connection Number of poles :4 Number of terminals per pole :1 Mounting type :other Insulator material :Thermoplastic Operating temperature :105 °C Flammability class of the insulating material according to UL 94 :V0 Halogen-free :yes Width :20 mm Height :26.5 mm Depth :37.1 mm End plate required :no Colour :grey Transparent :no WAGO GmbH & Co. KG Female connector 769-104/022-000: more details 1-wire female connector, angled CAGE CLAMP® 4 mm² pitch 5 mm 4-pole coding lug 4.00 mm² grey , EAN: 4044918547543.
