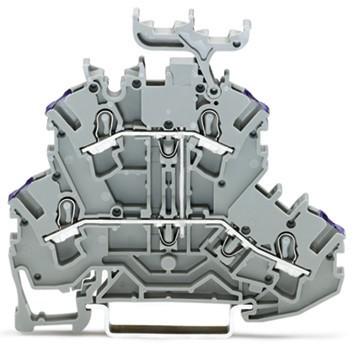

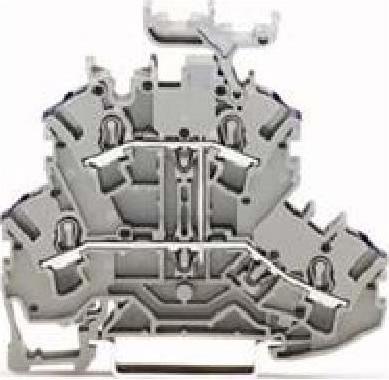

WAGO GmbH & Co. KG double level terminal block 2002-2238

Manufacturer: WAGO GmbH & Co. KG
Designation: Double level terminal block
Type: 2002-2238
Connectable conductor cross-section fine-stranded without ferrule: 0.25...4 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.75...2.5 mm²
Connectable solid conductor cross-section: 0.75...4 mm²
Connectable stranded conductor cross-section: 0.25...2.5 mm²
Rated current In: 24 A
Rated voltage: 500 V
Electrical connection type 1: Spring-loaded connection
Electrical connection type 2: Spring-loaded connection
Number of tiers: 2
Number of clamping points per tier: 2
Mounting type: Top-hat rail TH35
Material of the insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 5.2 mm
Height: 69.7 mm
Depth: 61.8 mm
Explosion-proof version "Ex e": Yes
End plate required: Yes
Colour: Grey
Floors internally bridged: Yes

Further details: Double level terminal block 4-conductor feed-through terminal block L with labelling carrier suitable for applications Ex e II, internally bridged conductor entry, violet printed for mounting rail 35 x 15 and 35 x 7.5, 2.5 mm² Push-in CAGE CLAMP® 2.50 mm², grey.
