Wago Double deck 2002-2951 Double disconnect terminal 0.25-2.5(4) qmm grey
Only 2 items in stock at supplier
Product details

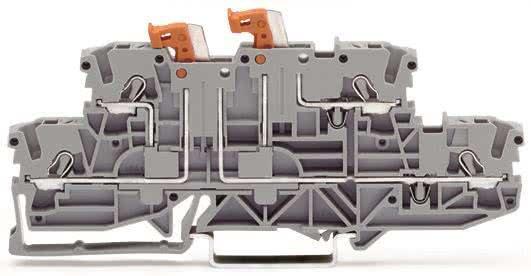

WAGO GmbH & Co. KG Double-decker terminal 2002-2951
Manufacturer: WAGO GmbH & Co. KG
Designation: Double-decker terminal
Type: 2002-2951
Connectable conductor cross-section fine-stranded without ferrule: 0.25..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.75..2.5 mm²
Connectable conductor cross-section solid: 0.75..4 mm²
Connectable conductor cross-section multi-stranded: 0.25..2.5 mm²
Rated current In: 16 A
Rated voltage: 400 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection
Number of levels: 2
Number of connection points per level: 2
Internally bridged levels: no
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Flammability class of insulating material according to UL 94: V0
Operating temperature: 105 °C
Width: 5.2 mm
Height: 108 mm
Depth: 42 mm
End plate required: yes
Color: gray
Longitudinal separation type: none
Transverse separation type: none
With integrated test socket: no
WAGO GmbH & Co. KG Double-decker terminal 2002-2951: additional details
Double-decker double-separation terminal with 2 pivoting separation knives L/L for mounting rail 35 x 15 and 35 x 7.5, 2.5 mm² Push-in CAGE CLAMP®, 2.50 mm² gray, EAN: 4050821006749.
Item number | 31528743 |
Manufacturer | Wago |
Category | Cable accessories |
Manufacturer no. | 2002-2951 |
Release date | 7/10/2022 |
Colour | Grey |
Exact colour description | Grey |
Material | Thermoplastic resin |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 50 x |
Length | 42 mm |
Width | 5.20 mm |
Height | 108 mm |
