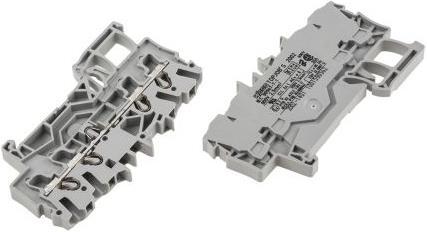

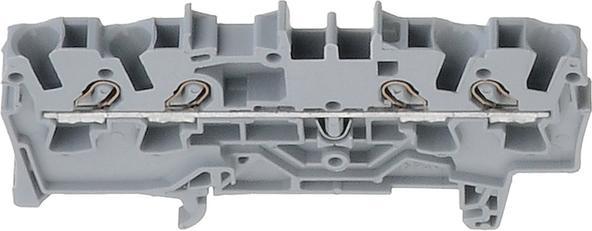

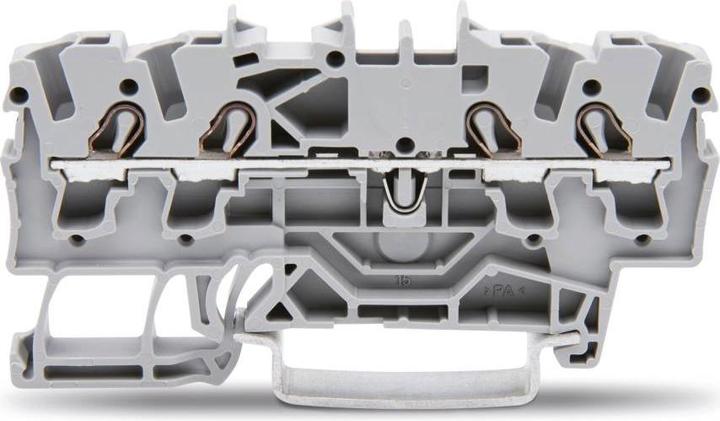

WAGO GmbH & Co. KG Through Terminal 2002-1401

Manufacturer: WAGO GmbH & Co. KG
Designation: 4-Wire Through Terminal, TS 35
Type: 2002-1401

Connectable conductor cross-section fine-stranded without ferrule: 0.25 - 4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.75 - 2.5 mm²
Connectable conductor cross-section solid: 0.75 - 4 mm²
Connectable conductor cross-section multi-stranded: 0.25 - 2.5 mm²

Rated current In: 24 A
Rated voltage: 800 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection

Number of levels: 1

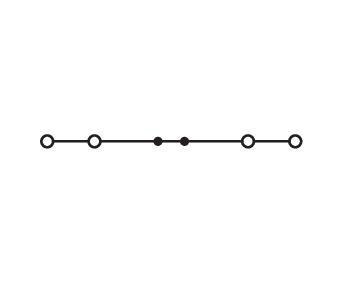

Number of connection points per level: 4
Mounting type: TH35 rail
Material of the insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0

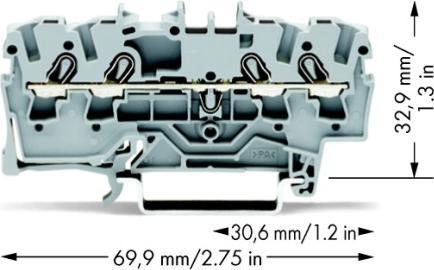

Width: 5.2 mm
Height: 69.9 mm
Depth: 32.9 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: gray
Internally bridged levels: no

WAGO GmbH & Co. KG Through Terminal 2002-1401: additional details
4-wire through terminal 2.5 mm² suitable for Ex e II applications, side and center labeling for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP® 2.50 mm² gray, EAN: 4017332999281.
