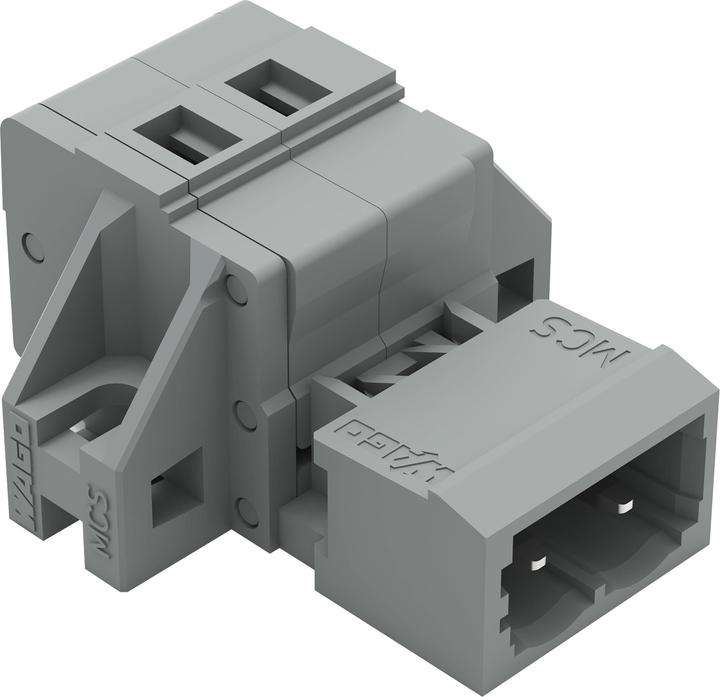

WAGO GmbH & Co. KG male connector with flange 231-602/019-000.

Manufacturer: WAGO GmbH & Co. KG
Designation: Male connector with flange
Type: 231-602/019-000
Connection type: PCB to cable
Contact design: Pin
Number of poles: 2
Number of rows of plug-in contacts: 1
Contact pitch: 5 mm
Terminal pitch: 5 mm
Angle of contact/conductor connection: 180° (horizontal)
Rated current: 12 A
Rated voltage: 320 V
Rated impulse voltage: 4 kV
Overvoltage category: III
Degree of pollution: 2
Connectable conductor cross-section, flexible without ferrule: 0.08 to 2.5 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm²
Connectable solid conductor cross-section: 0.08 to 2.5 mm²
Connectable conductor cross-section stranded: 0.08 to 2.5 mm²
Electrical connection type: Spring-loaded connection
Connectable cable type: Round cable
Material of contact coating: Tin
Material of contact: Other copper alloys
Material of insulating body: Thermoplastic
Material of housing: Plastic
Coating of housing: Uncoated
Housing colour: Grey
Flammability class of insulating material according to UL 94: V0
With protective conductor: No
Operating temperature: -60 to 100 °C
Protection class (IP), mounted: IP10

WAGO GmbH & Co. KG male connector with flange 231-602/019-000: further details
1-conductor male connector CAGE CLAMP® 2.5 mm²
Spacing: 5 mm
2-pole
Mounting flange
2.50 mm²
Grey
EAN: 4044918256476.
