WAGO GmbH & Co. KG Terminal Block 235-401

Manufacturer: WAGO GmbH & Co. KG
Designation: Terminal block 0.5-2.5 mm² gray
Type: 235-401

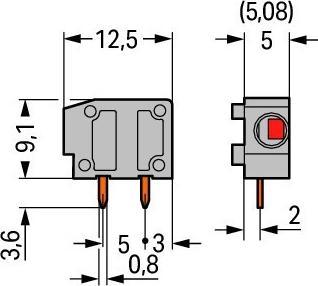

Height: 9.2 mm
Number of electrical connections: 1
Number of levels: 1
Connection pitch: 5 mm
Angle of PCB/lead connection: 0°/180° (horizontal)

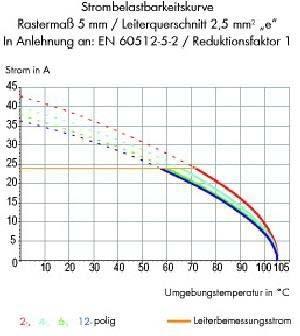

Rated current In: 24 A
Rated voltage: 320 V
Rated impulse voltage: 4 kV
Overvoltage category: III
Degree of pollution: 2
Connection type for lead: Plug-in terminal connection
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section stranded with ferrule: 0.25..1.5 mm²
Connection type for PCB: Solder connection
Material of connection surface: Tin
Pin length: 3.6 mm
Material of insulating body: Thermoplastic
Housing color: gray
Flammability class of insulating material according to UL 94: V0
Operating temperature: -60..105 °C
Type of PCB mounting: Connection contact
Mounting type: Soldering
Type of banding: None

WAGO GmbH & Co. KG Terminal Block 235-401: additional details

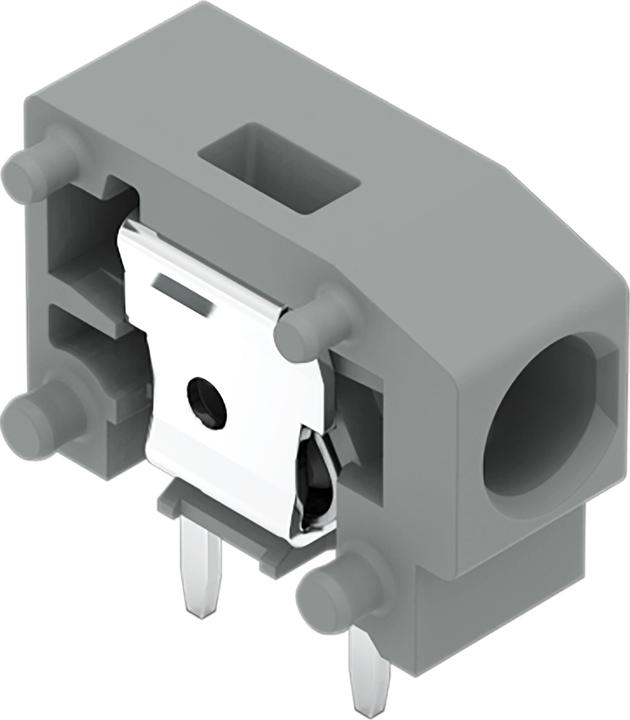

Stackable PCB terminal 2.5 mm² pitch 5/5.08 mm 1-pole PUSH WIRE® 2.50 mm² gray, EAN: 4044918829977.
