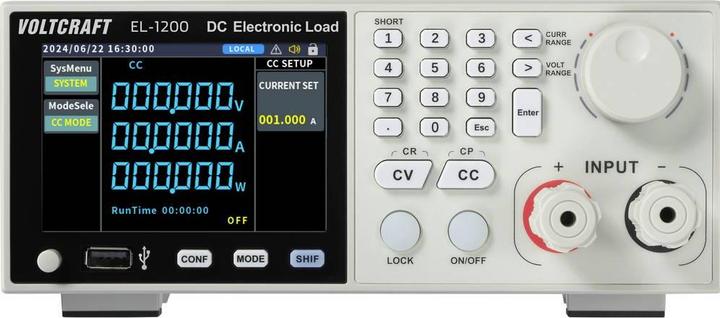

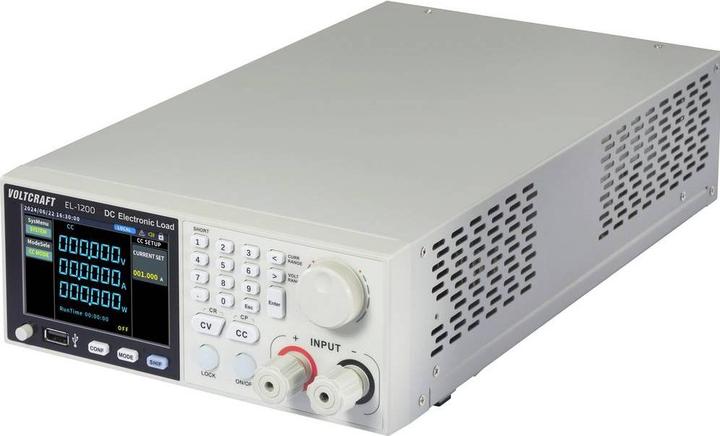

High-precision load simulation for power sources. The Voltcraft EL-1200 DC is suitable for various applications such as testing power supplies, batteries, or chargers. It offers load regulation in Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP) modes. Additionally, features like dynamic current testing up to 10 kHz and remote compensation are integrated. There is 1 output available, with load values adjustable up to a maximum of 150 V, 20 A, and 200 W.

Safe operation. To ensure safe operation, the Voltcraft EL-1200 DC is protected multiple times against overvoltage, overload, overperformance, and overheating. The parallel control supports up to 10 devices and is also suitable for potentially high-power applications.

Convenient evaluation. All data is displayed on a clearly readable 10 cm (3.9 inch) TFT LCD color display. Furthermore, a USB port and an RS232 standard interface for SCPI protocols are available.

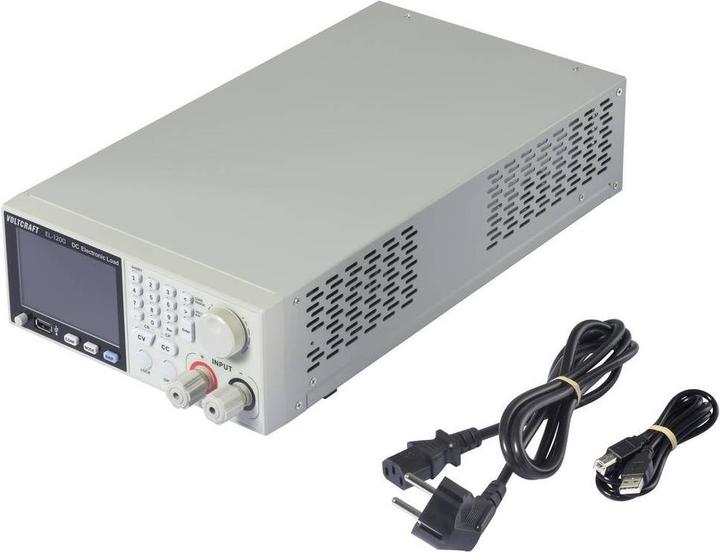

Mounting and accessories. For stand-alone operation, the Voltcraft EL-1200 DC is equipped with foldable stand feet. For rack mounting, the power supply requires two height units at half rack width. Along with the device, a power cable, a user manual, and a safety data sheet are included.
