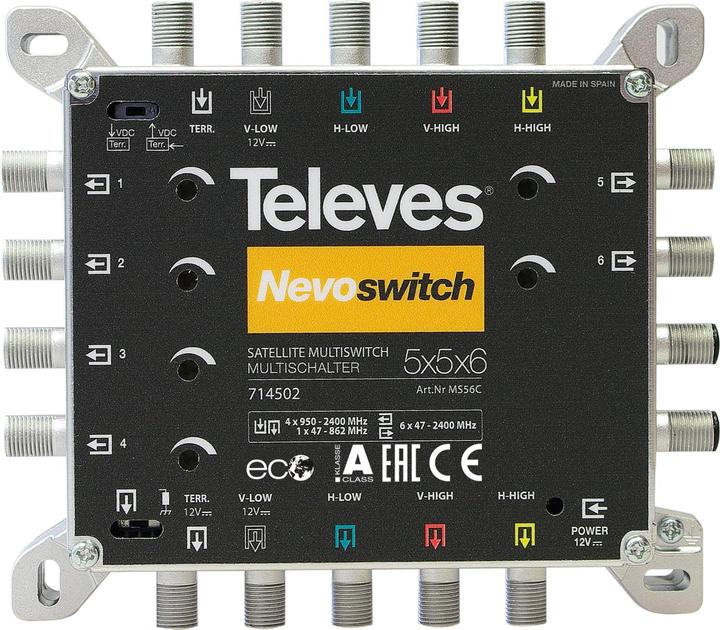

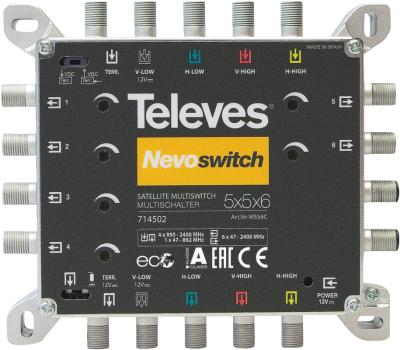

Cascadable multiswitch with 5 inputs (1 terrestrial and 4 SAT), 6 participant outputs, 5 pass-through outputs, and a 12 dB level control at the participant outputs. Very flexible: can be used as a standalone or cascaded switch thanks to switchable termination resistors.

Highlights

• A 12 dB level control per participant for adjusting the output level.
• Switch for powering terrestrial and SAT systems. Switch for powering the terrestrial amplifier.
• Power supply directly from the receiver.
• Remote powering via V-Low input.
• DC pass-through between inputs and cascade outputs.
• Terrestrial power supply.
• European quality and design, 100% manufactured and tested by Televes.

Features

• Very compact.
• Die-cast housing, designed and manufactured by Televes.
• Inputs and pass-through outputs color-coded.
• With ECO mode: participant-dependent power consumption.
• Switching between cascade and standalone switch (termination resistors can be activated).
• 12 V power supply.
• Low power consumption, thus economical operation (receiver powered).

Technical Specifications
Number of inputs: 5
Number of cascade outputs: 5
Number of participant outputs: 6
Frequency range TERR: 47 ... 862 MHz
Frequency range SAT: 950 ... 2400 MHz
Input level TERR: 92 dBμV
Input level SAT: 105 dBμV
Pass-through attenuation TERR: 2 dB
Pass-through attenuation SAT: 1.5 ... 4 dB
Participant attenuation 1...8 TERR: 2 dB
Participant attenuation 1...8 SAT: 1 dB
Level control per participant: 0 ... 12 dB
Decoupling H/V: > 30 dB
TN decoupling: > 25 dB
Power supply: 12 Vdc
Max. power consumption (PSU): 40 mA
Max. power consumption (STB): 35 mA
Operating temperature: -5 ... 45 °C
Protection index: 20

Physical Data
Net weight: 378 g
Gross weight: 378 g
Width: 137 mm
Height: 121 mm
Depth: 29 mm
Main product weight: 370 g.
