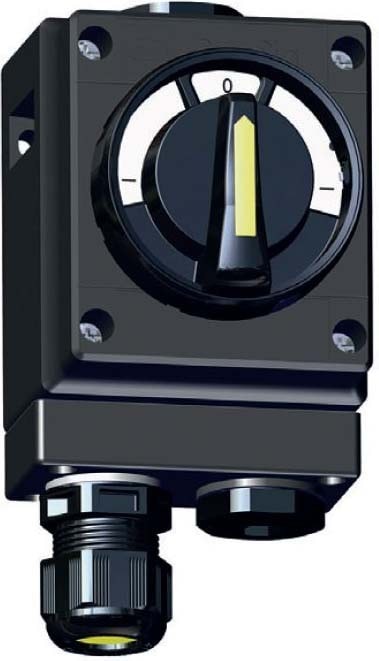

The installation switches of the series 804011-V30 are used for controlling lighting systems. The switch position is clearly indicated by the 90-position switch, which is advantageous when the lighting system and the switch are located in different rooms. The fluorescent rotary handle allows for orientation in case of a power failure.

Installation switch with circuit breaker, explosion-proof, type: 804011-V30-033-B, rated operational voltage AC: 690 V, rated operational current: 16 A, number of poles: 2, housing material: polyester.

Application area zones: 21, 22. Gas explosion protection: II G Ex db eb IIC T6 Gb. Dust explosion protection: II D Ex tb IIIC80 C Db. Minimum ambient temperature: -20 C, maximum ambient temperature: 60 C. Protection class IP: IP66. Cable glands: x M25 7 ... 17 mm, sealing plugs: x M25 1.5, connections: 1.5 ... mm2 single-core, 1.5 ... 2.5 mm2 fine-stranded.
