SkyRC eFuel 50A/1200W power supply

The 1200W output power supply supports 15-30V and has built-in PFC, which is an important aspect of all power supplies. The eFuel is ideal for high-voltage and three-port chargers, as well as other devices. The 100-240 volt power range allows for universal use without the need for DC port settings. Its high power and functional design make it portable for use in the field.

Functionality

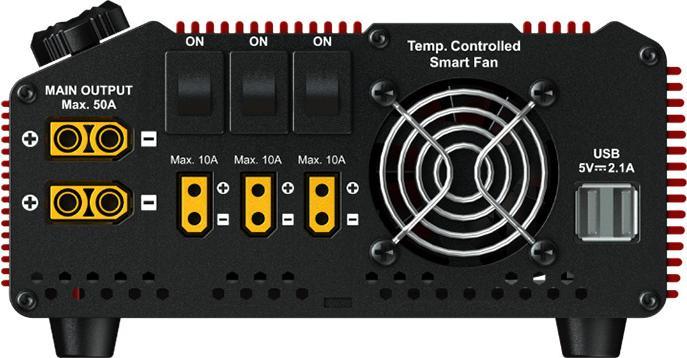

The main DC port supplies up to 50 amps, and the power supply features three output ports with on/off capability, providing multiple power options. Additionally, there are two USB ports on the right side for powering external devices, such as a smartphone or tablet. The left side includes a main power switch.

Simple operation

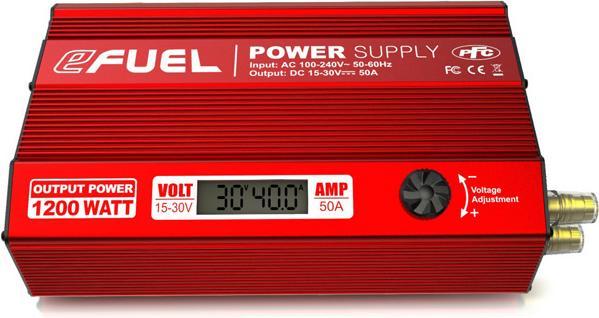

The eFuel power supply model has a convenient knob for adjusting the voltage from 15 to 30 volts. The easy-to-read LCD screen displays the current output voltage and current, simplifying operation. The universal AC 100-240V power supply makes it usable worldwide without the need for power adapters.

PFC input

Active PFC input means less interference with the AC power supply. It is the circuit responsible for changing or correcting the power factor value, which alters the phase shift angle between current and voltage. The phase shift between current and voltage can cause reactive power to be emitted.

Included:

• Power adapter
• Power cable

Manufacturer: SkyRC
Model: SK-200015
Weight: 3008 g
Input voltage: AC 100-240 V
Frequency: 50-60 Hz
Output voltage: 15-30 V DC ± 0.5V
Output current: 50A ± 1A
Overload protection: 51 A 500 ms
Input fuse: 20A fuse
Voltage precision: ±0.3V
Current precision: ±0.5A
Pulsed charging current: 30-300 mA & OFF.
