XPC slim DH670V2

The robust 1.3-liter slim PC supports Intel Core processors with LGA1700 socket and four UHD displays.

The Shuttle XPC slim Barebone DH670V2 with H670 chipset brings the performance of Intel's 12th, 13th, and 14th generation Core desktop processors (codenamed "Alder Lake-S" and "Raptor Lake-S" [Refresh]) into a compact 1.3-liter format. It supports the simultaneous operation of four Ultra HD displays via 2x HDMI and 2x DisplayPort. Dual Intel 2.5G networking, four USB 3.2 Gen 2 ports, and COM ports are also included. Its flat metal case with VESA mount, diverse connectivity options, and reliable operation at ambient temperatures of up to 50 °C make the DH670V2 ideal for professional applications such as digital signage, POS, POI, gaming machines, offices, healthcare, and industry. A BIOS update may be necessary for Intel Core Gen 14 (to be performed with a compatible processor).

• For Intel Core processors of the 12th/13th/14th generation (LGA1700)
• Up to 64 GB DDR4 SO-DIMM

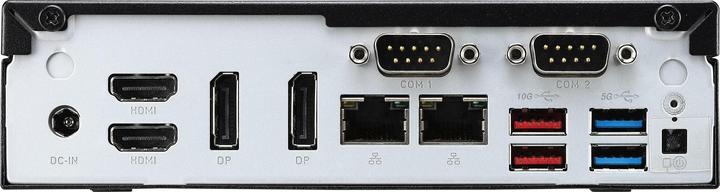

• Two RJ45 network ports (2.5 Gbit)
• 1x M.2-2280, 1x M.2-2230

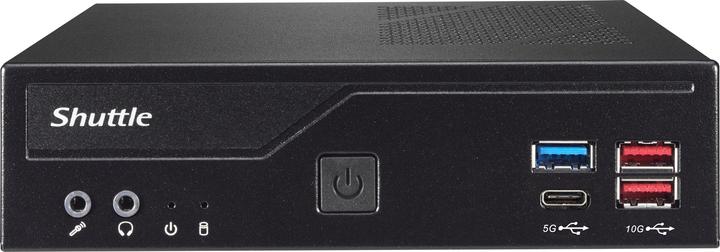

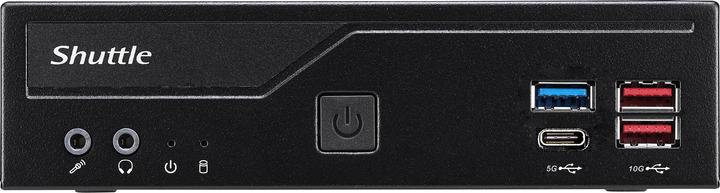

• 4x USB 3.2 (10 Gbit), 1x USB 3.2 Type C (5 Gbit), 3x USB 3.2 (5 Gbit), 2x RS-232
• 2x HDMI 2.0b, 2x DisplayPort 1.4a
• Supports four displays
• 1x NVMe SSD, 1x 2.5" drive
• Remote power-on connector
• Only 19 x 16.5 x 4.3 cm (LxWxH)

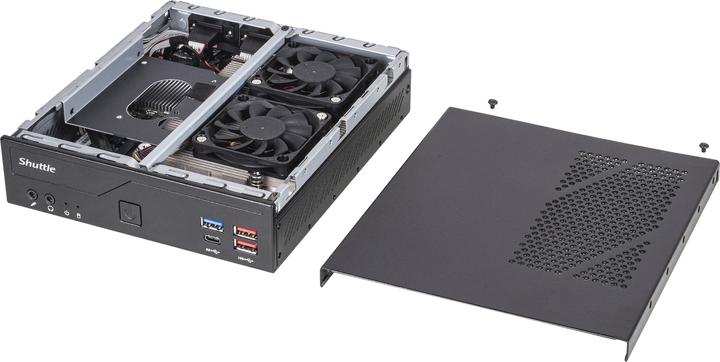

• Heat pipe cooling system with dual fans
• VESA/wall mount included

Case

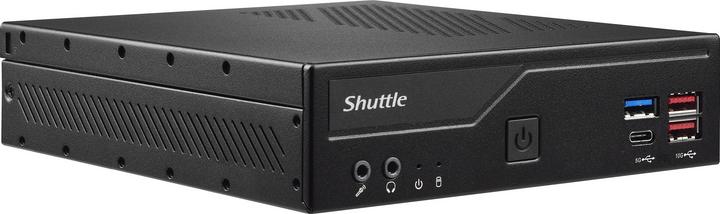

• Slim PC with black metal housing
• Dimensions: 19 x 16.5 x 4.3 cm (LxWxH) = 1.35 liters
• Weight: 1.3 kg net and 2.1 kg gross
• Two openings for Kensington lock and numerous M3 threaded holes on both sides of the case.

Power Supply

• External 120 W power supply (fanless)
• Input: 100-240 V AC, 50/60 Hz
• Output: 19 V DC, 6.32 A, max. 120 W
• DC connector: 5.5/2.5 mm (outer/inner diameter).
