XPC all-in-one P25N

Compact all-in-one PC for POS or control applications

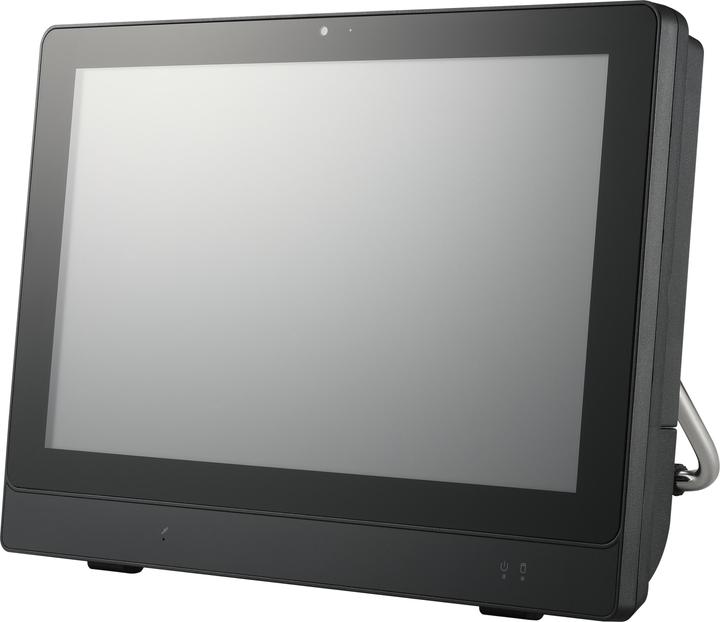

The Shuttle XPC all-in-one P25N with an 11.6" multitouch display is designed as a space-saving cash register system or as a control unit for media playback or automation. With its practical foldable stand, the tilt can be individually adjusted, and it can also be mounted on a VESA stand or wall bracket. The front is protected against dust and splashes according to IP54 standards. A cable management box on the back keeps things tidy. Thanks to completely passive cooling, the system is virtually silent, maintenance-free, and suitable for 24/7 continuous operation.

Details

• Intel Processor N100 (Gen 12)

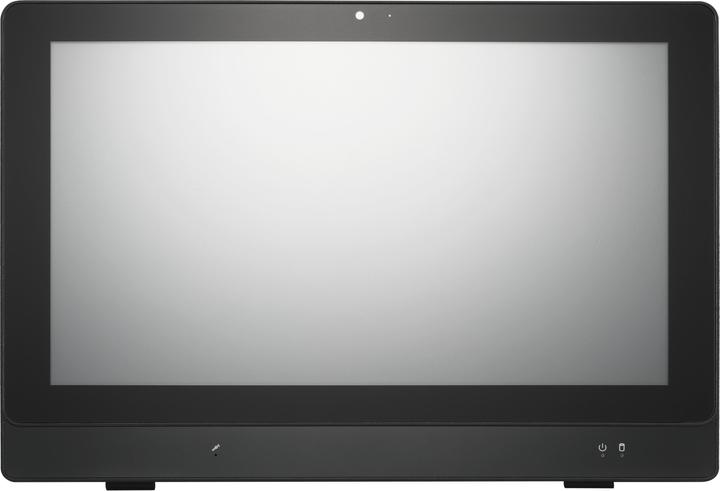

• 11.6" multitouch screen (29.5 cm) with IP54 protection
• Up to 16 GB DDR5 memory

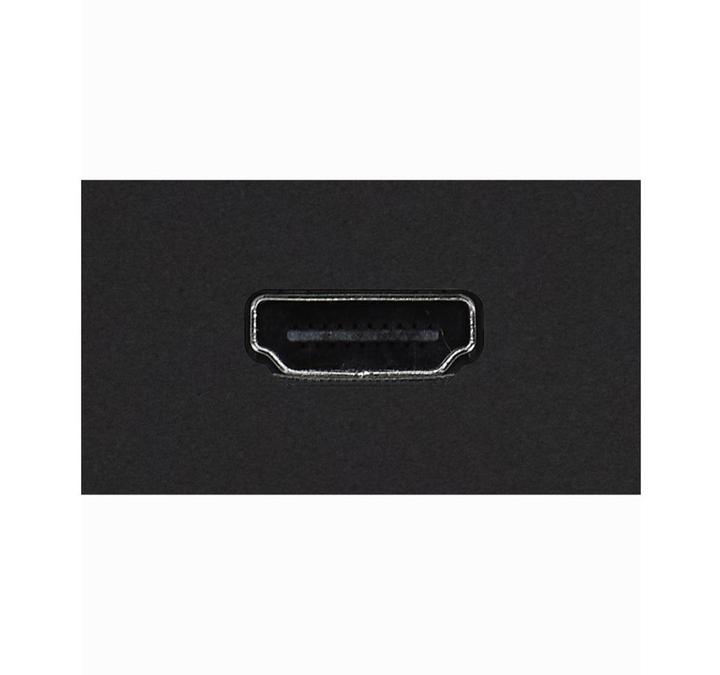

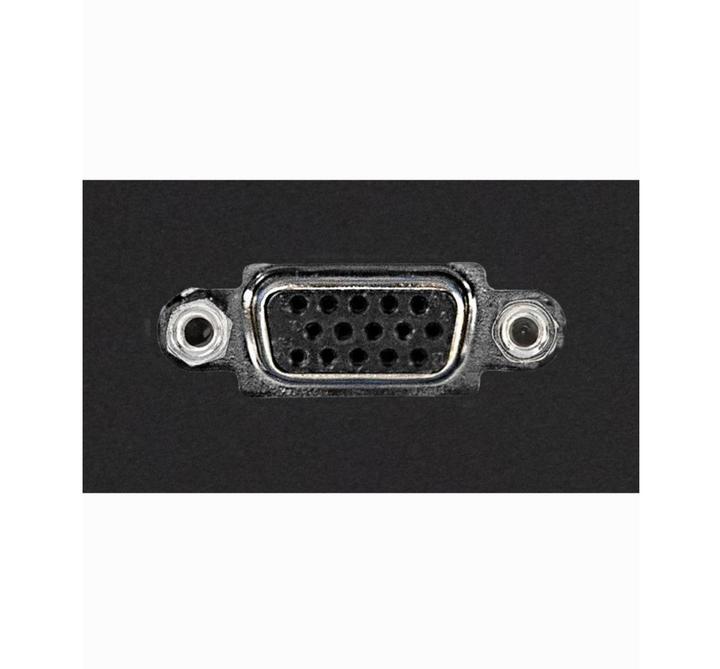

• 1× HDMI 2.0b, 1× VGA
• 1× 2.5" HDD/SSD and 1× M.2 SSD
• 2.5 Gbit Ethernet, Wi-Fi 5, and Bluetooth

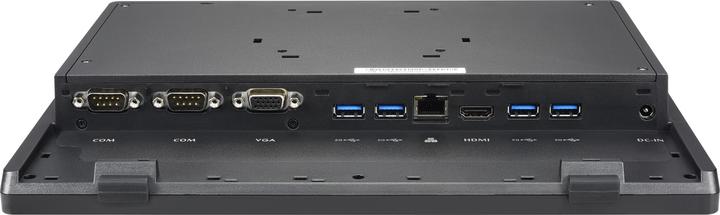

• 2× USB 3.2 (10 Gbit), 4× USB 3.2 (5 Gbit), 2× COM

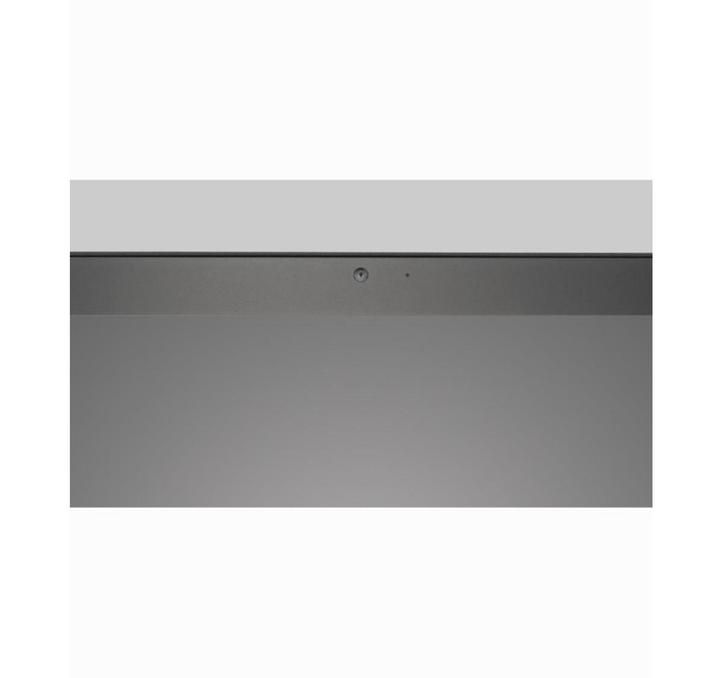

• Integrated speaker, camera, and microphone

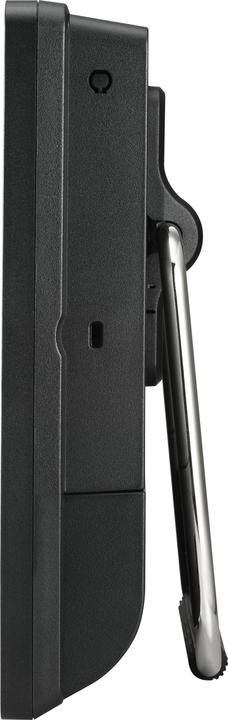

• Flexible stand and VESA mounting option
• Suitable for 12 or 19 V DC

Extensions via M.2 module
This AiO features two M.2 slots that allow for the addition of various storage and expansion modules, such as NVMe SSDs, wireless LAN cards, or mobile modems. These M.2 slots utilize the high-speed PCI-Express interface, enabling fast data transfer and efficient system performance. (The M.2-2230 slot is occupied by a pre-installed Wi-Fi module.)

DDR5 RAM
This device utilizes modern DDR5 memory technology, which offers improved performance and efficiency compared to previous generations. It supports up to 16 GB of DDR5 SO-DIMM memory, ensuring smooth multitasking and responsiveness even with the most demanding applications. With higher bandwidth and improved data transfer rates, DDR5 provides faster...
