Area: TeSys K
Series: LC1K
Number of Poles: 3
Coil Voltage: 230 V AC
Rated Contact Current: 6 A
Rated Contact Voltage: 690 V AC
Contact Configuration: 3 Normally Open
Number of Auxiliary Contacts: 1
Power: 2.2 kW
Connection Type: Spring Terminal
Length: 58 mm
Width: 45 mm
Maximum Operating Temperature: +50 °C

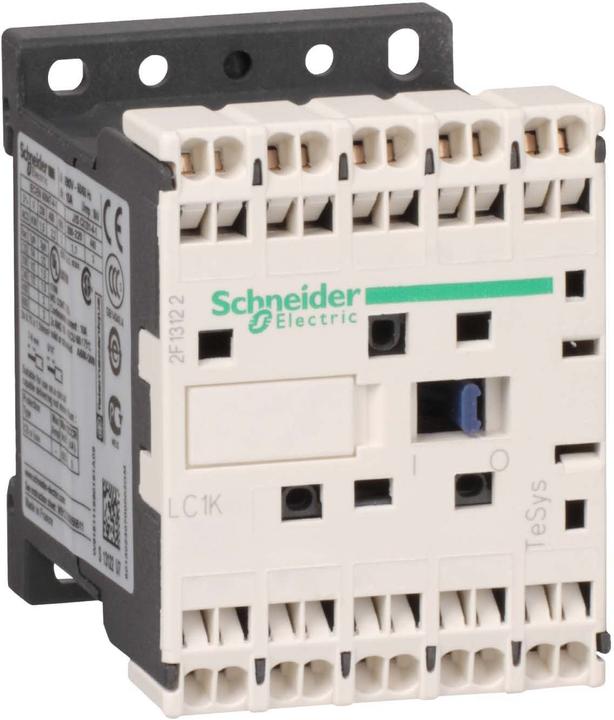

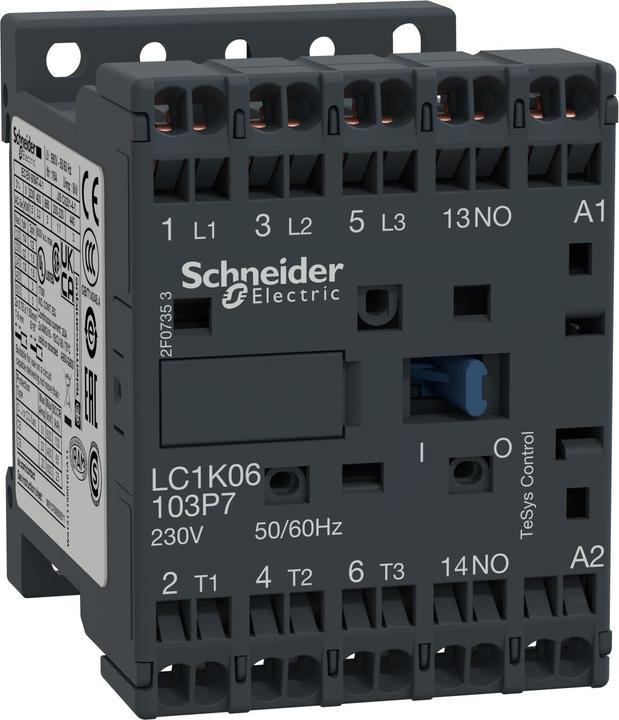

3-pole contactors with spring terminals. The contactors have a switching voltage of 440 V AC and a power consumption (AC coils for 50/60 Hz) of 4.5 VA (holding) and 30 VA (inrush current). Spring connection terminals with a safety stop to prevent damage to the terminals when excessive force is applied during wiring. Consistent strength of connections. 1 x auxiliary contact, normally open. Resistant to vibrations and temperature fluctuations. Complies with standard IEC947-4 EN60947-4-1. DIN rail mounting or screw fastening. Ideal for use in conjunction with motor disconnect switches of type GV2-M.
