Schneider Electric Reversible contactor combination
Product details

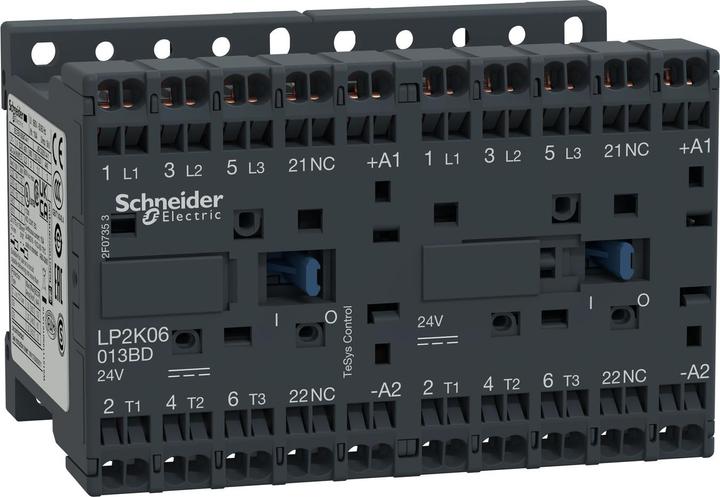

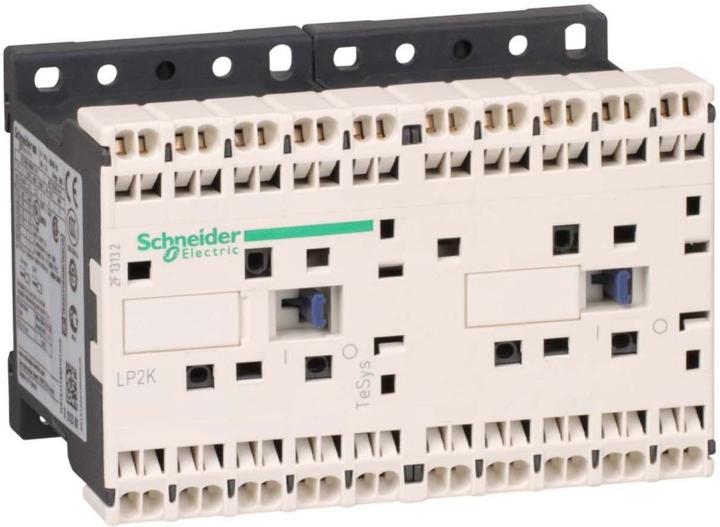

Schneider Electric reversing contactor combination LP2K06013BD
Manufacturer: Schneider Electric
Designation: Reversing contactor combination 2.2kW/400V/AC3
Type: LP2K06013BD
Function: Reversing contactor
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operating current Ie at AC-3, 400 V: 6 A
Rated operating power at AC-3, 400 V: 2.2 kW
Rated operating power NEMA: 2.24 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Spring-cage connection
Type of connection for main circuit: Spring-cage connection
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No
Further details: 3-pole TeSys K contactor for simple motor applications with 2.2kW at 400V. Very compact and DIN rail compatible, it is mounted with a mechanical interlock and a pre-wired reversing circuit. It offers a 24V DC coil, 2 NO built-in auxiliary contacts, and connections via spring terminals. It fulfills several standards (IEC, UL, CSA, CCC, EAC, Marine) and is Green Premium (RoHS/REACH) certified.
Scope of delivery | 2 NO contacts, built-in auxiliary contacts and connections via spring terminals. It fulfils several standards (IEC, UL, CSA, CCC, EAC, Marine) and is Green Premium (RoHs/Reach) certified., 3-pole TeSys K contactor for simple motor applications with 2.2kW400V. Very compact, DIN rail compatible, it is mounted with a mechanical interlock and a pre-wired reversing circuit. It provides a 24V DC coil |
Output current type | AC |
Relay type | Contactor relay |
Electric current output | 6 A |
Output voltage | 24 V |
input voltage | 24 V |
Number of poles | 3x |
Item number | 33585511 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | LP2K06013BD |
Release date | 17/5/2023 |
Relay type | Contactor relay |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 6 A |
Output current type | AC |
Switching function | Normally open |
Number of openers | 1x |
Number of closers | 2x |
Number of poles | 3x |
Max. Switching capacity | 2.20 kW |
Manufacturer Type | LP2K06013BD |
Smart Home | Compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 NO contacts, built-in auxiliary contacts and connections via spring terminals. It fulfils several standards (IEC, UL, CSA, CCC, EAC, Marine) and is Green Premium (RoHs/Reach) certified., 3-pole TeSys K contactor for simple motor applications with 2.2kW400V. Very compact, DIN rail compatible, it is mounted with a mechanical interlock and a pre-wired reversing circuit. It provides a 24V DC coil |
Length | 57 mm |
Width | 90 mm |
Height | 58 mm |
