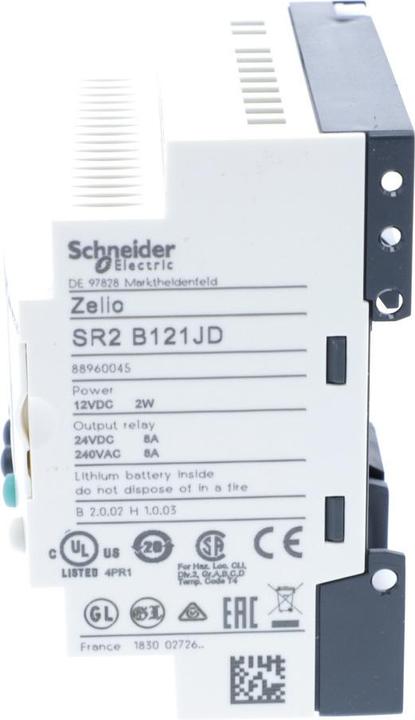

Series: Zelio Logic
Supply Voltage: 12 VDC
Output Type: Relay
Number of Outputs: 4
Input Type: Analog, Discrete
Number of Inputs: 8

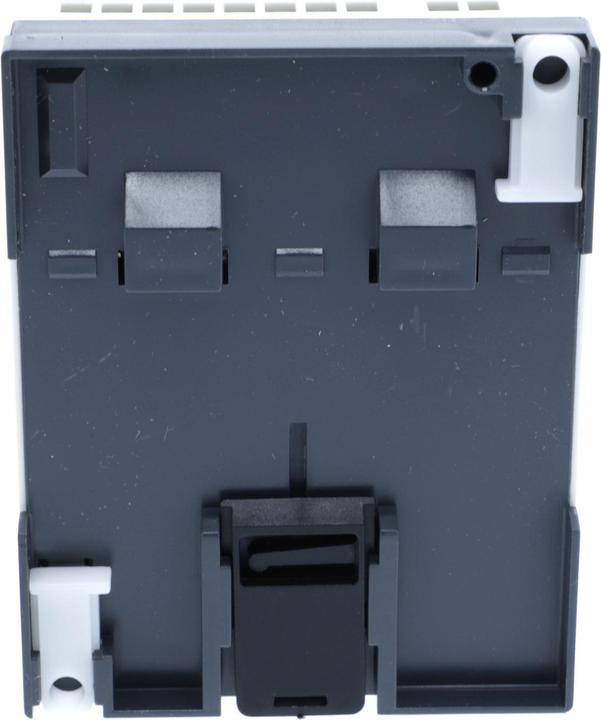

Mounting Type: DIN Rail
Width: 107.6 mm
Length: 71.2 mm
Dimensions: 71.2 x 107.6 x 59.5 mm
Programmable Interface: Computer, Operator Device
Module Type: Logic Control Module
Maximum Operating Temperature: +55 °C

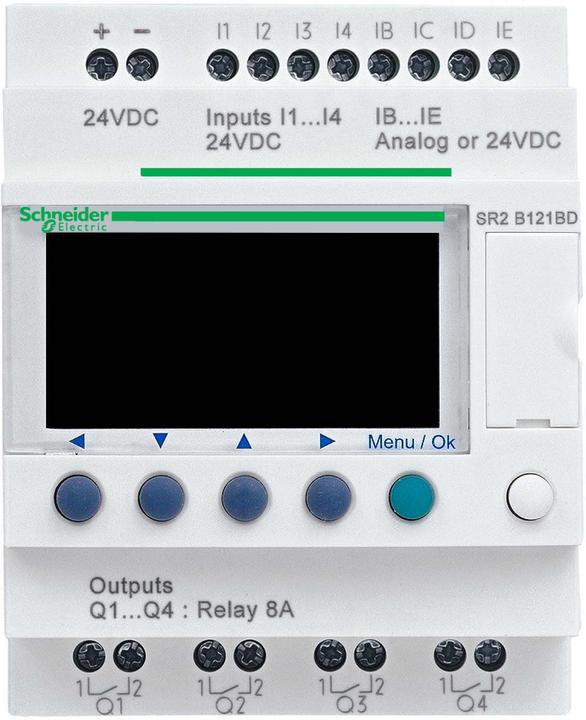

Zelio Logic Smart Relays – Compact. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can feature up to 40 extended I/O. Programming and Software: Simple programming can be done independently using the buttons on the front of the relay or on a PC using the "Zelio Soft" software. PC programming can be done either using LADDER language or Function Block Diagram (FBD) language. Memory: The Zelio Logic Smart Relays have a memory buffering feature that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before product replacement, and for relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlighting, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw connection terminals, protection class IP20.
