Manufacturer series: BMEXBP
Module insertion: 12
Backplane current max: 164mA
Mounting type: DIN rail
Weight unloaded: 1.377kg
Length: 503.2mm
Width: 105.11mm
Depth: 19mm
Operating temperature min: 0°C
Operating temperature max: +60°C
Dimensions: 503.2 x 105.11 x 19mm

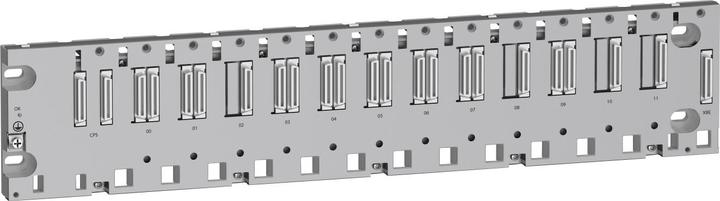

Modicon M580 - Dual Ethernet and X-Bus backplanes. The M580 PAC is compatible with dual Ethernet and X-Bus backplanes. An Ethernet switch is integrated into the backplane with connectivity to some slots on the backplane (not all slots have Ethernet connectivity). X-Bus functionality is retained and is consistent with the older implementation and specification. X-Bus is used in a subset of modules on the Ethernet backplane. The M580 backplanes provide power for all modules in the rack and are available with 4, 8, or 12 slots.
