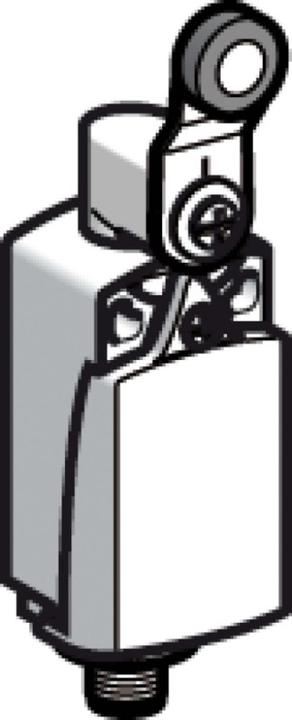

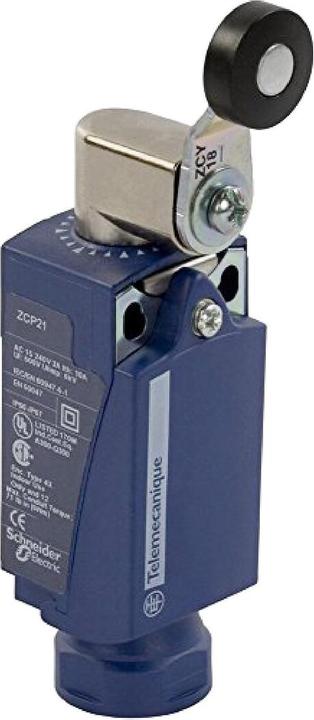

Switch off your workspace in just moments with the Yageo XCKP position switch. With its precision and reliability, it is perfectly suited for various industrial applications. It has a width of 31 mm, a height of 65 mm, and a length of 30 mm, and features a rated operating voltage of 3A/230V AC-15 and 0.27A/230V DC-13. The switch has a "snap action" type mechanism and a forced opening. It is equipped with 1 normally open and 1 normally closed contact and has a protection rating of IP66/IP67/IK04. It has an M12 connection option but is also available in modular design and with ISO M20x1.5, ISO M16x1.5, and Pg11.

Features:

• Sensor width: 31 mm
• Sensor height: 65 mm
• Sensor length: 30 mm
• Rated operating current Ie at AC-15, 230 V: 3 A
• Rated operating current Ie at DC-13, 230 V: 0.27 A
• Switching function: snap action
• Electronic output: no
• Forced opening: yes
• Number of safety-related auxiliary contacts: 0
• Number of contacts as normally open: 1
• Number of contacts as normally closed: 1
• Number of contacts as changeover: 0
• Interface design: none
• Interface design for safety-related communication: none
• Housing shape: rectangular
• Housing material: plastic
• Housing coating: other
• Actuating element design: roller lever
• Actuating element orientation: other
• Electrical connection design: M12 connector
• With status indicator: no
• Suitable for safety functions: no
• Explosion protection category for gas: none
• Explosion protection category for dust: none
• Ambient temperature during operation: -25 °C
• Protection rating (IP): IP66/IP67
• Latching switching function: no.
