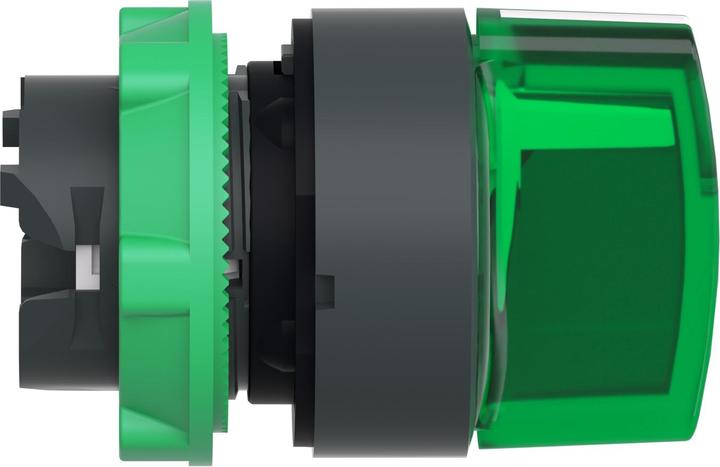

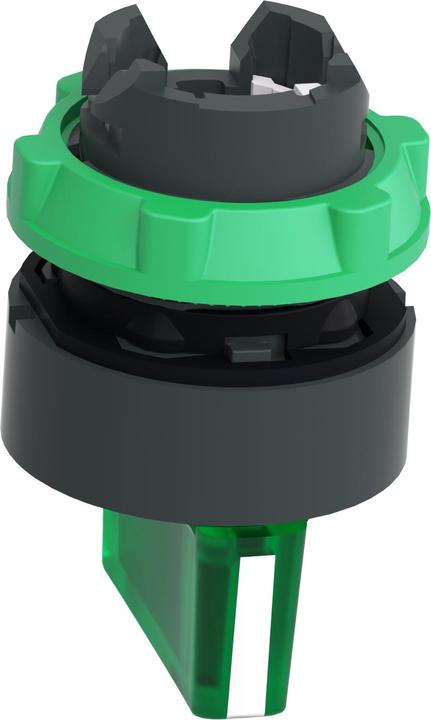

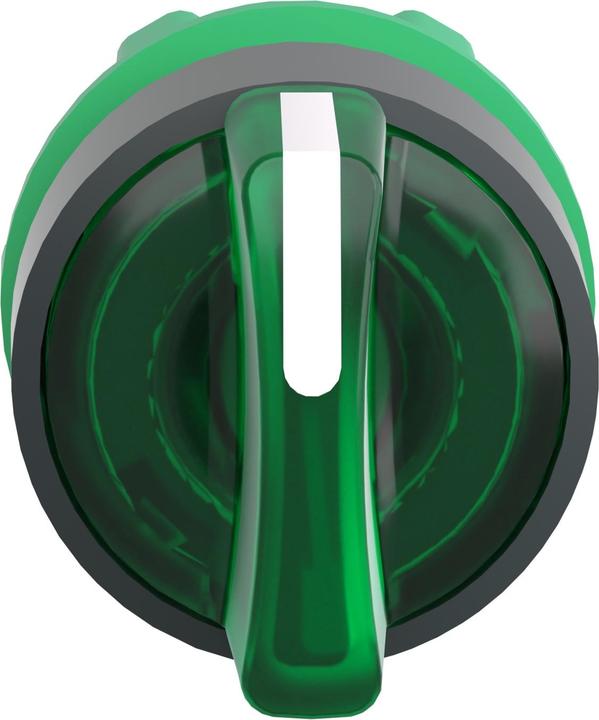

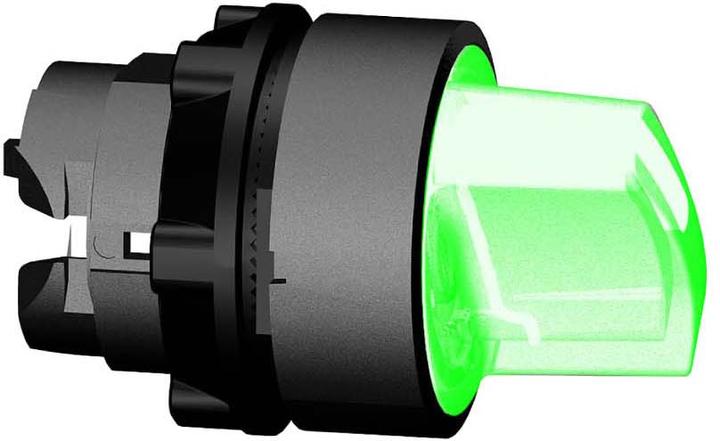

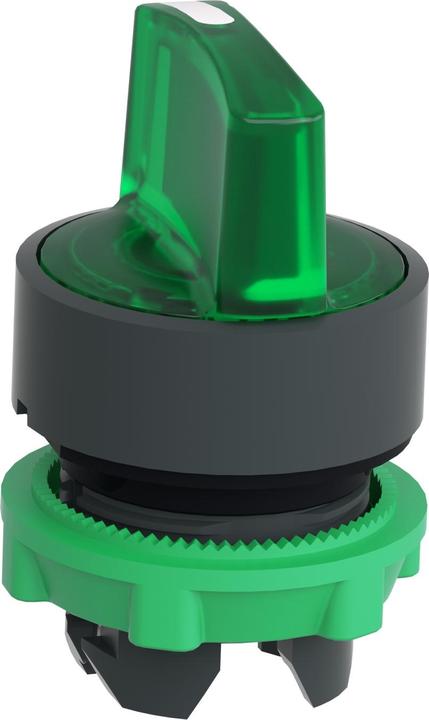

Schneider Electric Illuminated selector switch ZB5AK1533 Manufacturer :Schneider Electric Designation :Illuminated selector switch 3-position f.LED-M.gn Type :ZB5AK1533 Number of switch positions :3 Actuating element design :short rotary handle Suitable for lighting :yes Colour of actuating element :green Colour of indicator dome :green Lens design :round Hole diameter :22.5 mm Width of opening :0 mm Height of opening :0 mm Switching function latching :no Keying :yes With front ring :yes Material of front ring :plastic Colour of front ring :black Protection class (IP), front :IP66 Protection class (NEMA) :13 Schneider Electric Illuminated selector switch ZB5AK1533: further details Front element for illuminated selector switch Harmony ZB5. Green front, plastic cover. 3 positions +/- 45°. Dimensions (WxHxD) 29x29x43 mm, mounting diameter 22 mm, weight 0.016 kg. It provides clear help in setting your machines in different operating modes, even in darker control rooms, and with clear visual feedback. Mechanical life 1000000 cycles. Head shape round, standard. With high vibration and chemical resistance, ambient temperature -40 to +70 degrees C. The modular plastic range with 22mm mounting dimension combines easy installation, efficiency, modern design, flexibility with highest robustness. UL listed, CSA, RINA, LROS (Lloyds register of shipping), GL, DNV, BV certifications. Product standards according to EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-4, CSA C22.2 No 14, EAN: 3389110906219.
