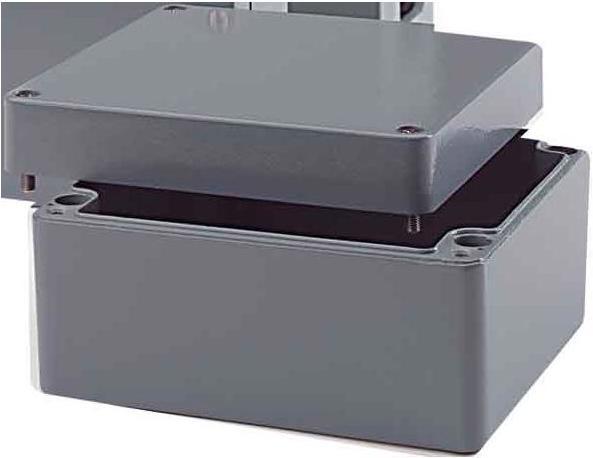

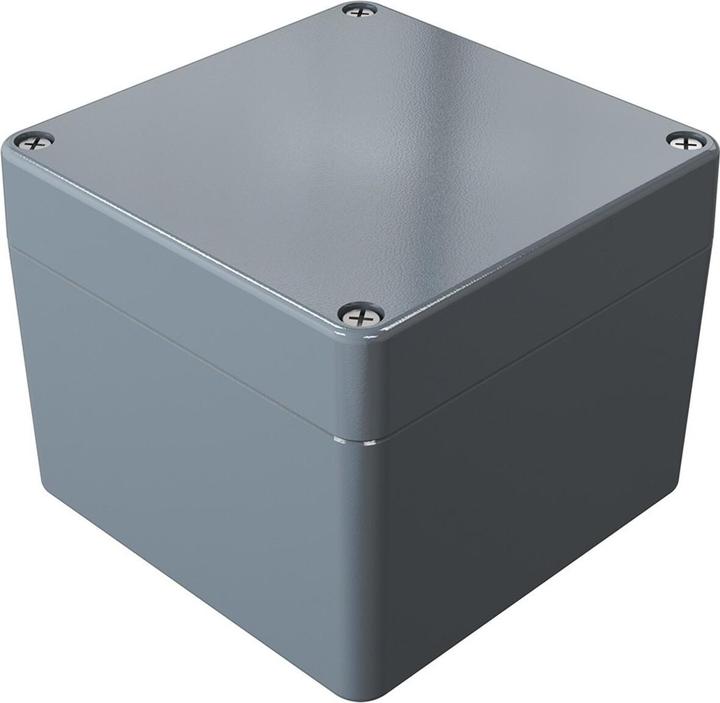

Rose System Enclosure 011010080

Manufacturer: Rose System
Designation: Enclosure 100x100x80
Type: 011010080
Mounting type: other
Type of cover: lid
Lid design: closed
Type of door: none
Transparent lid/door: no
With lock: no
Height: 100 mm
Width: 100 mm
Depth: 81 mm
Installation depth: 74 mm
Color: gray
RAL number: 7001
Material of the enclosure: aluminum
With mounting plate: yes
Suitable for outdoor use: yes
Suitable for lightning protection: no
Protection class (IP): IP66
Impact resistance: IK09
Function maintenance: none

The robust aluminum die-cast enclosures offer a standardized enclosure system for industrial applications with their comprehensive product range of over 40 sizes, from 45 x 50 x 30 mm to 600 x 600 x 200 mm. They are ideal for housing electrical and electromechanical components, such as terminals, push buttons, switching elements, and electronic assemblies with circuit boards. A standardized yet customizable accessory program allows us to respond to individual customer requirements and offer specified products. Their technical properties make the enclosures versatile and provide a wide range of applications in classical mechanical engineering as well as in nearly all industrial sectors. Robust aluminum enclosure for mechanical engineering and automation technology. Mounting options for mounting rails and plates. Usable in wide temperature ranges.
