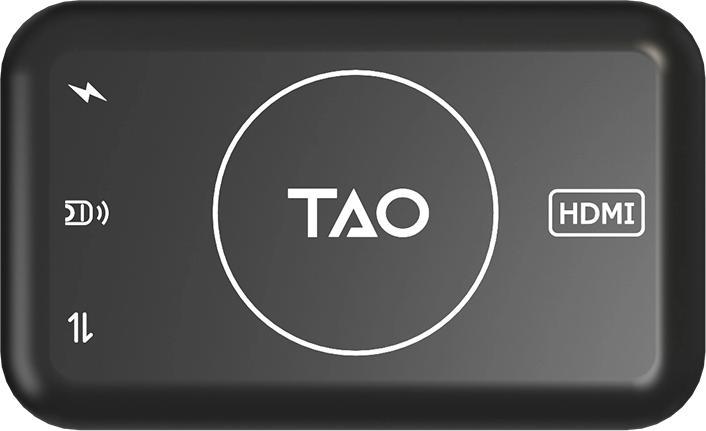

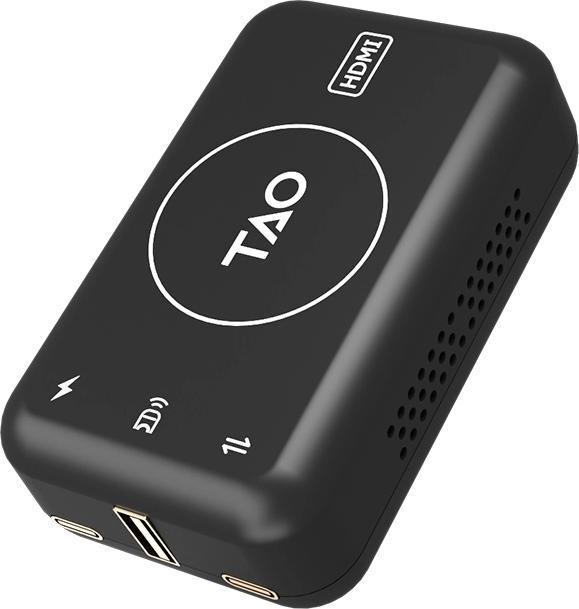

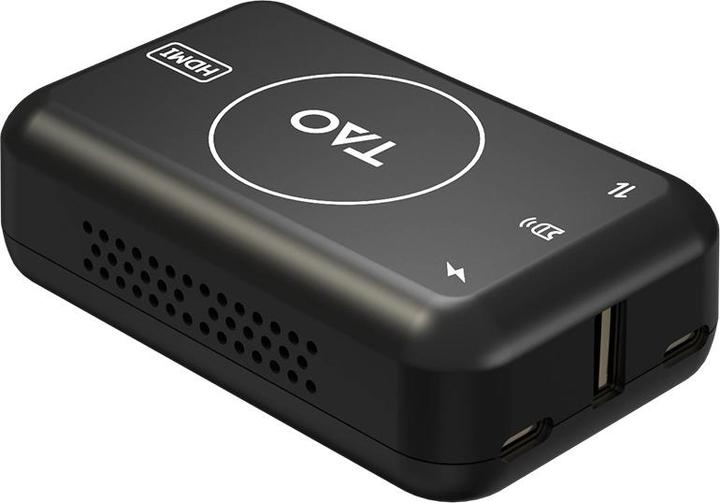

Webcam and ePTZ camera adapter from USB-C (UVC) to HDMI 2.0

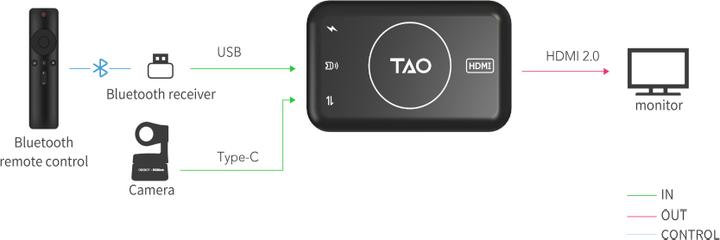

The Tao 1Tiny is the essential accessory for users of compact webcams and ePTZ cameras that only have a USB-C output. The adapter converts a signal of up to 4K30p at the USB-C output of UVC-compatible cameras to HDMI 2.0 (up to 4K), allowing them to be used in the HDMI workflow, such as on an HDMI video mixer or monitor/projector. The converter is extremely compact at 9x5x3 cm. Power is supplied via an included USB-C cable, requiring an additional USB-C power adapter or another USB-C power source like a notebook.

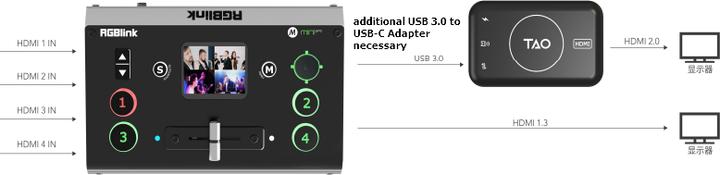

In conjunction with RGBlink video mixers, the Tao 1Tiny provides a second HDMI video output. This requires an additional USB 3.0 adapter to USB-C, which connects the mini mixer to the Tao 1Tiny.

Features:

• 4K UVC camera to HDMI conversion
• Low power consumption
• Power supply via standard USB-C PD power supplies
• Supports USB Bluetooth controls

Technical specifications:

Connections:

• Input: 1×USB-C for UVC compatible cameras | 1 x USB 2.0 USB-A for Bluetooth controller
• Output: HDMI 2.0 1x HDMI-A
• Power: 1x USB-C

Performance:

• Input resolution: Type C, SMPTE 720p@25/30/50/60 | 1080p@30/50/60 | 2160p@30, VESA 1280×720@30/50/60 | 1280×768@60 | 1920×1080@25/30/50/60 | 3840×2160
• Output resolution: HDMI, SMPTE 720p@25/30/50/60 | 1080p@30/50/60 | 2160p, VESA 1280×720@30/50/60 | 1280×768@60 | 1920×1080@25/30/50/60 | 3840×2160@30
• Supported standards: HDMI 2.0, USB 3.0
• Decoding formats: MJPEG, YUV, H.264
• Compatibility: Camera with UVC1.1/UVC1.5 protocol

Power:

• Input voltage: 5V/2A
• Max. Power: 10W

Environmental conditions:

• Temperature: 0°C ~ 55°C
• Humidity: 20% ~ 55%

Physical properties:

• Weight: 0.2kg
• Dimensions: 90.5mm x 55.5mm x 27.2mm

Scope of delivery:

• 1x RGBLink TAO 1Tiny
• 1x USB-C connection cable
• Additional USB-C adapter or USB-C power source required for operation.
