Purelink Transmitter PT-HDBT-1020HU-TX HDBaseT

Extender
Ratings
BrandMore from Purelink
Currently out of stock
Free shipping starting at 39,–

Product details

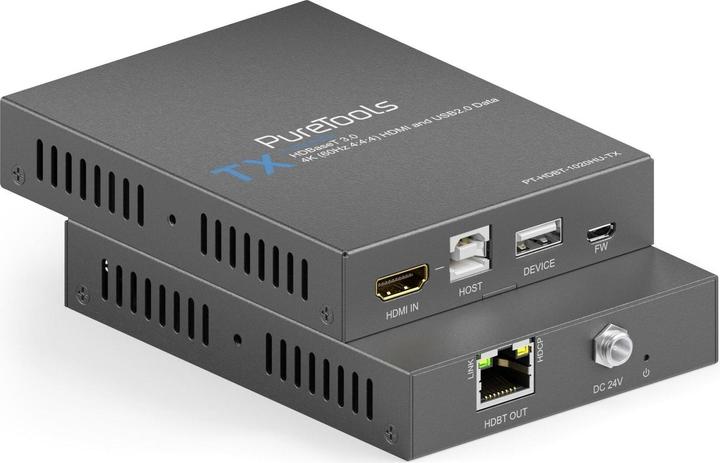

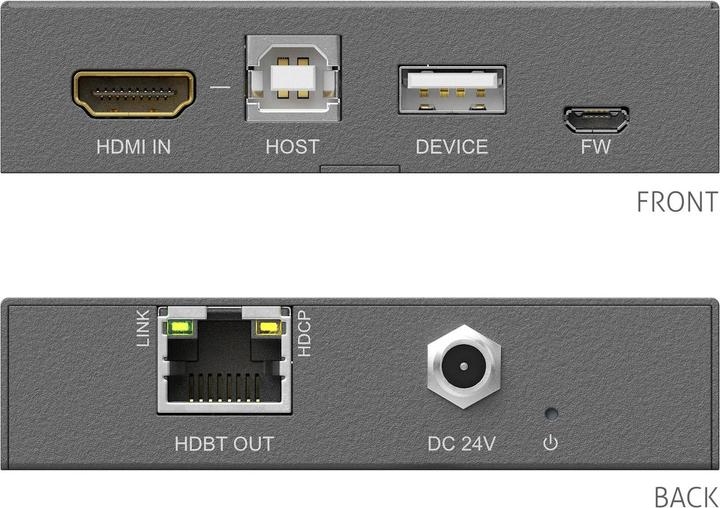

PureTools - HDBaseT 3.0 HDMI and USB Transmitter - HDBaseT 3.0 4K (60Hz 4:4:4) HDMI and USB2.0 data. Connection Side A: HDMI, USB-A port, USB-B port. Connection Side B: HDBaseT. Max resolution: 4K. HDBaseT V3.0 for video and data transmission with full bandwidth up to 100 m at 4K and 1080p (4K 60Hz 4:4:4 limited to 80 m, 4K 60Hz 4:2:0 100 m). HDMI connection and USB-B host for video and USB2.0/1.1 data, USB-A connection for hands-free use. Professional metal housing with mounting bracket. The PT-HDBT-1020HU-TX is an uncompressed 18G-HDBaseT3.0 transmitter that can transmit an HDMI video signal plus USB2.0 data over distances of up to 100 m at 4K @60Hz / 1080p @60Hz via a CAT6A cable. The transmitter features an HDMI port and a USB-B host port for combined video and USB2.0/1.1 data, as well as an HDBT output. It provides an ideal AV interface for remote connection to a standard PC. Use in conjunction with PT-HDBT-1020HU-RX for HDMI and USB connectivity on the receiver side or with PT-HDBT-1020C-RX for direct USB-C data and video connections. Adaptable HDBaseT 3.0 KVM extension system - HDMI and USB transmitter. PureTools HDBaseT 3.0 HDMI and USB transmitter - 18 Gbps (4K 60Hz 4:4:4) and HDCP 2.2 support, HDBaseT V3.0 for full bandwidth video and data transmission up to 100 m at 4K and 1080p, HDMI connection and USB-B host for video and USB2.0/1.1 data, USB-A connection for hands-free use, bidirectional 24-48V PoC, professional metal housing with mounting bracket.

Key specifications

Product type
Extender
Main device port
HDMI, USB Type-A, USB Type-B
Peripheral port
HDMI
Item number
23494341

General information

Manufacturer
Purelink
Category
Video converters
Manufacturer no.
PT-HDBT-1020HU-TX
Release date
13/12/2022

Video converter properties

Product type
Extender
Connectable devices (input)
1
Connectable devices (output)
0
Cable length
10000 cm

Connection main unit

Main device port
HDMI, USB Type-A, USB Type-B

Peripheral port

Peripheral port
HDMI

Power supply

Power source
24V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
12 cm
Width
9 cm
Height
2.20 cm
Weight
440 g

Package dimensions

Length
19 cm
Width
17 cm
Height
6 cm
Weight
631 g
