Series: UTTB 4 Clipline
Wire size: 26 → 10 AWG
Cable cross-section: 4 mm²
Color: Gray
Rated current: 30 A
Number of levels: Double
Connection type: Screw
Operating voltage: 500 V
Maximum operating temperature: +120 °C

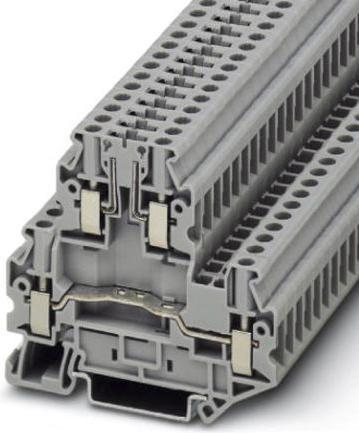

Connection terminal blocks with double-deck design UTTB (UT COMBI) CLIPLINE with screw connection. Potential management on two levels. 50% reduced space compared to terminal blocks with only one level. Separate potentials can be managed since each level has two bridging shafts. Cross-connection with any number of terminal blocks via the FBS through-connector bridging system. Replacement, for example, for equipping with robust connectors in the control cabinet. The UTTB screw flange snaps directly onto the DIN rail. Same shape as corresponding terminal blocks. Due to the staggered arrangement of the screw bases, only the basic flange is needed between two adjacent connectors.
