Supply voltage = 24 Vdc
Safety contacts = 2 NC contacts
Housing material = plastic
Connection type = 5 m cable
Switch Type = Rectangular
Connection type = Prewired
Series = F3S-TGR-N_C
Switching distance = 17 mm
Protection class = IP67
Actuator included = Yes
Dimensions = 88 x 50 x 13 mm

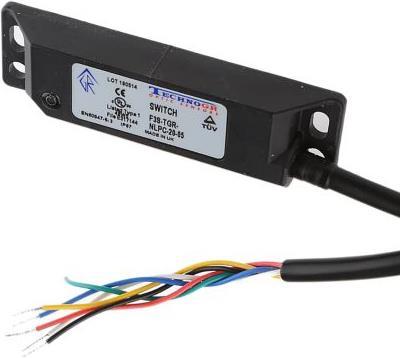

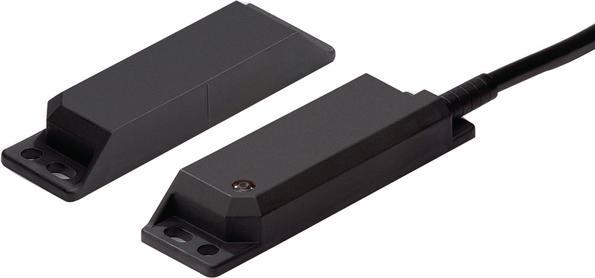

Approved according to EN standards, certified by TÜV Rheinland, conformity with EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1. The models F3S-TGR-N_C are coded. Actuator included in scope of delivery. For a suitable control unit, see Omron's G9SA or G9SB or NE1A DeviceNet system. Contactless safety switch F3S-TGR. The contactless safety switches F3S-TGR are designed for locking hinged, sliding or removable safety doors. Plastic and stainless steel switches are available. The latter are ideal for the high hygiene requirements in the food industry. The switches have a long detection range, for example to avoid false signals from a poorly aligned door. Contactless means no abrasion, no particles Excellent detection of mechanical tolerances Can be operated behind stainless steel fittings Screw hole covers. F3S-TGR-N_C Switch. Connection of up to 3 switches in series LED for simple diagnostics Electronic output (potential-free optocoupler output) Protection class IP67. F3S-TGR-N_R Switch. Connection of up to 6 switches in series Reed contacts Protection class IP67.
