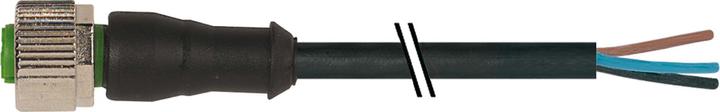

M12 Bu. 0° free cable end PVC 4x0.34 sw UL/CSA 5m.

Technical data:

• Connection side A (sensor actuator): M12 socket, straight
• Connection side B (sensor actuator): Cable, open end
• Outer diameter: 5.0 mm
• Thread type cable connection and mounting: M12
• Product part no.: 7000-12221-6140500
• Content: 1 pc.
• Cable diameter: 5.0 mm
• Cable colour: Black
• Cable length: 5.00 m
• Coding: A
• Wire cross-section (sensor/actuator wiring): 0.34 mm²
• Jacket material: PVC
• Rated voltage: 300 V/AC
• Rated current: 4 A
• Product type: Sensor/actuator connector, unassembled
• RoHS compliant: Yes
• Protection class: IP65, IP66K, IP67 (when mated)
• Temperature (max.): +80 °C
• Temperature (min.): -30 °C
• Type (manufacturer type): 7000-12221-6140500

Other technical data:

• Type: 12221
• No. of cores/cross-section: 4× 0.34 mm²
• Core insulation: PVC (brown, white, blue, black)
• Bending radius (moved): 10× outer Ø
• Temperature range (moving): -5 to +80 °C
• Cable identifier: 614
• Cable weight [g/m]: 40.70
• Material (conductor): Stranded copper wire, bare
• Resistance (conductor): max. 60 Ω/km (20 °C)
• Single wire Ø (conductor): 0.15 mm
• Construction (conductor): 19× 0.15 mm (strand class 5)
• AWG: similar to AWG 22
• Material (core insulation): PVC
• Core Ø incl. insulation: 1.25 mm ±5%
• Core colour/numbering: brown, black, blue, white
• Stranding: 4 cores stranded
• Shielding: no
• Chemical resistance: good oil, petrol and chemical resistance
• Thermal resistance: flame retardant according to UL 1581 VW1 / CSA FT1
• Test voltage: 2000 V AC
• Bending radius (fixed): 5× outer Ø
• Rated impulse withstand voltage: 2.5 kV
• Locking of slots: Screw thread (M12×1 mm) recommended tightening torque 0.6 Nm, self-locking
• Material (locking): Zinc die-cast, matt nickel-plated
• Pollution degree: 3.
