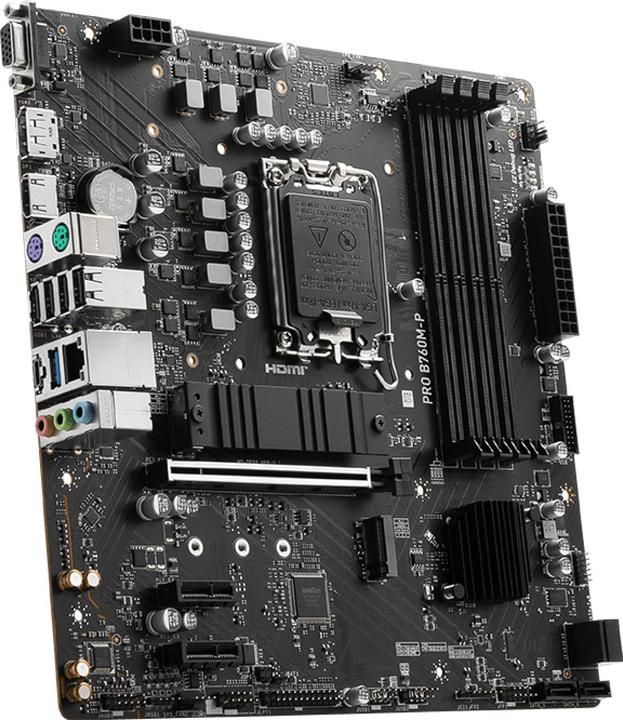

MSI PRO B760M-P
LGA 1700, Intel B760, mATXPrice in EUR including VAT
free shipping
The PRO series is tailored for professionals from all walks of life. The product range is characterized by impressive performance and high quality, while also aiming to provide users with an incredible experience. Users who value productivity and efficiency can rely on the MSI PRO series to support them in multitasking and enhancing their efficiency.
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Item number | 30001143 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E02-009R |
Release date | 16/5/2023 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6600 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Transfer rate | 6600 MT/s |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

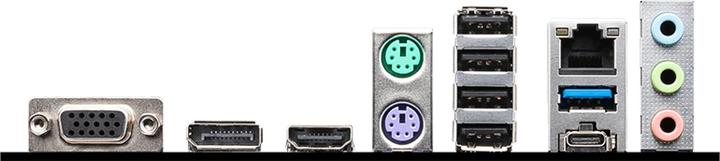

Video connections | D-Sub (1x), DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 1.4 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (1x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 243.84 mm |
Width | 243.84 mm |
Height | 56 mm |
Weight | 909 g |
Length | 30.90 cm |
Width | 28 cm |
Height | 6.30 cm |
Weight | 902 g |
