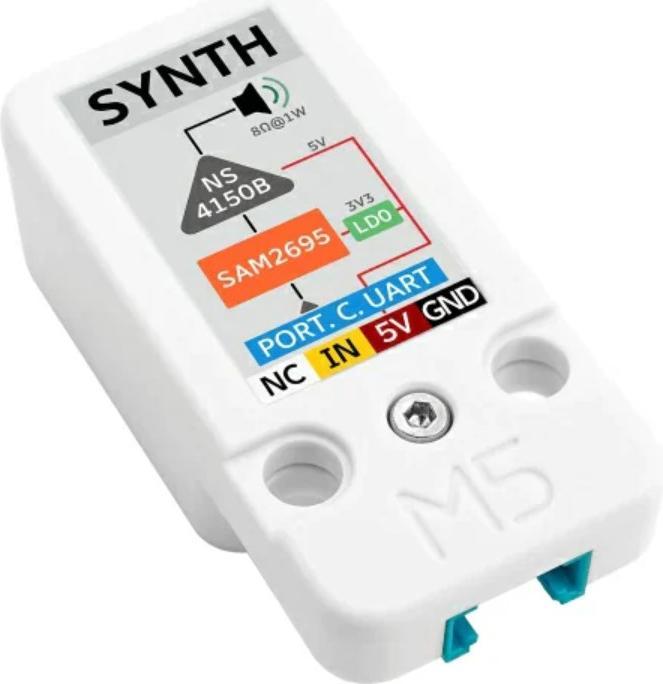

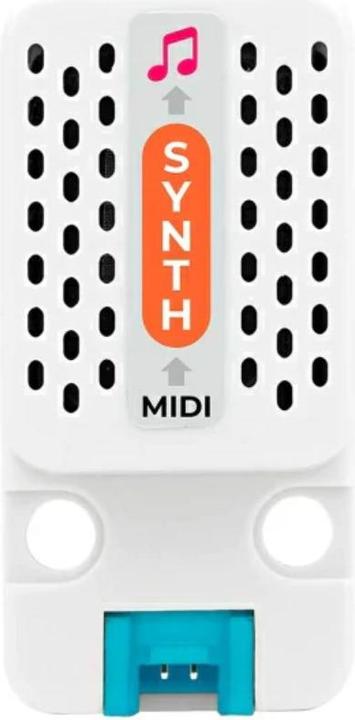

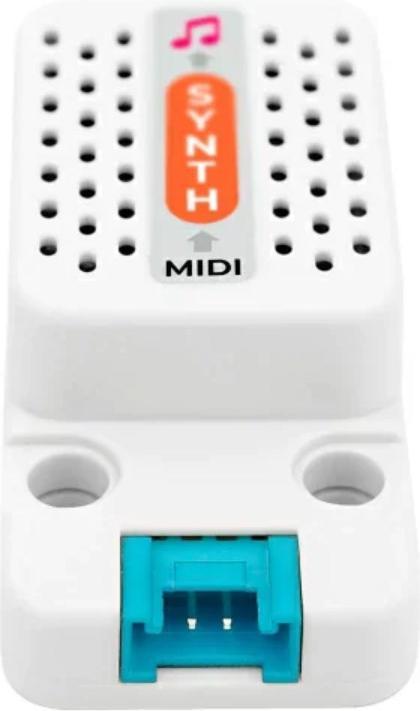

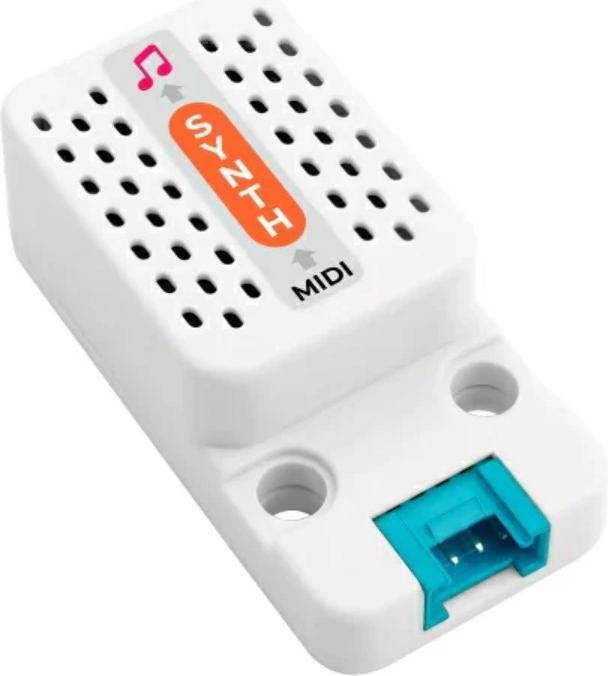

The M5Stack MIDI Synthesiser Unit SAM2695 is an audio module specifically designed for MIDI sound systems, offering a wide range of audio synthesis and processing possibilities. Equipped with the SAM2695 audio synthesiser, this unit accepts standard MIDI signals via serial communication and allows you to create high-quality music productions, live performances and electronic music. Whether you're working in a music production studio, performing live on an electronic music stage or creating innovative STEAM education projects, this synthesiser unit gives you the flexibility and quality you need. With functions such as multi-channel instrument output and customisation options for four-stage EQ and reverb parameters, you can shape and refine the sound to your liking.

Features:
Features the SAM2695 audio synthesiser chip for high-quality audio synthesis.
Supports serial port communication for easy integration into MIDI systems.
Includes a powerful NS4150B Class D amplifier chip for clear and excellent audio output.
Supports standard MIDI protocol for universal compatibility.
Enables configuration of multi-channel instrument source outputs for multi-layered musical effects.
Supports customisation of four EQ, reverb and other parameters for individual sound design.
Programmable in various environments such as Arduino and UIFlow.

Application examples:
Improvisation and live performances for unique musical experiences.
Music production studios for the creation of professional tracks.
Electronic music stages for impressive live shows.
STEAM education projects to promote creative and technical skills.

Technical data:
Manufacturer: M5Stack
Manufacturer SKU: U178
Audio synthesiser chip: SAM2695
Power amplifier chip: NS4150B
Sound standard protocol: MIDI
Loudspeaker: 8Ω@1W
Operating temperature: 0-40°C
Dimension: 48 x 24 x 16mm
Weight: 15.5g

Scope of delivery:

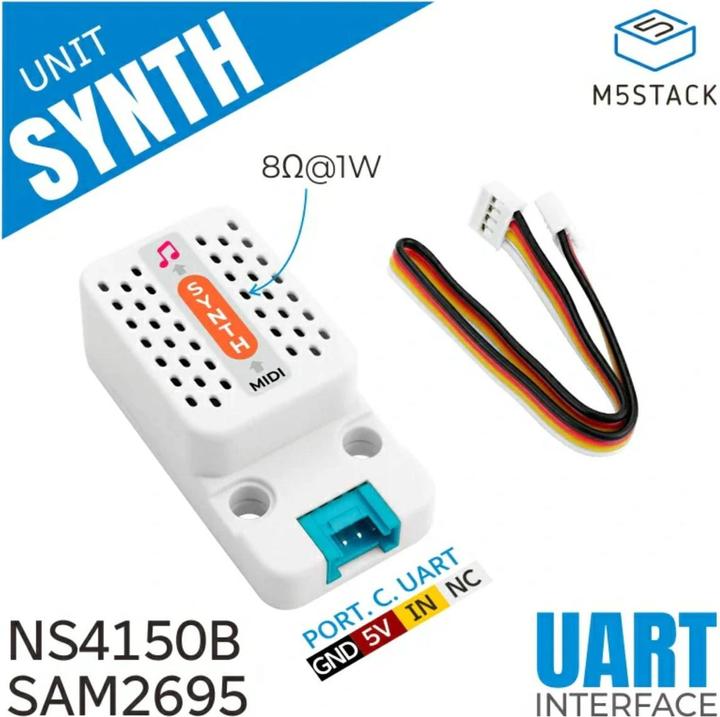

1x M5Stack MIDI Synthesiser Unit SAM2695
1x M5Stack Grove cable 20cm.
