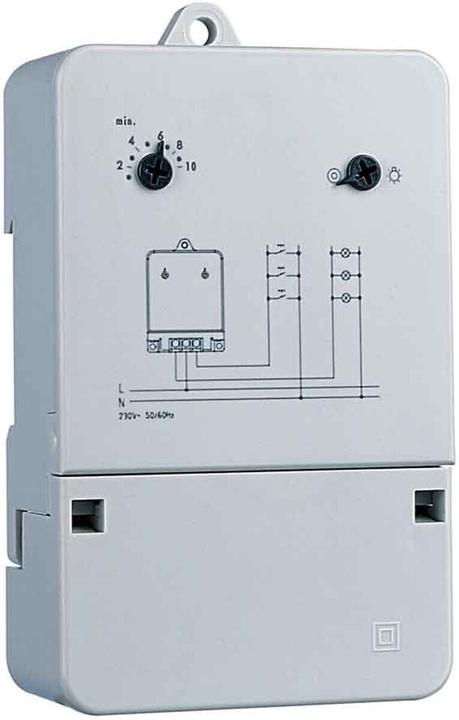

Legrand Stair Light Timer Rex600Plus/49783

Manufacturer: Legrand
Description: Stair light timer 230V, 50/60Hz
Type: Rex600Plus/49783
Function: Other
Mounting type: Surface-mounted
Installation depth: 34 mm
Number of contacts as normally closed: 3
Number of contacts as normally open: 3
Control voltage: 230 V
Control voltage type: AC
Frequency of control voltage: 50-60 Hz
Rated switching current: 10 A
Max. switching current (cos phi 0.6): 5 A
Fallback delay: 0.5-10 min
Push button glow lamp current: 50 mA
Wiring type: 3-wire circuit
Switch-off pre-warning: Other
Selectable pulse function: No
Follow-up switching: None
Supply voltage: 230 V
Type of supply voltage: AC
Max. incandescent lamp load: 800 W
Max. fluorescent lamp load: 1000 VA
Max. fluorescent lamp load (parallel compensated): 1000 VA

Additional details:
Legrand Rex600Plus, surface-mounted stair light timer, electronic, extremely quiet, operating voltage 230 V 50/60 Hz, 1 normally closed contact, time range: 0.5 - 10 min, can be followed up at any time, only 3-wire connection identification. For replacement in existing systems, not permitted in new systems. Manual switch for toggling between minute light and continuous light, glow lamp current max. 50 mA, dimensions (HxW): 112 x 72 mm. EAN: 4010957497835.
