Krüger-Werke GmbH Cable Protection Pipe Seal RDSS-100

Manufacturer: Krüger-Werke GmbH
Designation: Cable Protection Pipe Seal
Type: RDSS-100
Design: Gel Sleeve
Cable Diameter: 0 to 100 mm
Pipe Diameter: 0 to 100 mm
Wall Penetration Diameter: 75 mm
Number of Cables: 2
Mounting Type: Other
Pressure: 0.3 bar
Dismantling Possible: Yes
Cable Bundling Possible: Yes

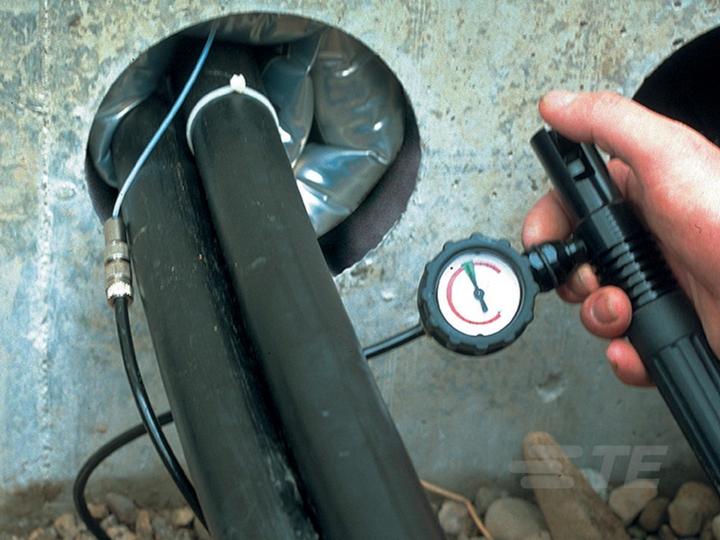

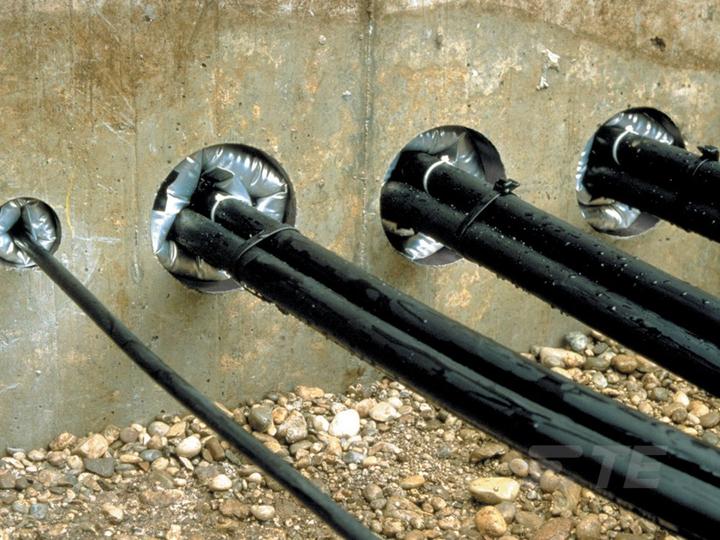

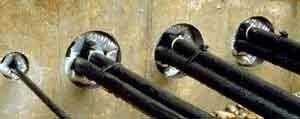

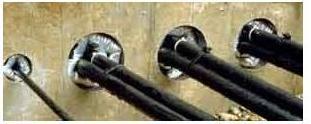

Cable protection pipe seal for an internal pipe diameter of 75-120 mm. System with sealing sleeve and sealing star. Flexible plastic laminate bag coated on both sides with sealing mass strips. Waterproof sealing of energy cables in plastic pipes, metal pipes, and cement pipes, as well as in core drillings. The patented gel valve prevents pressure loss and ensures the long-term tightness of the system. Easy dismantling. A round, smooth-walled inner surface is required. When used in installation pipes, a pressure resistance of at least 3 bar must be observed. Waterproofness was tested under a pressure of 0.3 bar while subjecting the cables to vibration, bending, torsion, tension, and thrust. Additionally, chemical and bacterial resistance was tested. Load change tests were conducted according to VDE 0278 Part 1 with conductor temperatures of up to 90 °C. Through measurement and calculation of the diffusion rate, an average lifespan of 30 years was determined. The sealing behavior after 30 years was simulated and confirmed through tightness tests with reduced internal pressure. EAN: 4015899572565.
