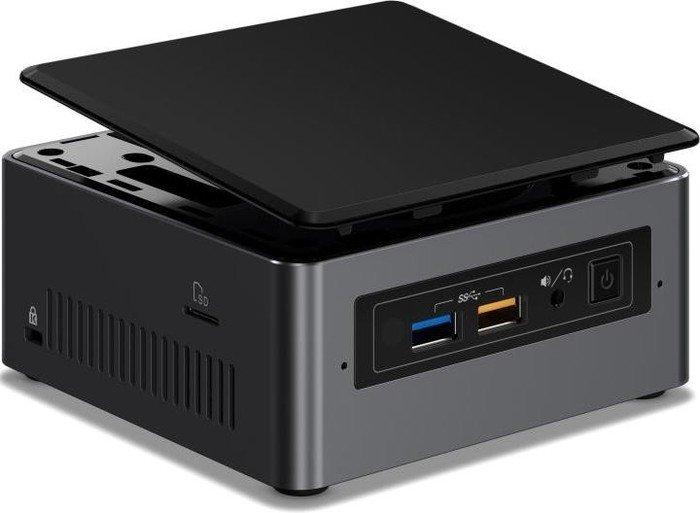

Intel NUC Baby Canyon NUC7i3BNH

Intel Core i3-7100U
9Ratings
BrandMore from Intel
Currently out of stock

Product details

The barebone is equipped with a seventh-generation Intel Core i3 processor, which, with its significantly improved graphics unit compared to the previous generation, can handle more demanding graphics and multimedia applications. You can look forward to phenomenal image quality, as the integrated Intel HD Graphics 620 supports not only DirectX 12 and OpenGL 4.4 but also displays with 4K resolution. The NUC7i3BNH features four fast USB 3.0 ports, one of which has a charging function, allowing you to quickly and easily charge your tablet or smartphone. With 1000 Mbps LAN and modern AC-standard Wi-Fi, network connectivity is fast and straightforward, whether wired or wireless. For mass storage, there is an M.2 slot and a 2.5" bay with SATA 6 Gbps connectivity available.

Key specifications

Number of processor cores
2 -Core
Graphics card model
HD Graphics 620
Internal connection options
M.2 (1x), S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
6080228

General information

Manufacturer
Intel
Category
Barebones
Manufacturer no.
BOXNUC7i3BNH
Release date
20/1/2017

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i3-7100U
Clock frequency
2.40 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
4
Socket
LGA 1356
Max. TDP
15 W
Processor properties
64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x)

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory chip compatibility
DDR4-2133
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
HD Graphics 620
Hardware application range
Multimedia
Max. connected monitors
1 x

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
Data storage controller
Intel onboard
RAID configuration
0, 1
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
Bluetooth, WLAN
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac
Wi-fi frequency
2.4 GHz, 5 GHz
Bluetooth version
4.2

Video connections

Video connections
HDMI (1x)

Audio connections

Audio outputs
Headphones Out (1x)

Card reader properties

Memory card type
microSDHC, microSDXC

Power supply properties

Power
65 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
External power supply, VESA kit

Product dimensions

Width
115 mm
Length
111 mm
Height
51 mm

Package dimensions

Length
14 cm
Width
12.50 cm
Height
12 cm
Weight
1.15 kg
