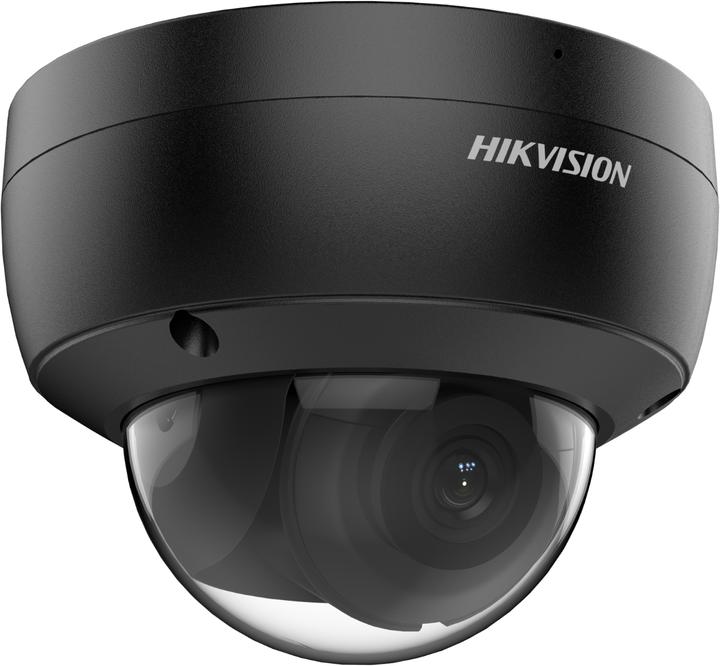

Hikvision DS-2CD2146G2-ISU
2688 x 1520 pixelsProduct details
The Hikvision DS-2CD2146G2-ISU is a state-of-the-art network camera specifically designed for outdoor use. With a native resolution of 4 megapixels, it delivers impressive image quality and allows for a maximum video frame rate of 30 frames per second. This dome camera is not only waterproof but also equipped with a variety of features that make it an ideal solution for monitoring outdoor areas. The camera supports PoE (Power over Ethernet), simplifying installation as it can be powered with both electricity and data through a single cable. Additionally, it offers night vision capabilities, ensuring clear visibility even in low light conditions. The DS-2CD2146G2-ISU is also equipped with a microphone and a motion detector, further enhancing its functionality and making it a smart choice for modern security solutions.
- Maximum image resolution of 2688 x 1520 pixels
- Viewing angle of 103 degrees (horizontal) and 123 degrees (diagonal)
- Supports H.265 and H.265+ compression for efficient storage
- Compatible with smart home systems
- Equipped with a microphone and motion detector.
Network camera type | Outdoor surveillance camera |
Network interface | RJ45 port |
Power supply | PoE |
Lens type | Prime lens |
Type of memory | Local network, Memory card |
Advanced functions | Microphone, Motion sensor, Night vision function |
Item number | 16680887 |
Manufacturer | Hikvision |
Category | Network camera |
Manufacturer no. | DS-2CD2146G2-ISU(2.8MM)(C)(BLACK) |
Release date | 1/9/2021 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Metal |
Network camera type | Outdoor surveillance camera |
Camera design | Dome camera |
Camera resolution | 4 Mpx |
Max. picture resolution | 2688 x 1520 pixels |
Viewing angle (H) | 103° |
Viewing angle (V) | 55° |
Viewing angle (D) | 123° |
Lens type | Prime lens |
Focal length | 2.8 mm |
Aperture | f/1.4 |
Image sensor type | CMOS |
Refresh rate | 30 FPS |
Shutter speed | 1/3 - 1/100000 s |
Tilt range | 0 - 75° |
Swivel range | 0 - 355° |
Advanced functions | Microphone, Motion sensor, Night vision function |
Remote access | Web browser |
Video file formats | H.264, H.264+, H.265, H.265+, MJPEG |
Audio formats | AAC-LC, G.711, G.722, MP2L2 |
Protection type (IP code) | IP67 |
Connection A | N connection |
Memory card type | microSD, microSDHC, microSDXC |
Type of memory | Local network, Memory card |
Network interface | RJ45 port |
Max. port speed | 100 Mbit/s |
Smart Home | Not compatible |
Installation place | Ceiling, Wall |
Application range | Network |
Power supply | PoE |
PoE Standard | 802.3af (PoE) |
CO₂-Emission | |
Climate contribution |
Height | 92.20 mm |
Length | 121.40 mm |
Width | 150 mm |
Weight | 580 g |
Length | 15.70 cm |
Width | 15.30 cm |
Height | 14.60 cm |
Weight | 721 g |
