Harting HAN D plug connector, insert type 3socket crimp connection max 2.5mm2, 10A8 poles

Price in EUR including VAT, plus shipping
was EUR14,74
Ratings
BrandMore from Harting
Delivered between Wed, 18/6 and Sat, 21/6
More than 10 items in stock at supplier

Product details

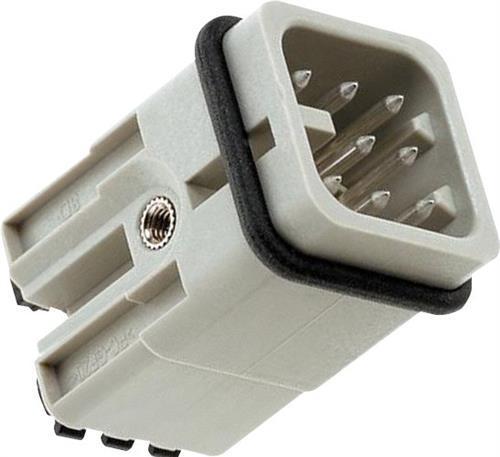

Harting contact insert crimp 09360083001
Manufacturer: Harting
Designation: Contact insert crimp
Type: 09360083001
Number of power contacts: 8
Contact insert without contacts: No
Contact design: Pin
Number of poles: 8
Material of connector insert: Thermoplastic
Rated current In: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 50 V
Rated impulse voltage: 1.5 kV
Pollution degree: 3
Electrical connection type: Crimp connection
With wire protection: No
Connectable fine-stranded conductor cross-section without wire end ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material according to UL 94: HB
With protective conductor: No
Min. number of mating cycles: 500
Harting contact insert crimp 09360083001: Further details include inserts, crimp connection, pin, polyamide (PA), RAL 7032 (pebble grey), rated current: 10 A, size: 3 A, contacts: 8, conductor cross-section: 0.14 to 2.5 mm².

Key specifications

Cable + connector type
Various
Item number
32503612

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09360083001
Release date
23/1/2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09360083001
Number of cores
8 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
3.17 cm
Width
2.10 cm
Height
2.10 cm
