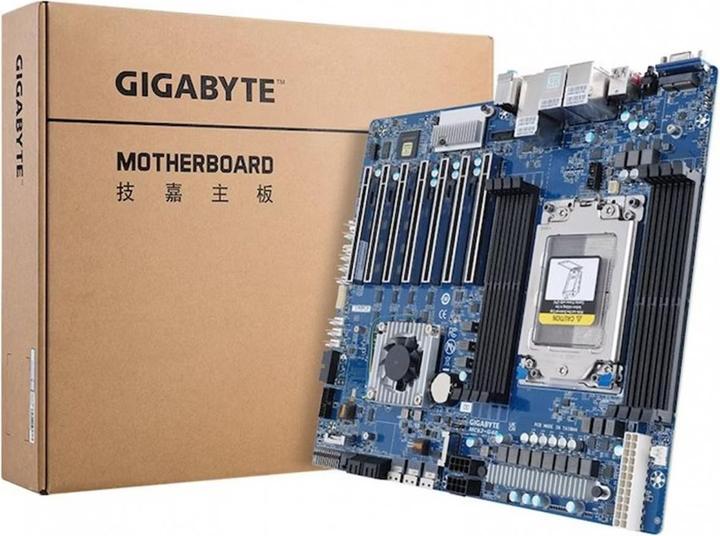

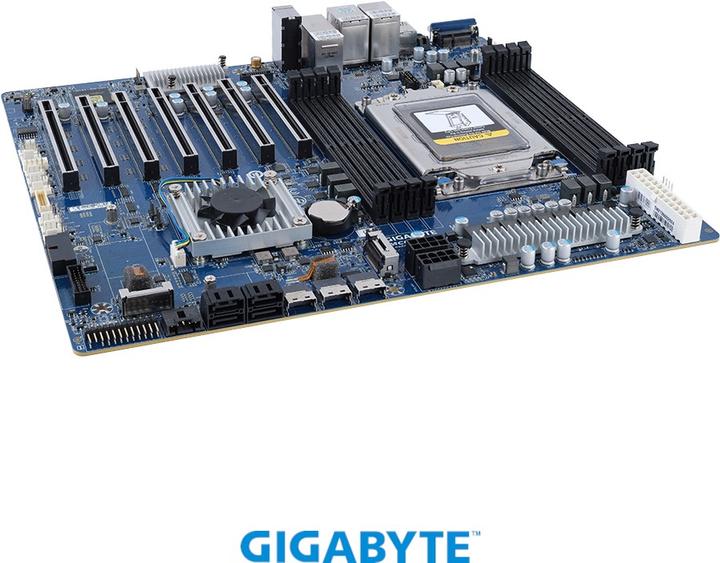

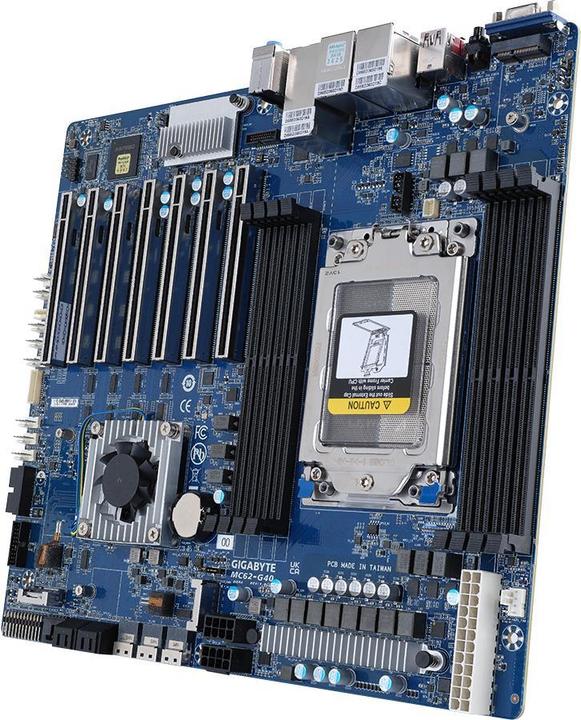

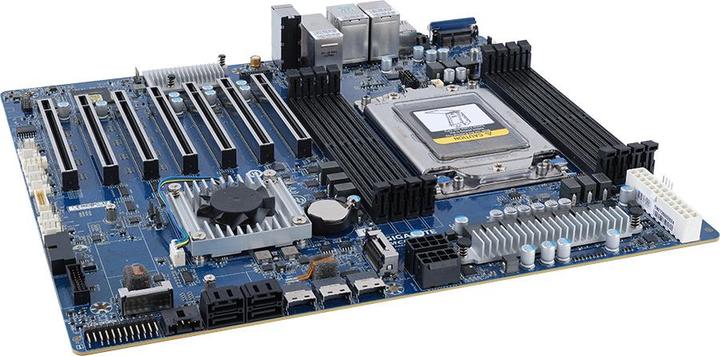

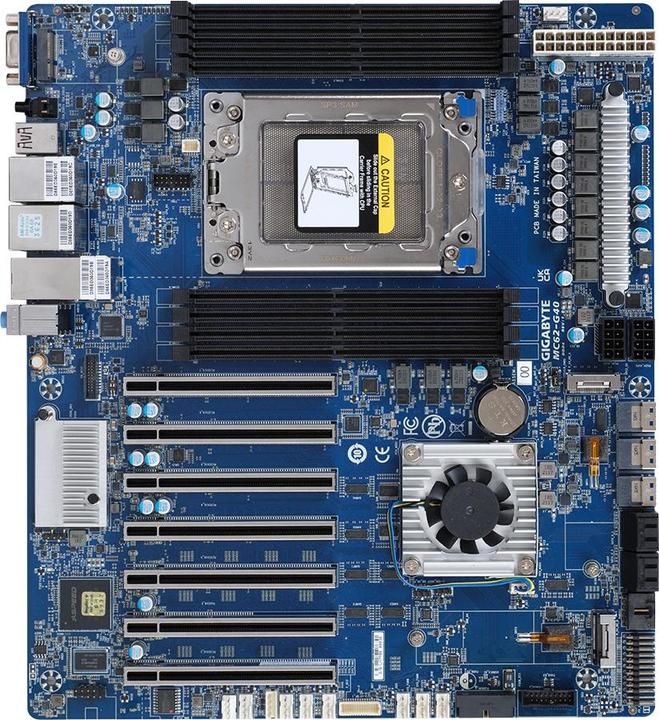

Gigabyte MC62-G40
sWRX8, AMD WRX80, SSI CEBProduct details
The Gigabyte MC62-G40 is a powerful motherboard specifically designed for the demands of AMD Ryzen Threadripper Pro processors of the 3rd generation. With an SSI CEB form factor and the AMD WRX80 chipset, this motherboard provides a robust platform for demanding applications that require high computing power. It supports up to 2048 GB of DDR4 RAM and allows for high memory speeds of up to 3200 MHz. The eight DIMM memory slots and support for ECC RAM make it ideal for professional workstations and server applications. The motherboard is equipped with a variety of connectivity options, including multiple USB 3.2 and Gigabit LAN ports, ensuring fast data transfer and network connectivity. Additionally, it offers RAID support for enhanced data security and performance.
- Supports up to 2048 GB of DDR4 RAM with ECC options
- Eight DIMM memory slots for maximum flexibility
- Integrated RAID support for improved data security
- Variety of USB ports, including USB 3.2 and USB-C
- Optimized for AMD Ryzen Threadripper Pro processors of the 3rd generation.
Processor family | Ryzen Threadripper Pro |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | S-ATA III (1x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Trusted Platform Module |
Item number | 21285783 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | 9MC62G40NR-00 |
Release date | 23/2/2022 |
Form factor | SSI CEB |
Socket | sWRX8 |
Chipset | AMD WRX80 |
Mainboard features | Trusted Platform Module |
Operating system compatibility | Linux, Windows |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Ryzen Threadripper Pro |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 2048 GB |
Memory chip | DDR4 RAM |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | D-Sub (1x), DVI |
Network connections | RJ45 10 Gigabit Ethernet (2x), RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I210, Intel X550-AT2 |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (1x) |
Expansion slot | PCI Express x16 (4x) |
Number of fan connector | 8 |

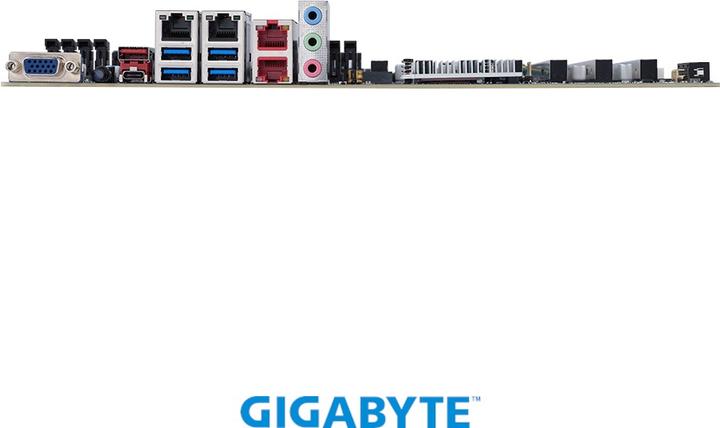

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Mainboard, Sata Cables |
Length | 267 mm |
Width | 305 mm |
Height | 267 mm |
Weight | 500 g |
Length | 35.50 cm |
Width | 28.90 cm |
Height | 6 cm |
Weight | 1.48 kg |
