Gigabyte MB GBT Intel 1700 Z790 A ELITE AX ICE
LGA 1700, Intel Z790 Express, ATXOnly 1 piece in stock
Product details

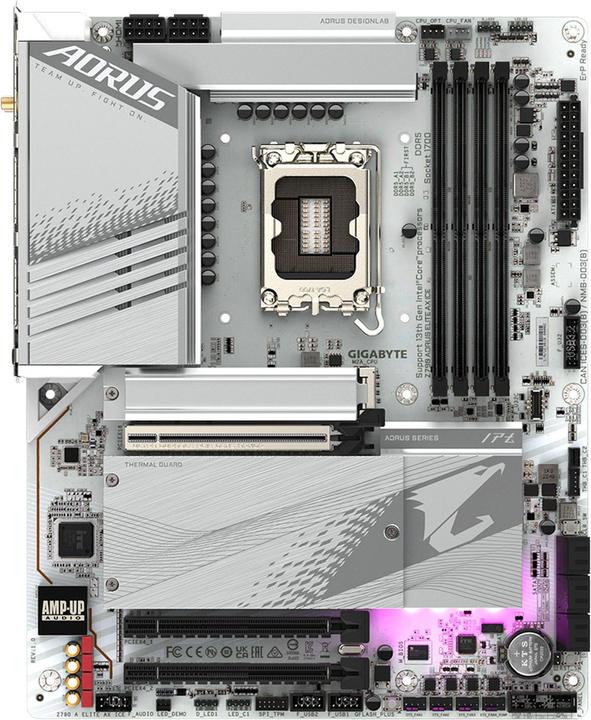

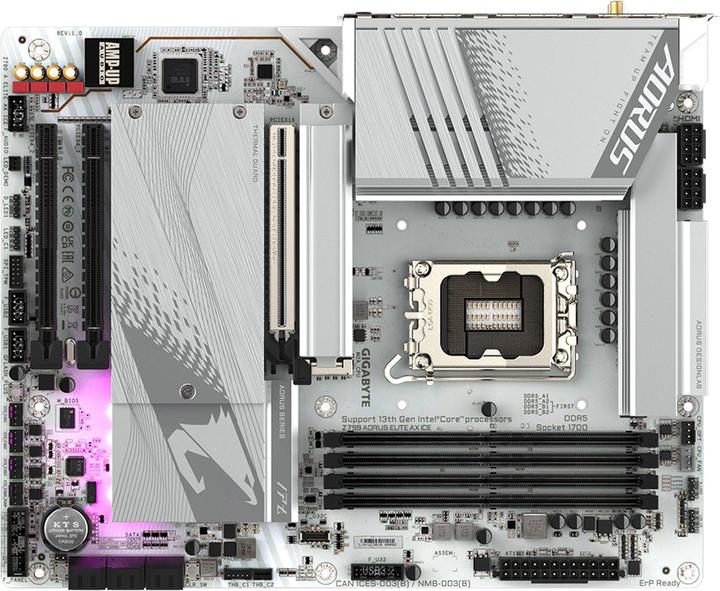

The Gigabyte Z790 Aorus Elite AX ICE is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. This motherboard is compatible with desktop processors from Intel's 12th, 13th, and 14th generation Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 7,600 MHz and is particularly well-suited for overclocking due to its outstanding power delivery.
In addition to a stable power supply with 16+1 phase VRMs, the Gigabyte Z790 Aorus Elite AX ICE boasts several features that significantly enhance your system's overclocking experience. CMOS reset and BIOS flash buttons, along with efficient VRM heatsinks, specifically improve your OC experience.
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 24-pin ATX power connector (1x), 4-pin CPU (2x), 8-pin EPS (2x), M.2 PCI/SATA Combo (1x), M.2 PCIe (4x), S-ATA III (6x), TPM Header, USB 2.0 Header (2x), USB 3.0 Header (1x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Item number | 38933397 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z790 A ELITE AX ICE |
Release date | 27/9/2023 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 Express |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

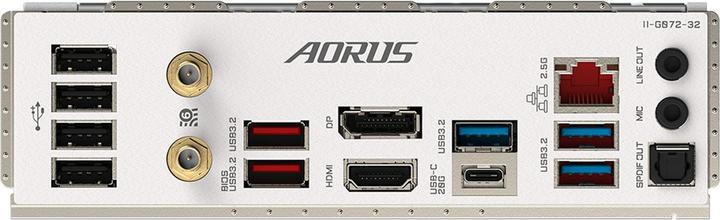

Video connections | DisplayPort (1x) |
Video connection version | Display port 1.2, HDMI 2.0 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Broadcom |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (2x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 24-pin ATX power connector (1x), 4-pin CPU (2x), 8-pin EPS (2x), M.2 PCI/SATA Combo (1x), M.2 PCIe (4x), S-ATA III (6x), TPM Header, USB 2.0 Header (2x), USB 3.0 Header (1x) |
Expansion slot | PCI Express x16 (1x), PCI Express x16 (3x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security, SATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2300 g |
Length | 34.30 cm |
Width | 31 cm |
Height | 8.90 cm |
Weight | 2.01 kg |
