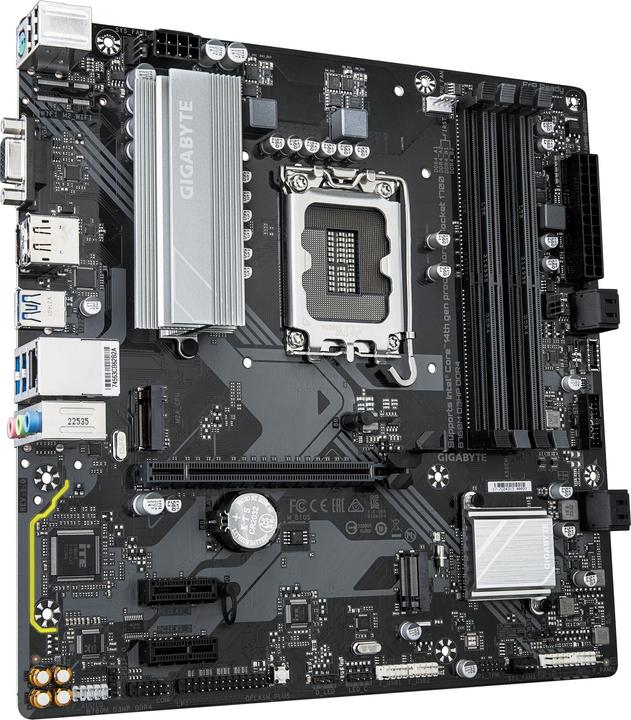

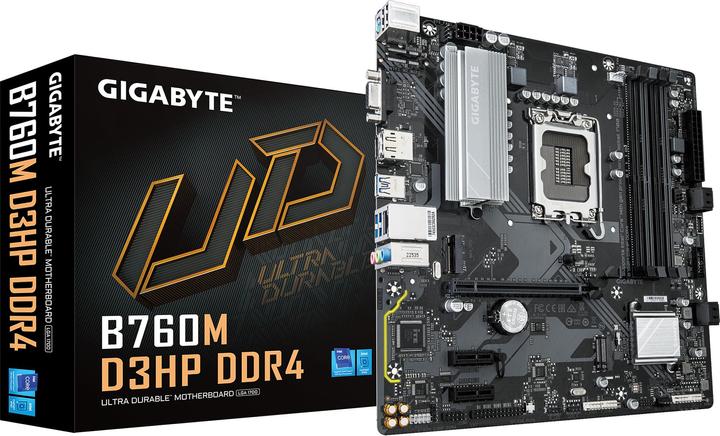

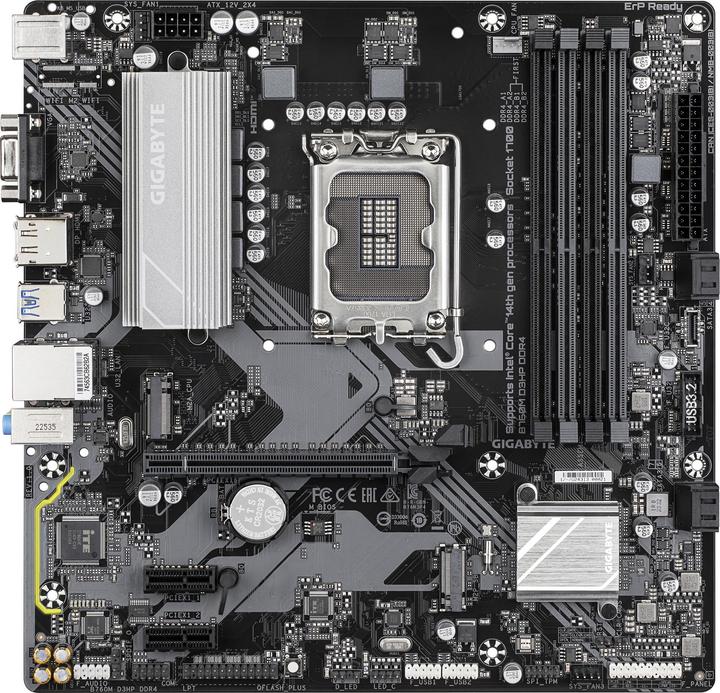

Gigabyte B760M D3HP DDR4

LGA 1700, Intel B760 Express, mATX
Price in EUR including VAT
Ratings
Delivered between Sat, 5/7 and Wed, 9/7
More than 10 items in stock at supplier
free shipping

Product details

GIGABYTE Ultra Durable motherboards, built with optimal components from the inside out, offer premium performance and a timeless platform. The ultimate in connectivity with blazing fast data transfer speeds through next-generation networking and storage. Innovative and intuitive hardware, software and BIOS interface design to personalise your style.

Key specifications

Processor family
Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (2x)
Mainboard features
Clear CMOS Button, Front panel audio connector, Parallel header, RGB header, S/PDIF header, Serial interface
Item number
46179807

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B760M D3HP DDR4
Release date
28/5/2024

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760 Express
Mainboard features
Clear CMOS Button, Front panel audio connector, Parallel header, RGB header, S/PDIF header, Serial interface
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Max. RAM OC
5333 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4300 MHz, 4400 MHz, 4800 MHz, 5000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

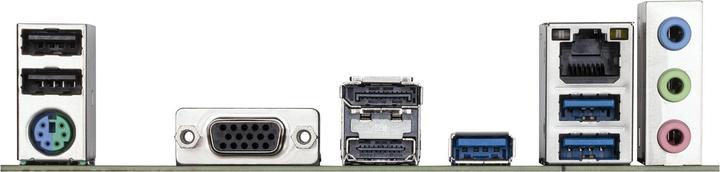

Video connections
DisplayPort (2x), HDMI (1x), VGA (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
1 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Headphone output (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (2x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China, Germany, Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton Internet Security

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
990 g

Package dimensions

Length
27 cm
Width
27 cm
Height
6 cm
Weight
900 g

Legal Notice

Product Safety

14-day cancellation right
30-day right of return
24 Months statutory warranty
