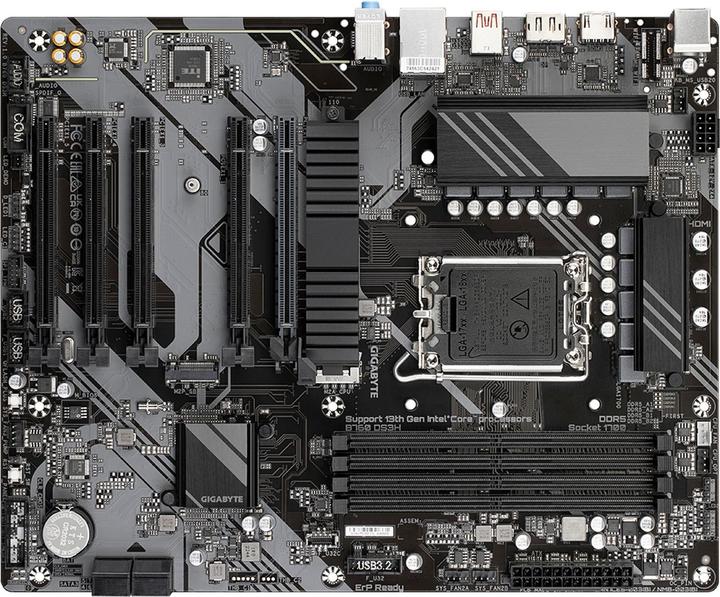

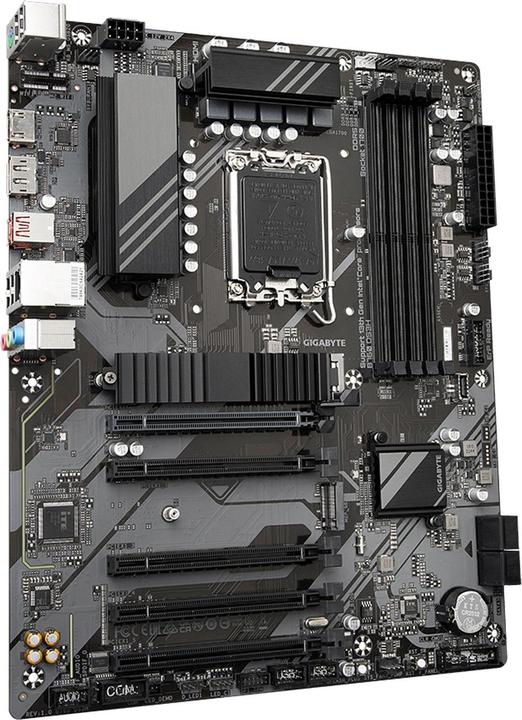

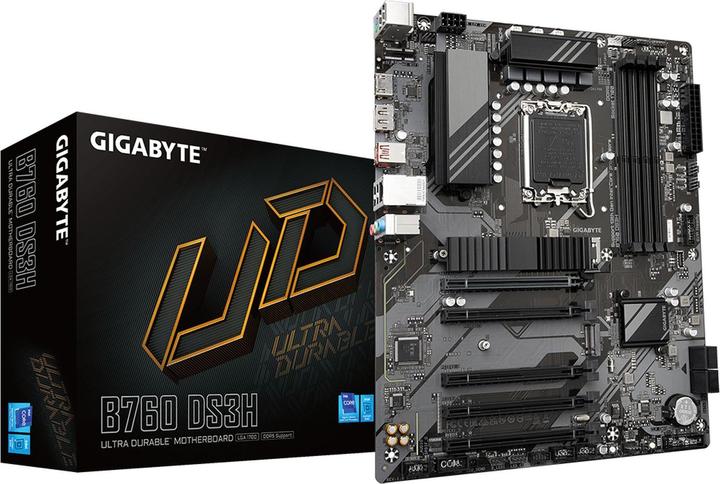

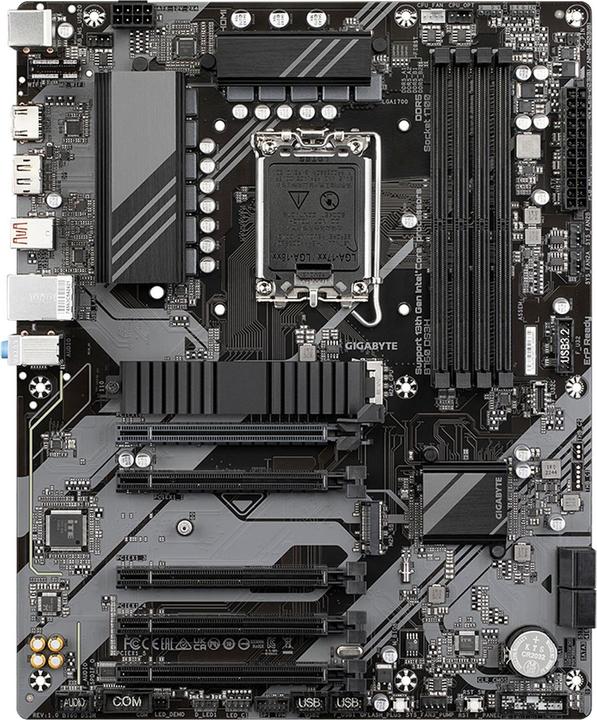

Gigabyte B760 DS3H
LGA 1700, Intel B760 Express, ATXOnly 2 pieces in stock at supplier
Product details

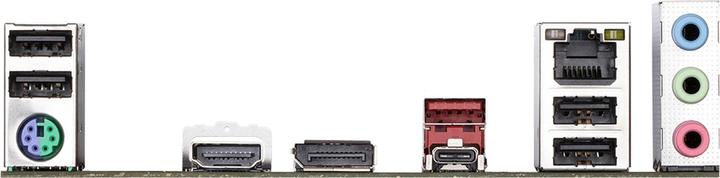

The GIGABYTE B760 DS3H is a motherboard designed for modern computer systems, equipped with the Intel B760 chipset and supporting Intel Core processors from the 12th and 13th generations. This ATX-format board offers comprehensive connectivity with PCIe 4.0 support for graphics cards and storage devices, two M.2 slots for NVMe SSDs, and multiple SATA ports for additional storage expansion. The motherboard's black PCB features four DDR4 memory slots that support up to 128 GB of system memory with XMP profile compatibility. Integrated audio features include high-definition 7.1-channel sound processing, while network capabilities encompass Gigabit Ethernet and optional Wi-Fi connectivity. The board integrates robust power supply components with a multi-phase VRM design for stable processor operation under various workloads. The rear I/O panel includes USB 3.2 Gen 1 and Gen 2 ports, HDMI and DisplayPort outputs for integrated graphics, as well as audio jacks. Cooling solutions feature multiple fan connectors with smart fan control for optimized thermal management. The motherboard supports RAID configurations for data redundancy and performance enhancement. Built with durable components and protective features such as over-voltage protection and sulfur resistance, this motherboard is designed for reliable long-term operation in desktop computers, gaming systems, and workstation builds.
Mainboard features | Front panel audio connector, RGB header |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR5-RAM |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), S-ATA (4x) |
Item number | 24408429 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B760 DS3H |
Release date | 20/2/2023 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 Express |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort, HDMI Type A |
Video connection version | Display port 1.2, HDMI 2.0 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), S-ATA (4x) |
Expansion slot | PCI Express x16 (5x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x), USB-C 4 (1x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂ emissions | 2314,95 kg |
Climate contribution | EUR 9,28 |
Scope of delivery | Norton Internet Security, SATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 1510 g |
Product Safety |
Length | 34 cm |
Width | 29 cm |
Height | 8 cm |
Weight | 1.26 kg |
