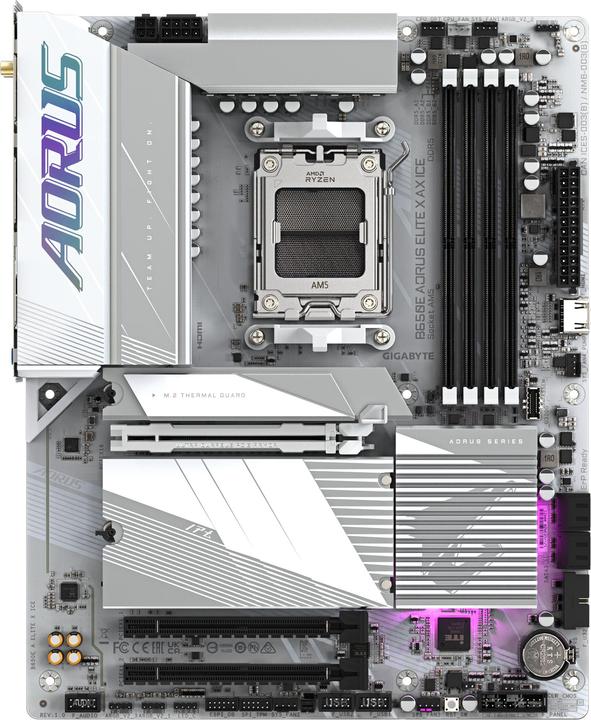

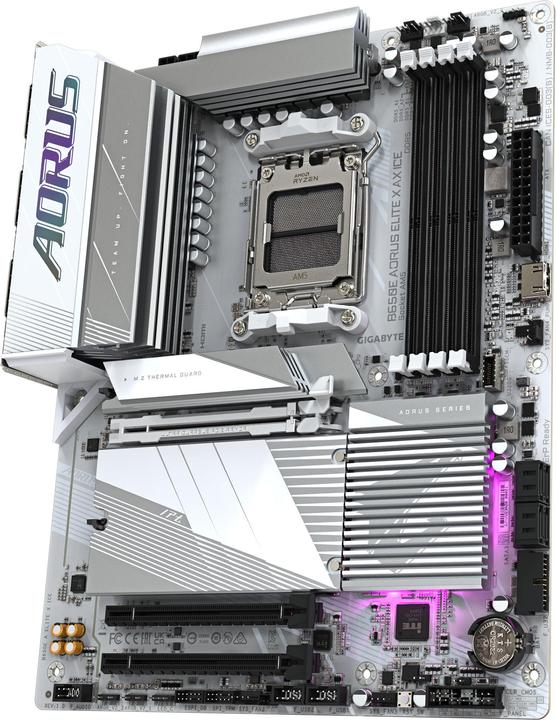

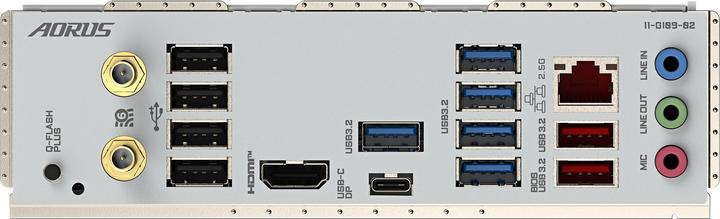

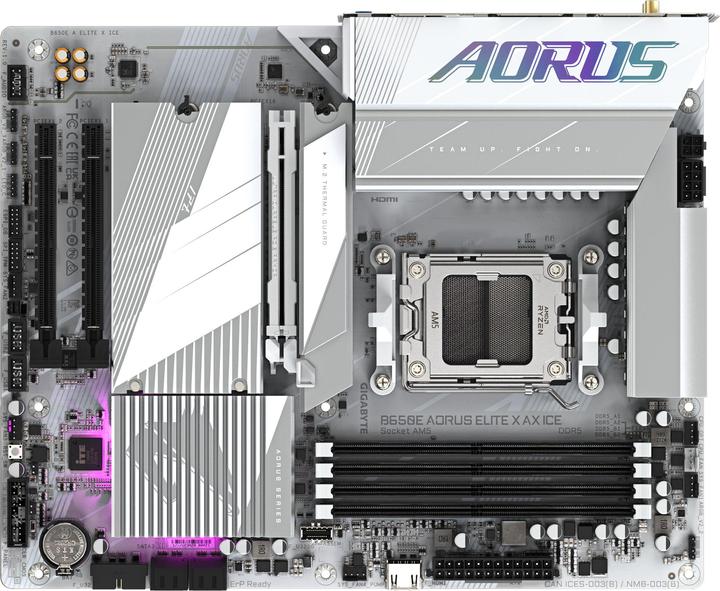

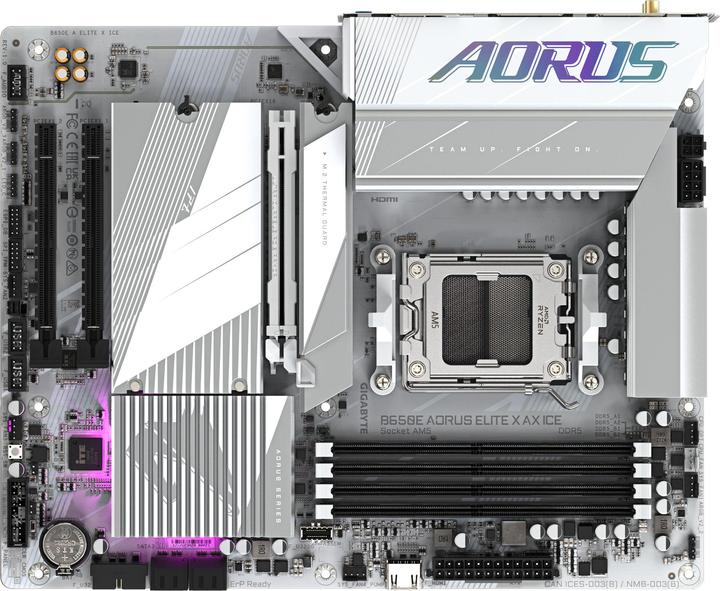

Gigabyte B650E AORUS Elite X AX ICE

AM5, AMD B650E, ATX
Price in EUR including VAT, free shipping
15Ratings
BrandMore from Gigabyte
Delivered between Wed, 18/12 and Thu, 19/12
More than 10 items ordered

Product details

AORUS B650E ELITE X AX ICE - Motherboard - ATX - Socket AM5 - AMD B650; Product type: Motherboard - ATX; Chipset: AMD B650; Processor socket: 1 x Socket AM5; Compatible processors: Ryzen (supports Ryzen
7000/8000 Series); Max. RAM size: 192 GB; Supported RAM: 4 DIMM slots - DDR5, non-ECC, unbuffered; Mass storage interfaces: 4 x SATA-600 (RAID), 3 x M.2USB/FireWire ports: 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via an internal pin header); Audio: HD Audio (8-channel); LAN: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Internal connection options
M.2 (3x),
S-ATA III (4x)
Wireless transmission
Bluetooth,
Wi-Fi
Peripheral connections
USB 2.0 Type-A (4x),
USB 3.2 Gen 1 (5x),
USB 3.2 Gen 2 (2x),
USB Type-C (1x)
Item number
41877852

General information

Manufacturer
Gigabyte Technology
Category
Motherboards
Manufacturer no.
B650E A ELITE X ICE
Release date
12.9.2024
Sales rank in Category Motherboards
13 of 4710
Maximum order quantity
14

Motherboard properties

Form factor
ATX
Processor socket
AM5
Chipset
AMD B650E
Mainboard features
Clear CMOS Button,
Front panel audio connector,
Reset button,
RGB header
Operating system compatibility
Windows 10,
Windows 11 Home
Peripheral connections
USB 2.0 Type-A (4x),
USB 3.2 Gen 1 (5x),
USB 3.2 Gen 2 (2x),
USB Type-C (1x)
BIOS type
UEFI AMI
Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b,
Wi-Fi 2 / 802.11a,
Wi-Fi 3 / 802.11g,
Wi-Fi 4 / 802.11n,
Wi-Fi 5 / 802.11ac,
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
8000 MHz
Supported memory speed
6600 MHz,
7000 MHz,
7600 MHz,
7800 MHz,
8000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered
Channel architecture
2

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
RZ616
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 (3x),
S-ATA III (4x)
Expansion slot
PCI Express x16 (3x)
Number of fan connector
4

Power supply

Power connectors
24-pin ATX,
4-pin ATX 12V,
8-pin ATX 12V

Scope of delivery

Scope of delivery
Norton Internet Security (OEM version),
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm
Weight
2190 g

Package dimensions

Length
34.30 cm
Width
27.60 cm
Height
8.80 cm
Weight
2.19 kg
