Gigabyte B650 A ELITE AX ICE
AM5, AMD B650, ATXPrice in EUR including VAT, free shipping
Currently out of stock
Product details

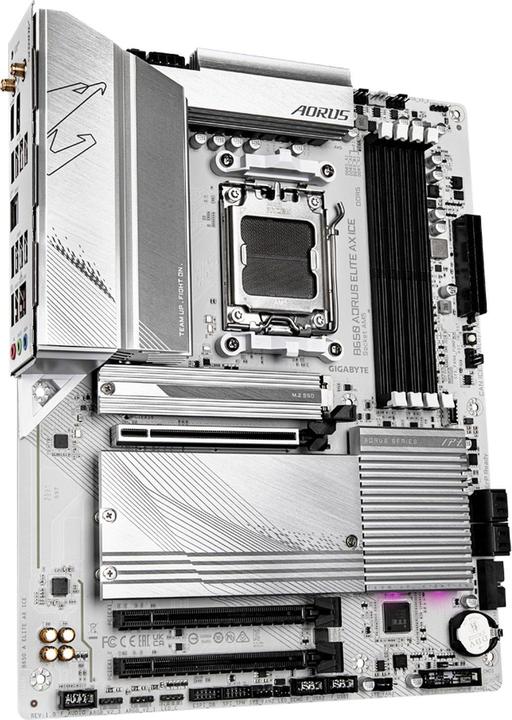

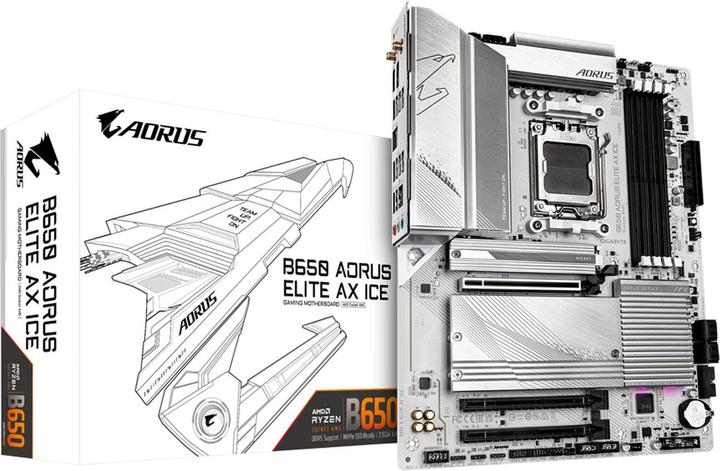

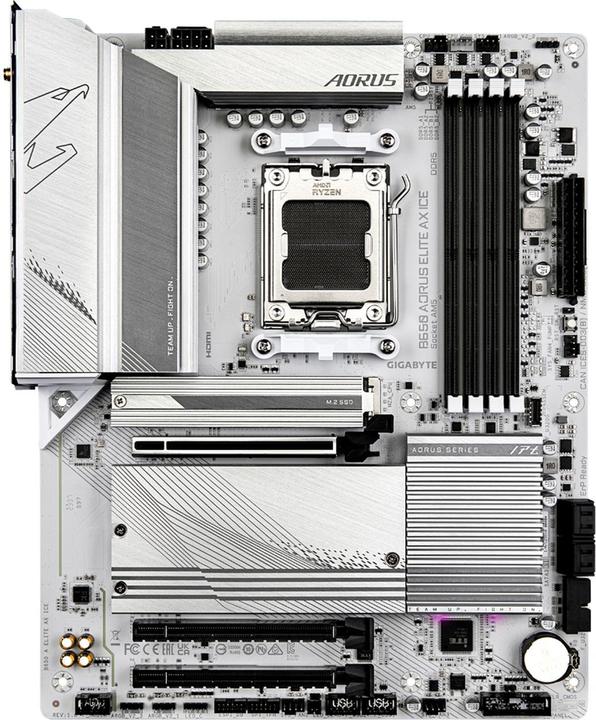

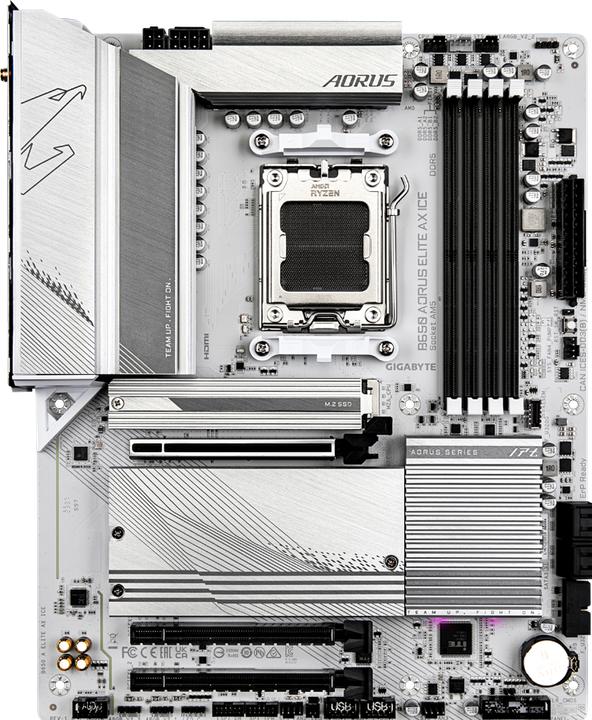

The Gigabyte B650 AORUS Elite AX ICE is equipped with the B650 chipset, which was developed for AMD's Ryzen 7000 series processors, and offers numerous functions for overclockers and gamers. As the Ryzen
7000 series processors support PCIe 5.0 and an improved power supply, the new AM5 socket (LGA 1718) is used on the 600 series motherboards. Despite the higher pin count, the socket size remains the same so that most CPU coolers are still compatible with the AM4 socket. The mainboard is optimised for overclocking so that you can play even demanding games without any problems. The voltage converters with 9 physical and 12 virtual phases deliver 60 A to ensure a stable power supply to the CPU and maintain its high clock rates over a longer period of time. The motherboard also offers functions such as BIOS Flashback and Clear CMOS to quickly restore the PC if problems occur. The DDR5 RAM can also be set to higher clock rates.
Processor family | AMD 7000 Series |
Memory type | DDR5 RAM |
Internal connection options | S-ATA III (4x), USB 2.0 Header (2x), USB 3.0 Header (1x) |
Wireless transmission | Bluetooth, Wi-Fi |

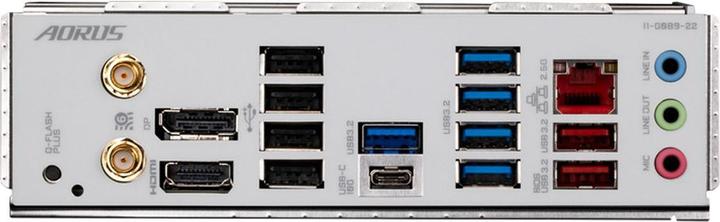

Peripheral connections | USB 2.0 Type-A (4x), USB 3.2 Gen 1 (5x), USB 3.2 Gen 2 (2x), USB Type-C (1x) |
Item number | 39630111 |
Manufacturer | |
Category | |
Manufacturer no. | B650 A ELITE AX ICE |
Release date | 31.10.2023 |
Sales rank in Category Motherboards | |
Maximum order quantity | 0 |
Form factor | ATX |
Processor socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Reset button, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 11 Home |
Peripheral connections | USB 2.0 Type-A (4x), USB 3.2 Gen 1 (5x), USB 3.2 Gen 2 (2x), USB Type-C (1x) |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | AMD 7000 Series |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Channel architecture | 2 |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8852AE |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | S-ATA III (4x), USB 2.0 Header (2x), USB 3.0 Header (1x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
Power connectors | 20+4-pin ATX, 20+8 pin ATX |
Country of origin | China |
Scope of delivery | SATA |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2330 g |
Length | 34.40 cm |
Width | 27.20 cm |
Height | 8.60 cm |
Weight | 2 kg |
