Fractal Define Mini C

mATX, Mini-ITX
38Ratings
Currently out of stock

Product details

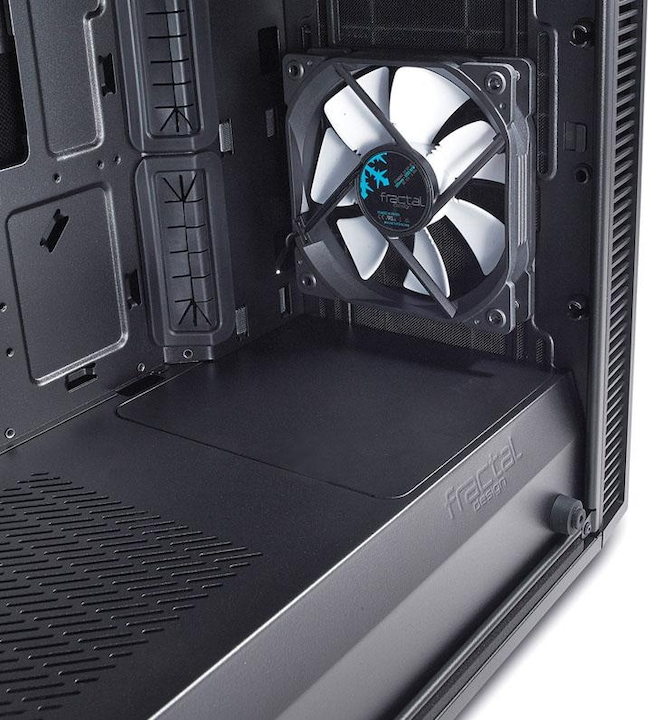

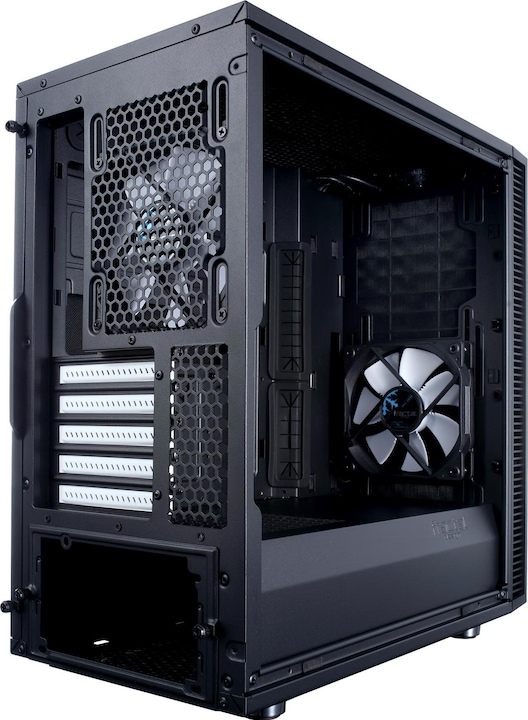

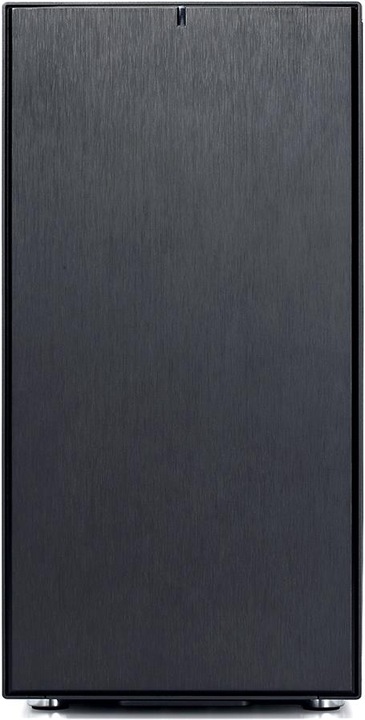

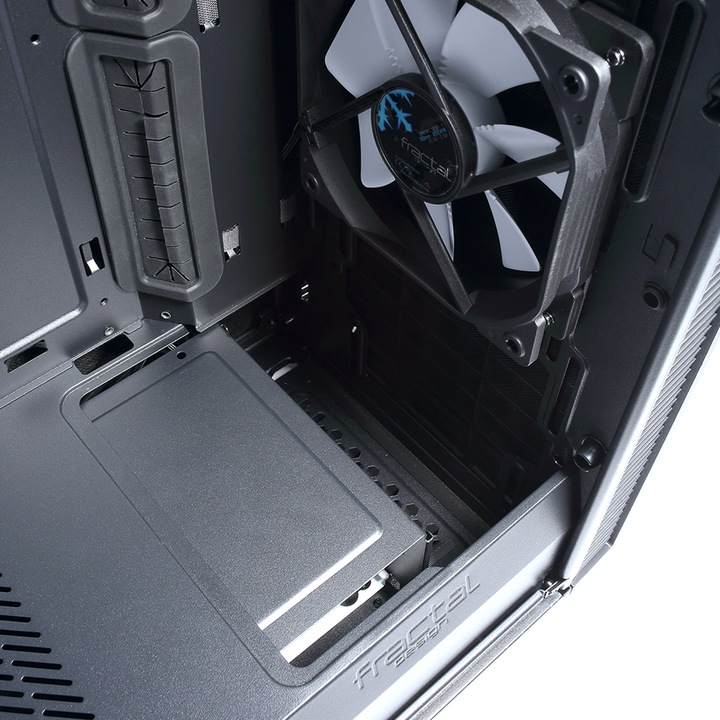

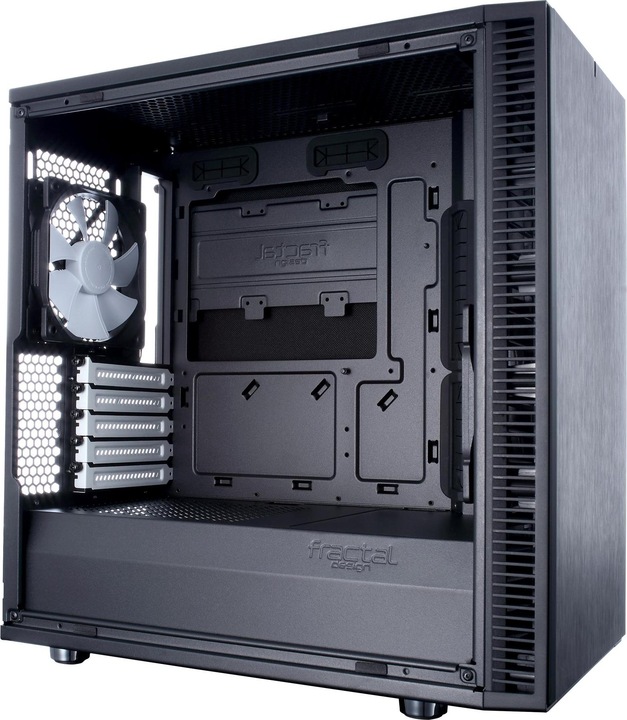

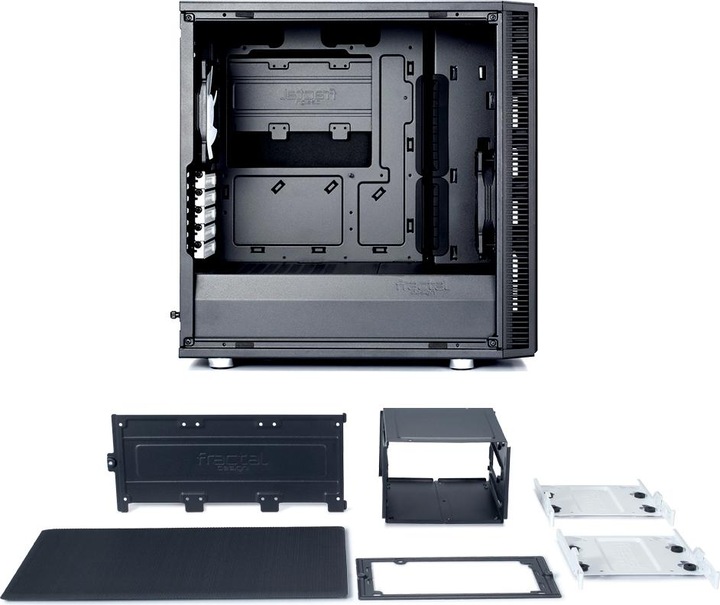

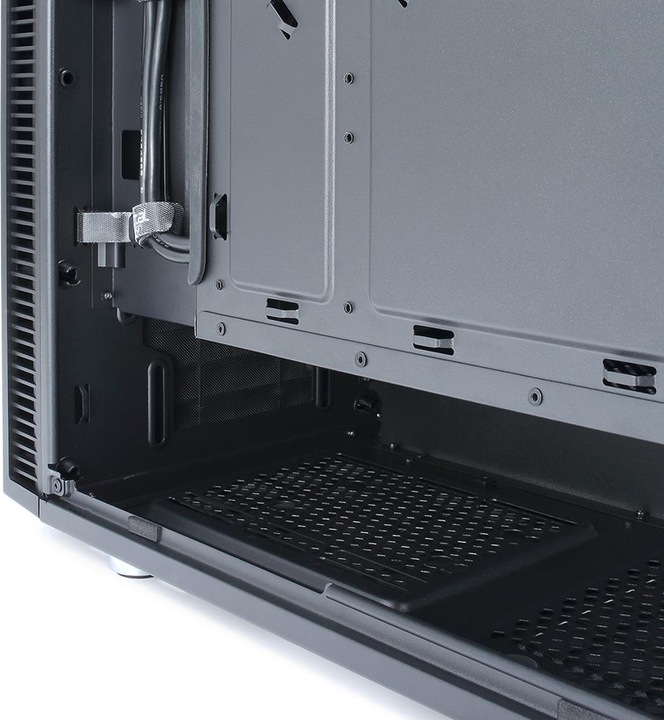

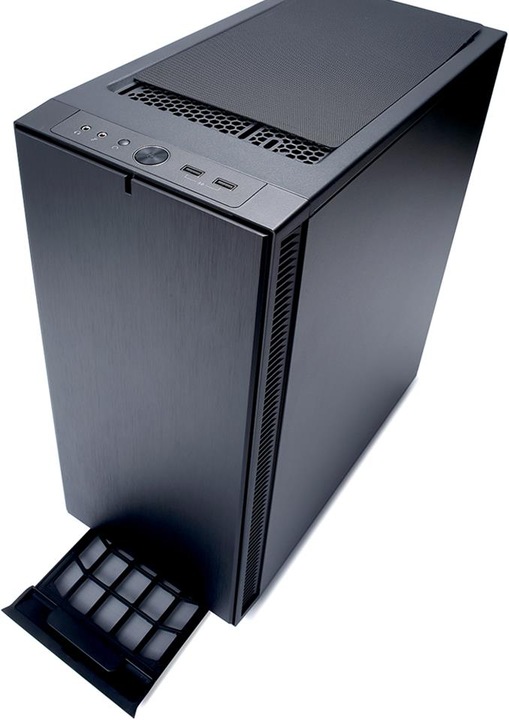

The Fractal Design Define Mini C is a Micro-ATX case that offers optimal airflow and ample space for the most popular hardware components thanks to its special design. By combining high-quality sound-dampening materials with the proven Fractal Design ModuVent technology, users can switch at any time between near-silent operation and additional cooling options. The Define Mini C comes with two Dynamic X2 Series fans, and all air openings are protected by easily cleanable dust filters that do not obstruct airflow. To provide users with an elegant, tidy system, the Define Mini C features a cover for the power supply and drive cage, creating additional space for efficient cable management.

Key specifications

PC case design
Mini Tower
Number of 3.5" drive slots (internal)
2 x
Max. length graphics card
315 mm

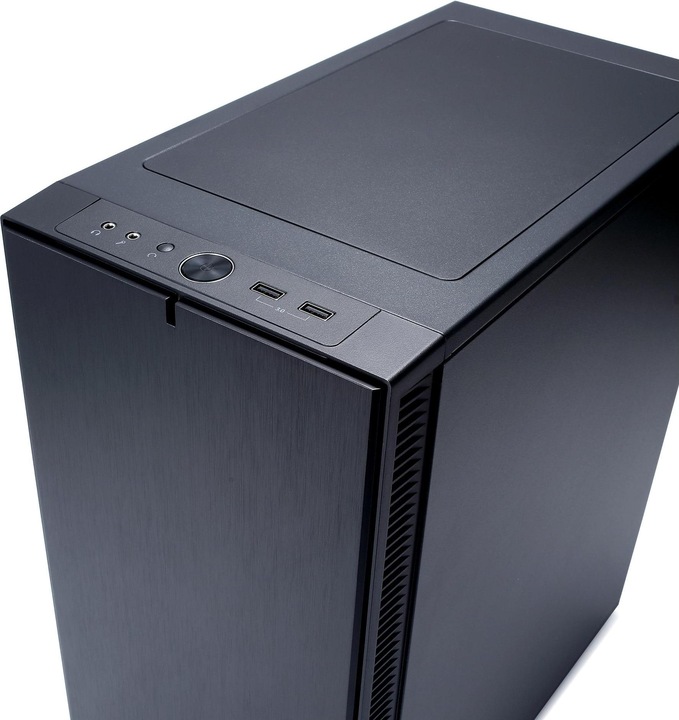

Front connectors
2x USB 3.0, Headphones, Microphone
PC case features

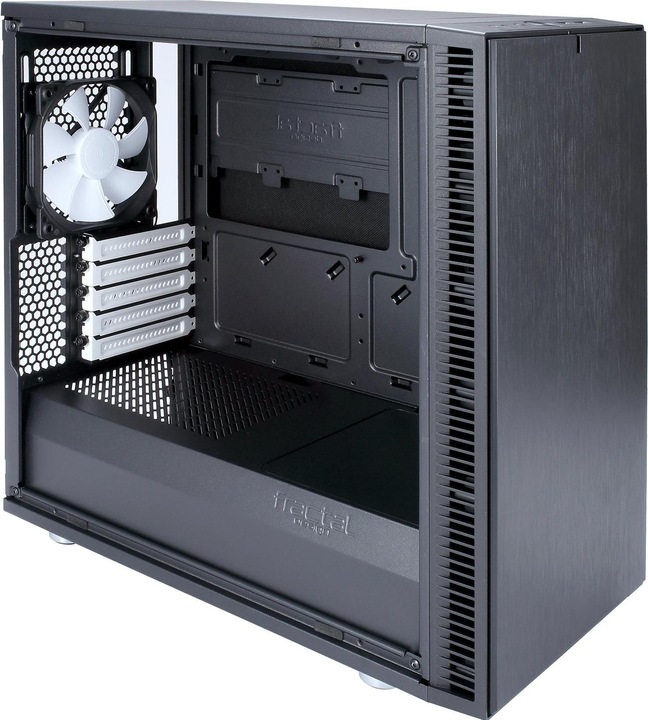

Side windows
Max. height CPU cooler
170 mm
Documents
Technical data sheet
Item number
5990460

General information

Manufacturer
Fractal
Category
PC case
Manufacturer no.
FD-CA-DEF-MINI-C-BK
Release date
20/11/2021
External links
Manufacturer's site (en)

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal, Plastic
Material
Glass, Plastic, Steel, Toughened glass

PC case properties

PC case design
Mini Tower
Form factor
Micro ATX (mATX), Mini-ITX
Number of 3.5" drive slots (external)
2 x
Number of 3.5" drive slots (internal)
2 x
"Number of 2.5""/3.5"" combination slots"
3 x
"Number of 2.5"" drive slots"
3 x
Number of expansion card slots
5 x
Max. length graphics card
315 mm
Max. height CPU cooler
170 mm
Max length of power supply
175 mm
PC case features
Side windows

Connections

Front connectors
2x USB 3.0, Headphones, Microphone

Cooling properties

Number of fans
2 x
Number of fan slots
6 x
Fan location
Bottom side, Front side, Rear side, Top side
Connectable fans (control)
6
Number of radiator mounts
3
Radiator locations
Front side, Rear side, Top side
Cooling properties
Water cooling possible

Front side

Fans included
1x 120mm
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x max. 240mm, 1x max. 280mm

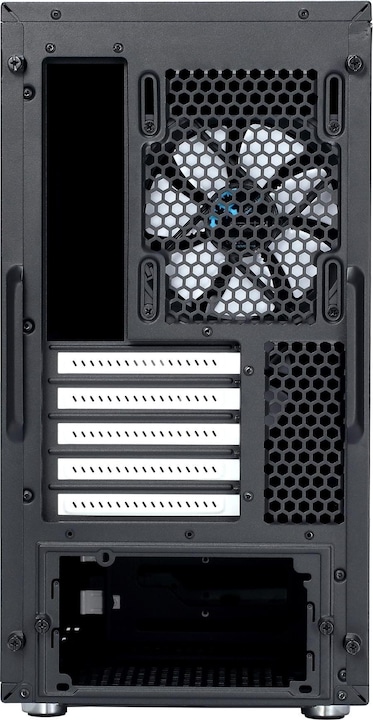

Rear side

Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Bottom side

Fans included
Optional fan
Fan mount locations
1x 120mm
Radiator mount locations
No mounting possible

Top side

Fans included
Optional fan
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x max. 240mm

HDD Cage

Fan mount locations
1x 120mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
39.90 cm
Length
39.90 cm
Width
21 cm
Weight
6.90 kg

Package dimensions

Length
49.50 cm
Width
48.50 cm
Height
29.50 cm
Weight
8.06 kg
