With the EX-1182VIS-2, you can expand a USB 3.2 Gen 1 output (previously 3.0 or 3.1 Gen 1) of a notebook or desktop computer with three additional USB 3.2 Gen 1 ports and one USB 2.0 port, featuring 15KV ESD overvoltage protection and 3KV isolation. Up to four external USB peripherals can be connected to a USB 3.2 Gen 1 port of a notebook, desktop computer, or server. The included EX-K1551V cable can be attached to the EX-1182VIS-2 without a screwdriver using thumb screws. The EX-1182VIS-2 can be mounted on a DIN rail in a 19” rack, on the wall, or under a table.

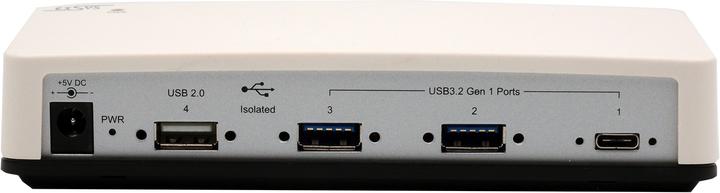

USB 3.2 Gen 1 HUB with three USB 3.2 Gen 1 and one USB 2.0 downstream port. 3KV isolation between upstream and all downstream ports. 15KV ESD overvoltage protection for each port. Power supply: 5V/4A DC socket with plug-in power supply. Power can also be supplied via USB-BUS +5V (Bus-Power). 900mA power available at all three USB 3.2 Gen 1 ports. 500mA at the USB 2.0 port. Supports Battery Charging v1.2 (CDP, DBP). Sturdy plastic housing. 1x LED voltage indicator. Chipset: Genesys GL3523.

Note: USB 2.0/1.1 is not supported by the USB 3.2 Gen 1 ports.

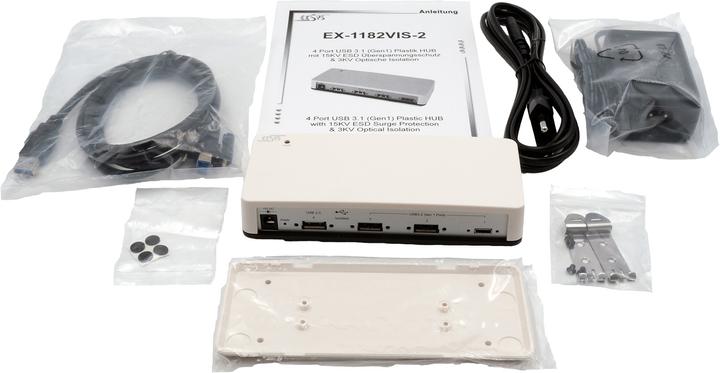

Included in the package: EX-1182VIS, 5V/4A power supply, 1.5 m USB 3.2 Gen 1 cable, DIN rail kit, wall mounting bracket, manual.
