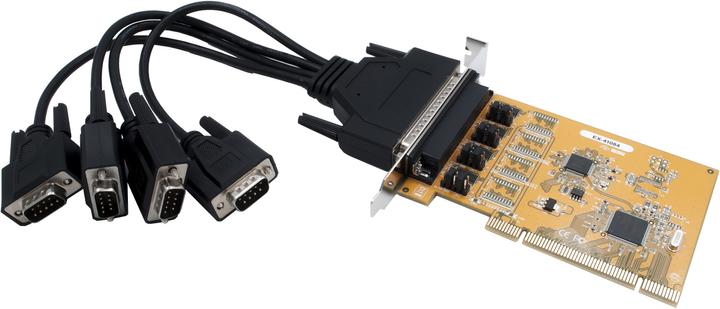

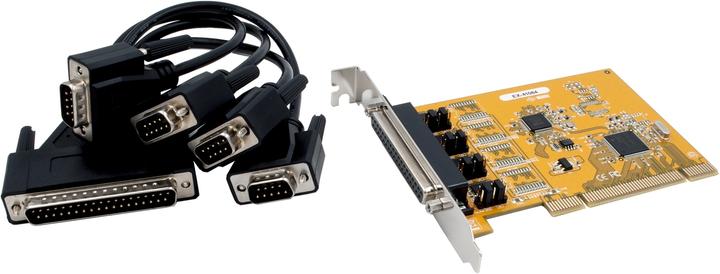

The EX-41084 PCI I/O card provides four serial RS-232 High Performance UART 16C550 outputs. It is designed to expand four additional serial ports for PCs, workstations, or servers via the PCI or PCI-X bus. +5V and +12V can be configured on pins 1 and 9 of the serial connector as a POS system (Power over System). The card is fully Plug-and-Play compatible. The octopus cable is included. The mounting screws for the four 9-pin connectors can be replaced with the provided screw nuts.

Interface: RS-232 V.24
±15kV IEC1000-4-2 ESD protection for RS232 I/Os
FIFO buffer 16C550 with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, and 2
Parity: none, even, odd, space, and mark
RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

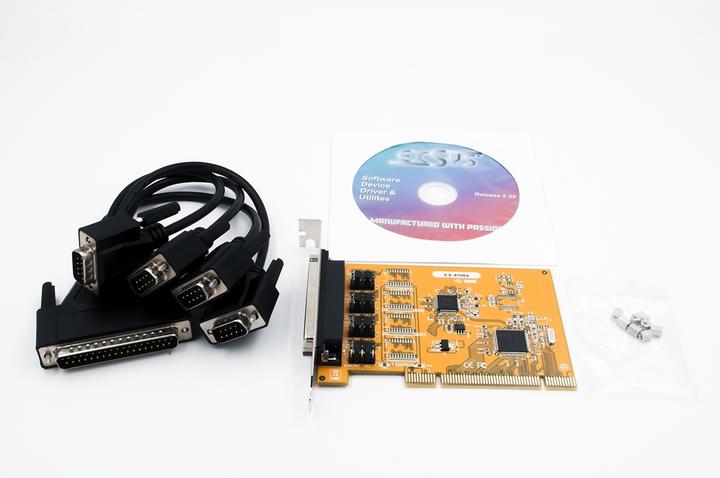

Included in delivery:
EX-41084, octopus cable, 8x nuts, driver CD, manual.
