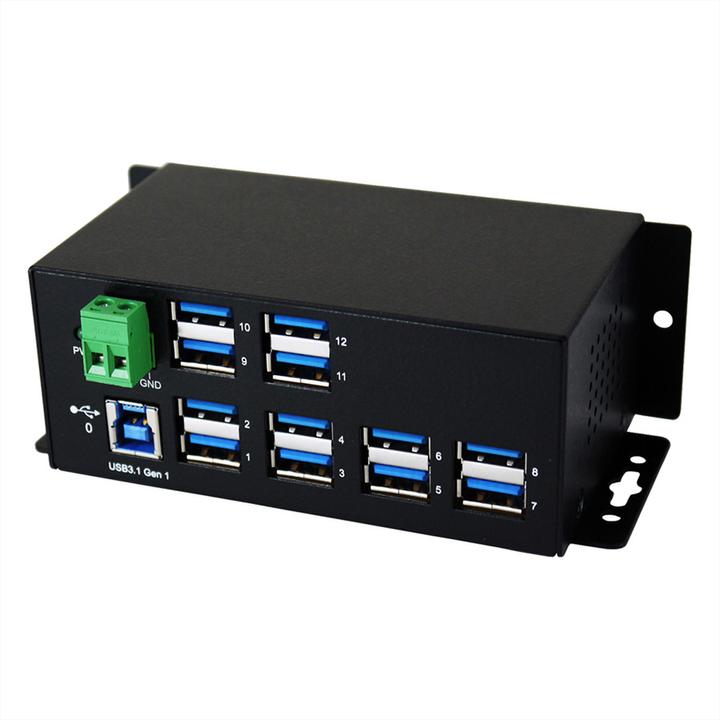

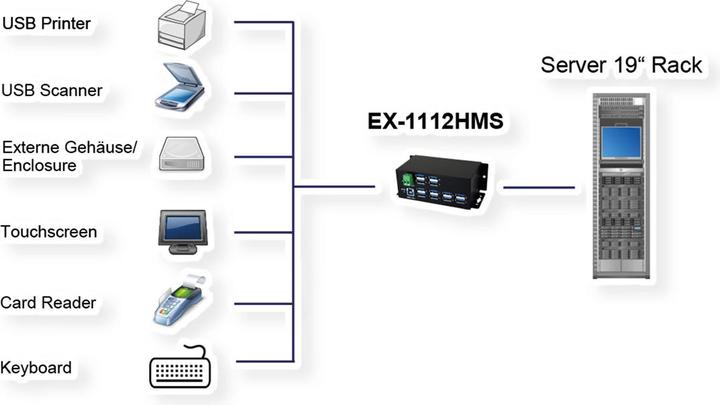

The robust, industrial-grade EX-1112HMS hub provides twelve USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. This allows for the connection of up to twelve external USB peripherals to a USB 3.2 Gen 1 port from a computer in a 19" rack. It supports the SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5 Gbit/s and is backward compatible with USB 1.1. The EX-1112HMS can be powered via USB bus power or through a two-wire terminal block connection (self-power). In self-power mode, 900 mA can be provided at each USB port. The hub meets the specific requirements of industrial applications.

USB 3.2 Gen 1 metal hub with 12 ports
15KV ESD surge protection for all 12 ports
Protection of devices against voltage fluctuations
Power supply +7V to +24V DC via terminal block
Power supply also optionally from USB bus +5V (bus power)

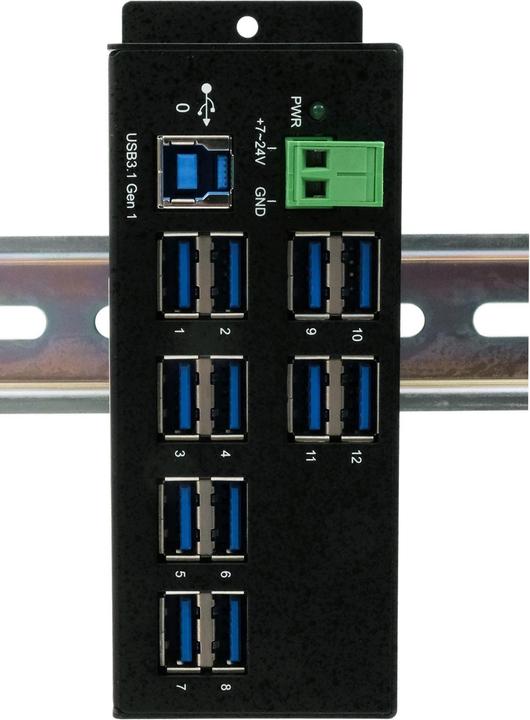

Easy installation with included DIN rail mounting kit
Automatic detection of data transfer rate for connected peripherals
Simultaneously supports 900 mA power for each output
Automatic detection of input polarity at the power terminal block
Robust metal housing
1x LED voltage indicator

Internal jumper for individual control of power supply:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (self power)

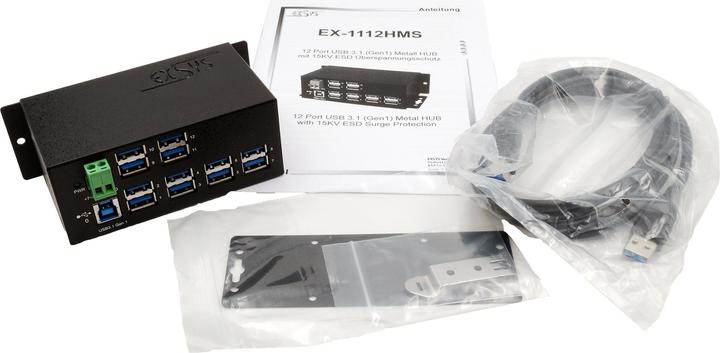

Package contents:
EX-1112HMS, USB 3.2 Gen 1 cable, DIN rail kit, wall mounting bracket, manual.
