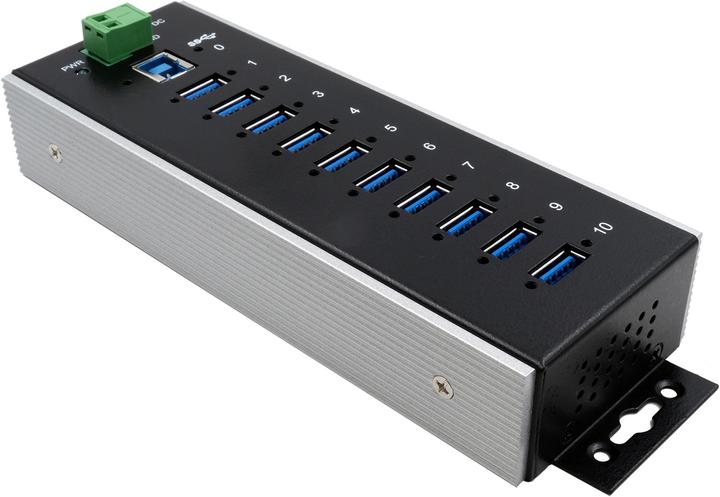

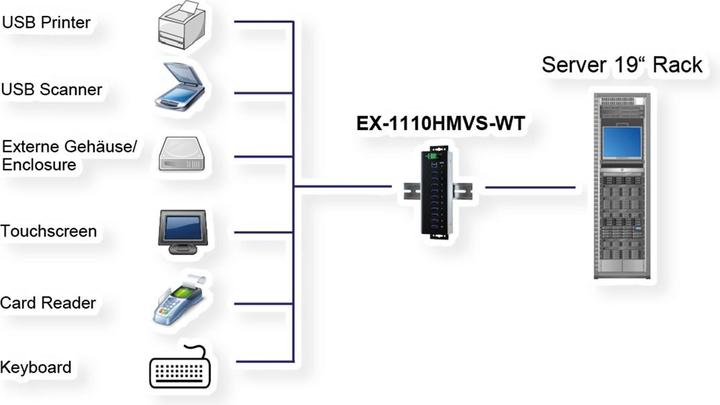

The robust, industrial-grade EX-1110HMVS-WT provides ten screwable USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection, allowing up to ten external USB peripherals to be connected to a USB 3.2 Gen 1 port on a computer in a 19" rack. With SuperSpeed USB 3.2 Gen 1, it supports a maximum data transfer rate of up to 5 Gbit/s and is backward compatible with USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1110HMVS-WT without tools using knurled screws. Power is supplied via a two-wire connection at the terminal block (+7V to +24V) or USB bus power. The EX-1110HMVS-WT has been specifically designed for use in an extended temperature range of -40°C to 85°C and meets the special requirements of industrial applications.

USB 3.2 Gen 1 Metal HUB with 10 Ports
15KV ESD surge protection for all 10 ports
Protection of end devices against voltage fluctuations
Power supply +7V to +24V DC via terminal block
Optional power supply from USB bus +5V (Bus-Power)

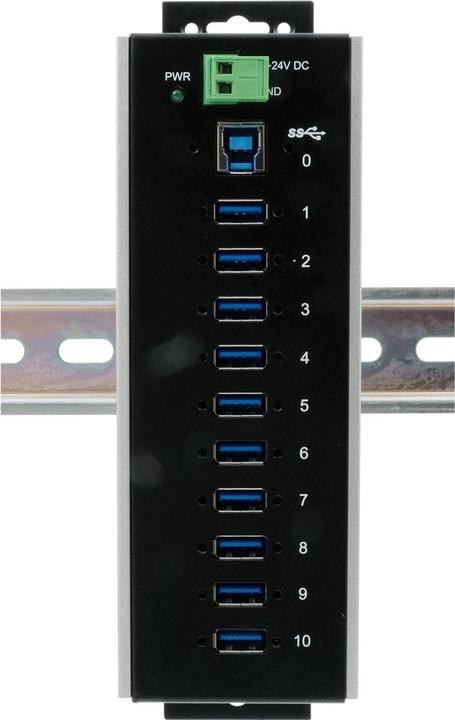

Easy installation with included DIN rail mounting bracket
Automatic detection of data transfer rates for connected peripherals
Simultaneously supports 1.5A power for each output
Supports battery charging BC v1.2: SDP/CDP/DCP mode
Automatic detection of input polarity at the power terminal block
Robust metal housing with an extended temperature range of -40°C to 85°C
1x LED voltage indicator

Internal jumper for individual control of power supply:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (Self Power)

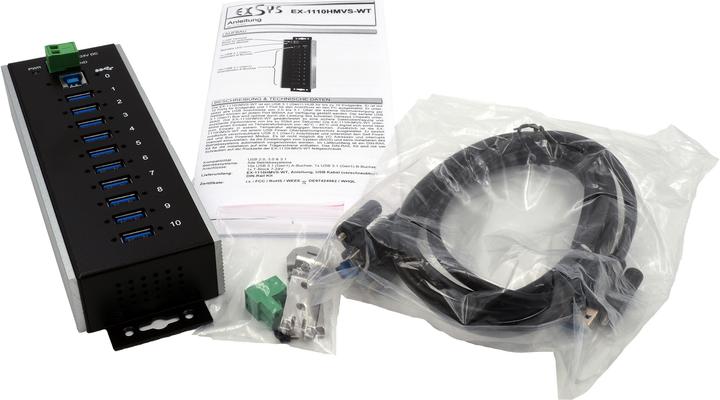

Package contents:
EX-1110HMVS-WT, USB 3.2 Gen 1 cable, DIN rail kit, manual.
