RDM capable DMX splitter 1in/2out with signal conditioning

• DMX splitter for splitting one DMX input signal to 2 DMX outputs

• Connections: 1 x DMX input, 2 x DMX output

• Supports RDM for bidirectional communication via DMX line

• Switchable filter mode to filter out RDM data prevents problems when operating with devices without RDM support

• Bypass function for trouble-free processing of DMX-like signals from older devices

• Output frequency selectable: 22/44 Hz

• DMX failure mode selectable: Hold, Blackout, Zero

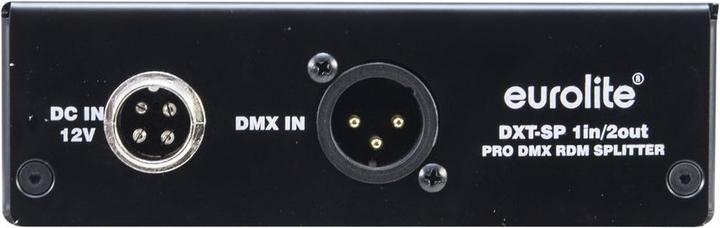

• Input and outputs XLR 3-pin (Neutrik)

• Outputs galvanically isolated

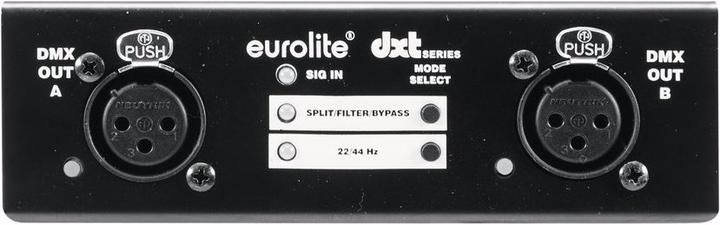

• Each DMX output with independent driver and status display

• Each DMX output can be reconnected to up to 32 DMX devices

• Power supply via included plug-in power supply unit

• Rack mounting via separately available cover (item 70064872)

• DMX failure mode (hold, blackout, zero)

DMX forwarding for up to 32 additional DMX devices
RDM capable, for bidirectional communication over the DMX line
RDM switchable, to avoid problems when operating with devices without RDM

• Made in Germany.
