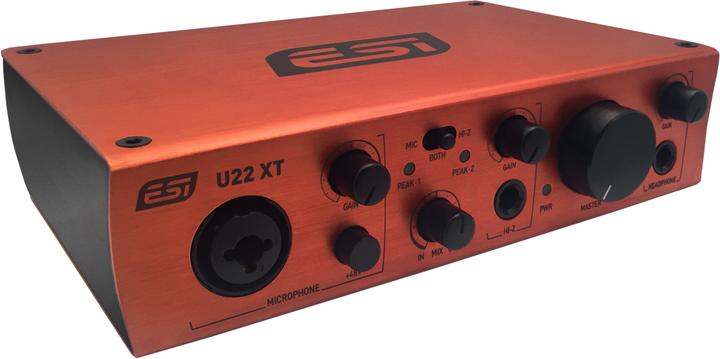

ESI Audiotechnik U22 Xt

USB
Currently out of stock
Free shipping starting at 39,–

Product details

USB 2.0 audio interface with 2 inputs and 2 outputs | line, instrument and microphone input | microphone preamplifier with +48V phantom power | line output with master volume control | adjustable headphone output | power supply via USB | max. 24-bit / 96kHz | line input with RCA connector | line output with balanced 6th input/output | line output with balanced 6th input/output3mm jacks | headphone output 6.3mm jack | A/D converter with 102dB(a) dynamic range | D/A converter with 108dB(a) dynamic range | input and output monitor jump adjustable via front panel | master volume control on front panel | supports Windows Vista, Windows 7, Windows 8 / 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound including DirectWIRE support | supports Mac OS X (10.7 and higher) via Apple's native CoreAudio USB audio drivers (no driver installation required, Mac Control Panel available) | supports many Linux distributions via USB Audio Class support from ALSA | Deckadance LE license (from Stanton) included | Bitwig 8-track digital audio workstation software included | dimensions: approx. 17.5cm x 12.0cm x 4.5cm

Key specifications

Connection type
USB
Number of inputs
2
Documents
Manual.pdf
Item number
6145579

General information

Manufacturer
ESI Audiotechnik
Category
Audio interfaces
Manufacturer no.
U22XT
Release date
17/8/2017

Colour

Colour
Red
Exact colour description
Red

Interface properties

Connection type
USB
Number of inputs
2
Interface Equipment
Guitar/Bass InputMicrophone inputPhantom Power Supply
Sample rate
96 kHz
Audio resolution
24 bits

Connections

Audio inputs
6.3 mm jack (1x)Stereo Cinch RCA (1x)XLR/6.3mm combo (1x)
Audio outputs
6.3 mm stereo pair (1x)Headphones Out (1x)
USB ports
USB-B
Exact USB ports
USB-B 2.0 (1x)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
USB cable
included software
Bitwig 8 Track

Product dimensions

Width
175 mm
Depth
120 mm
Height
45 mm
Weight
760 g

Legal Notice

Product Safety

Package dimensions

Length
23.20 cm
Width
15 cm
Height
8.50 cm
Weight
750 g
